Высококачественный белый двухдиапазонный усилитель мобильного телефона Gsm900 3g2100 для дома и офиса
Цена
¥276.50 - ¥346.87 / ≈ 3 341 ₽ – 4 191 ₽
MOQ: 1 pcs
1шт - ¥346.87 |100шт - ¥311.68 |500шт - ¥276.50
Продавец
深圳市益源盈电子有限公司
Рейтинг
0
Продано
0
Всего
В наличии
1
SKU суммарно
Offer ID: 999964901853
Статистика продавца
4.0
Сервис
Источник: API 1688
2.5
Логистика
Источник: API 1688
5.0
Споры
Источник: API 1688
1.6
Оформление
Источник: API 1688
4.0
Консультация
Источник: API 1688
30%
Повторные покупки
Источник: API 1688
3.6
Постпродажное
Источник: API 1688
5%
Возврат по качеству (30д)
Источник: API 1688
Свойства товара
Происхождение Guangdong, China
Нужно ли импортировать No
Обработка и настройка No
Бренд YYY
Модель Gsm900
Рабочий блок питания ≥ 27dbm, ac 110/220v dc12v/2a
Размер 29cmx18.5cmx5cm
Вес 2.5 kg
Описание товара
Specification
Model | Display Dual-band GSM900/3G2100 2G/3G cell phone booster |
Frequency | GSM900: up link 980-915MHz down link：935-960MHz 3G/WCDMA: up link 1920-1990MHz down link:2110-2180MHz |
Power | ≥ 27dBm |
Gain | 60±3DB |
Max Output Power | 23dBm/±3DBM Total power |
Impedance | 50Ω |
Seclusion | <70dB |
Connector Type | N-F |
Compact Design | Indoor Use |
Operating Temperature | -10℃-60℃ |
Power Supply | AC 110/220V DC12V/2A |
Coverage Area | 1000m2 |
Dimension | 29cm×18.5cm×5cm |
Package size | 36.5cm×22cm×12cm |
Package weight | 2.5kg |

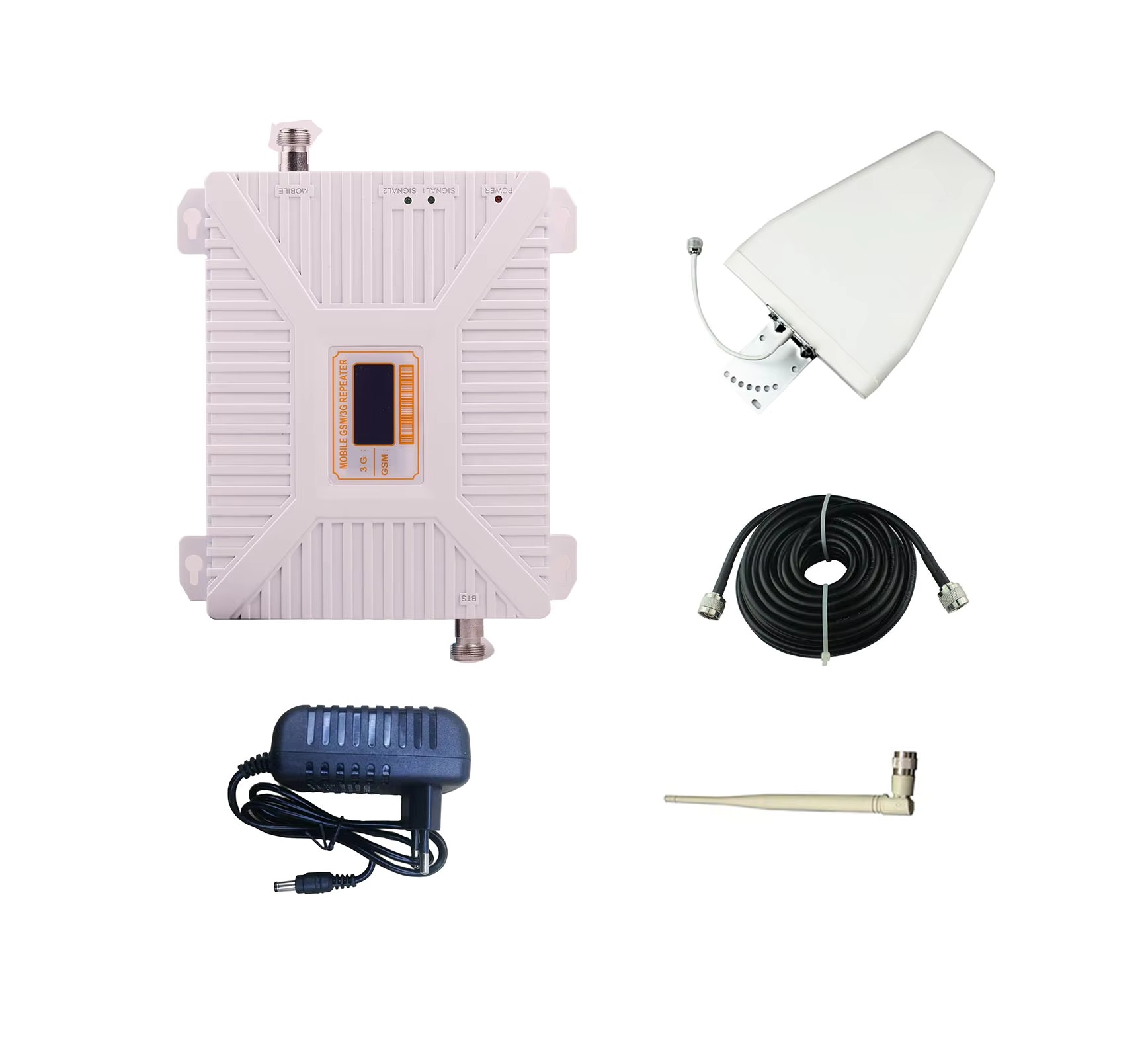

Package | White 900/3G 1pcs Outdoor antenna 1pcs Mini antenna 1pcs Cable 10 meters 1pcs Adapter 1pcs |
Installation Method
1. Find the strongest direction and position of the received signal for mobi at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket.
3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket.
4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed.
5. After defining the indoor antenna installation position, fix the antenna.
6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
Product Description
