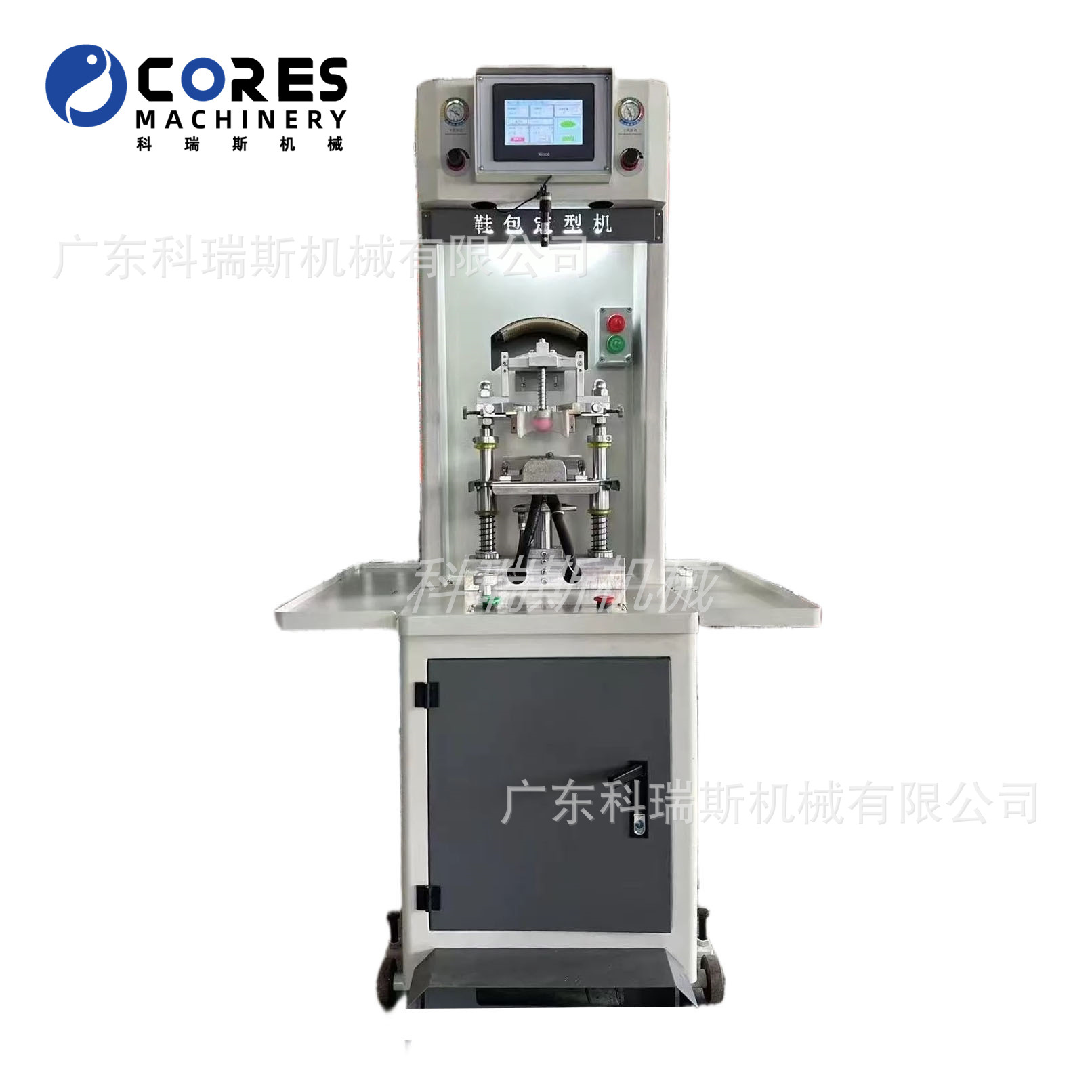

Машина для формовки носка с одним рабочим местом горячей и холодной формовки
Offer ID: 998164419370
Статистика продавца
Свойства товара
Описание товара
| 参数项目 | Item | Data |
| 电压 | Voltage | 220V, 50/60Hz |
| 功率 | Power | 1.5 KW |
| 气压 |
Air pressure | 0.6 Mpa |
| 机器尺寸 |
Machine Dimension | 1000*780*1830mm |
| 包装尺寸 |
Package Dimension | 1100*900*2000mm |
| 机器重量 |
N.W. | 150 KG |
| 包装重量 | G.W. | 200 KG |
| 产量 | Output | 700pairs/8H |
机器用途及特点:
1台热成型和1台冷成型鞋头定型机
1. 热成型温度、行程和蒸汽量均可任意调节，与鞋面软化操作完全匹配。
2. 鞋头成型冷模采用冷模密封和循环冷却方式，冷却效果快，分布均匀，换模迅速，节省时间。
3. 本机配备下拉翻转定位装置，可精确调节油缸速度和鞋面下拉位置。
4. 适用于男女鞋、运动鞋、工作鞋，尤其适用于大码鞋和外翻鞋。
5. 本机采用PLC电脑控制，操作简便，经济实惠。
Application & Features:

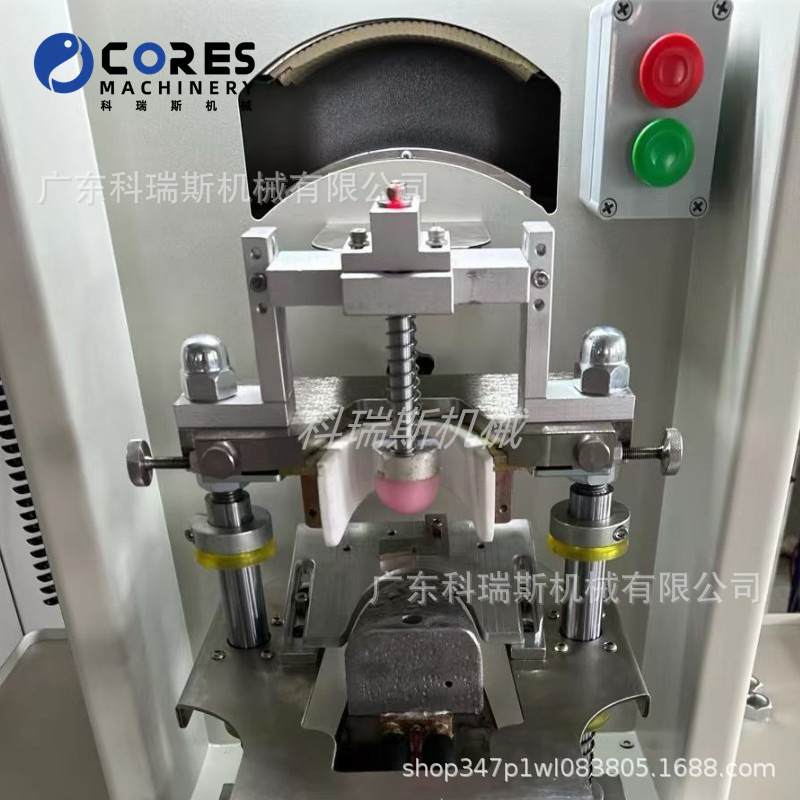

1 Heat and 1 Cold Toe Part Moulding Machine
1. The hot stamping temperature, stroke and steam can be adjusted arbitrarily, fully matching the softening operation of the upper.
2. The toe shaping cold mold adopts cold-to-mold sealing and circulating cooling, the cooling effect is fast, the distribution is even, and the mold change quickly saves time.
3. This machine is equipped with a pull-down and overturning positioning device,which can precisely adjust the cylinder speed and the pull-down position of the upper.
4. It is suitable for men's and women's shoes and sports shoes, work shoes, especially for big shoes and valgus shoes.
5. The Machine is operated by PLC computer, which is simple, convenient and economical.
