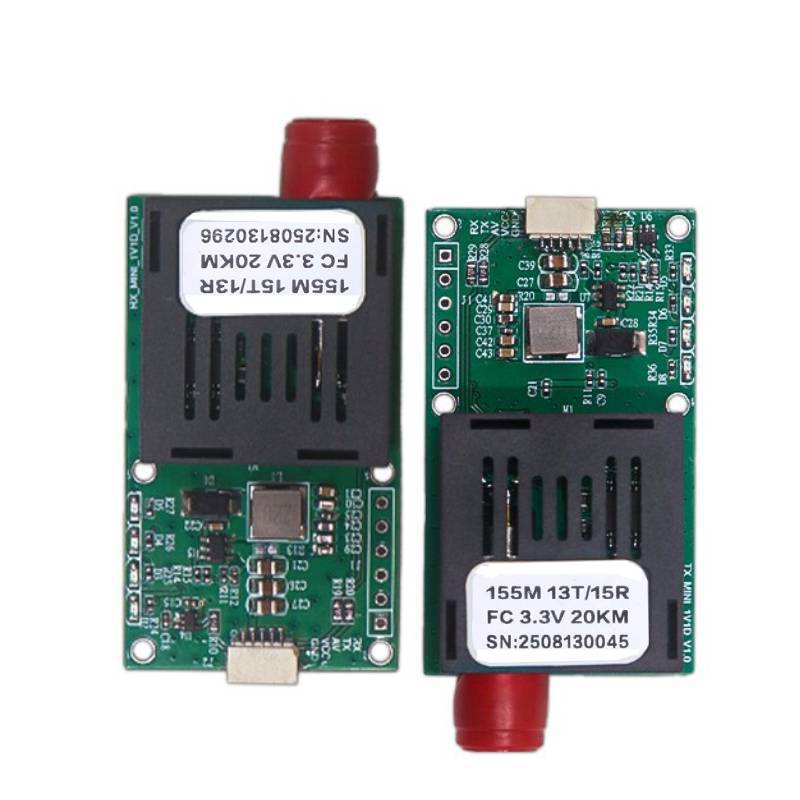

Ttl оптический трансивер 1-канальный видео на волоконно-оптический UART для БПЛА, терминал Sky-Ground, встроенный, 20 км
Offer ID: 993199802366
Оформить заказ
| Изображение | Цвет | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|

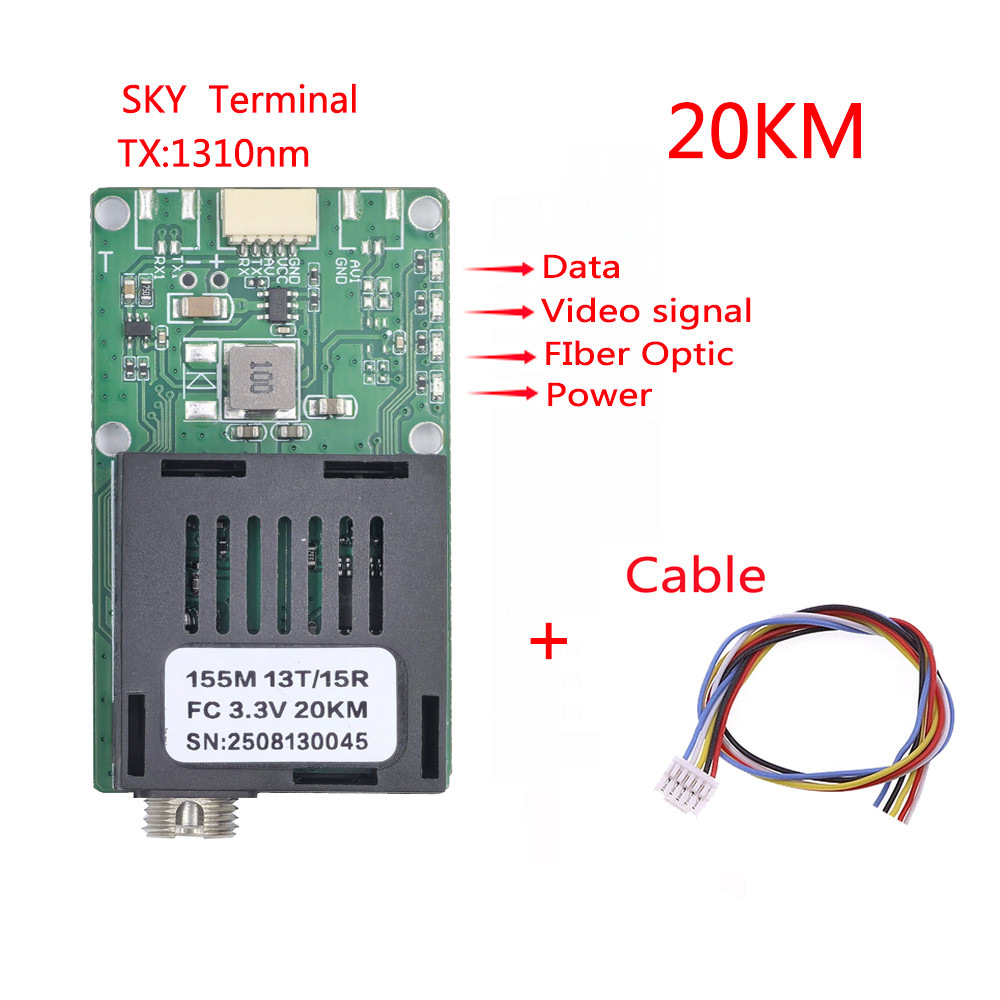

 | Sky end-1310nm-20km line addition | ¥70.0 / ≈ 852 ₽ | 200 | 5968978304331 | |
 | Ground end 1550nm-20km line addition | ¥70.0 / ≈ 852 ₽ | 200 | 5968978304333 | |

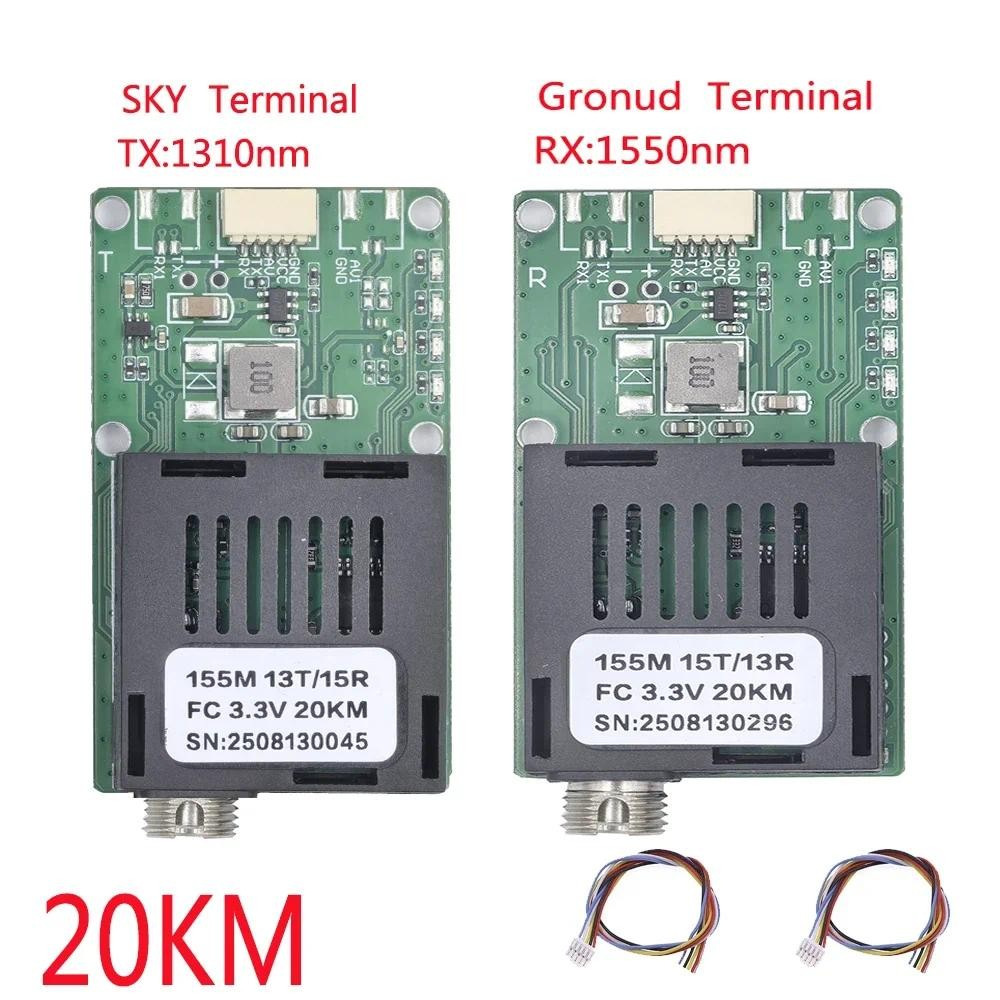

 | 1 pair of 1310nm+1550nm-20km plus line | ¥140.0 / ≈ 1 704 ₽ | 200 | 5968978304334 | |
 | Sky end-1310nm-60km line addition | ¥140.0 / ≈ 1 704 ₽ | 200 | 5968978304332 | |
 | Ground end 1550nm-60km line addition | ¥140.0 / ≈ 1 704 ₽ | 200 | 5968978304330 | |
 | 1 supporting dedicated line | ¥3.0 / ≈ 37 ₽ | 500 | 5980794188751 |
Статистика продавца
Свойства товара
Описание товара
产品参数
Product Parameters

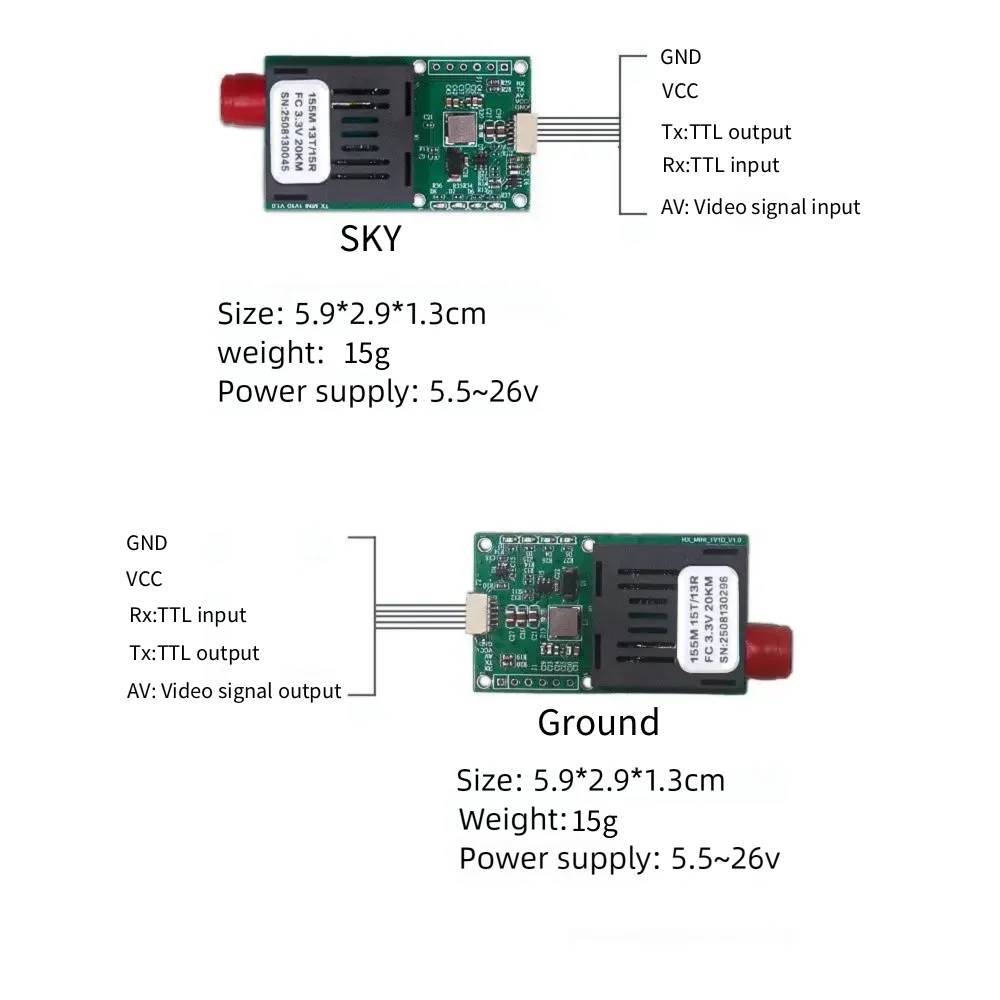

PIN-5连接说明
Feature:
1. This video over fiber system is used to send cvbs analog Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters
3. Support camera type: cvbs analog camera.
4. Video format compatible for PAL, NTSC, SECAM
5. Mean Time between failures, More than 100,000 hours
6. Plug and play, no need to set up.
Purpose:
The main purpose is to convert video signals into optical signals and transmit them through optical fibers. It can encode and convert the collected images or video signals into optoelectronic signals, transmit them to a remote decoder through optical fibers, and then present high-definition video images after decoding and processing
Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~200meters

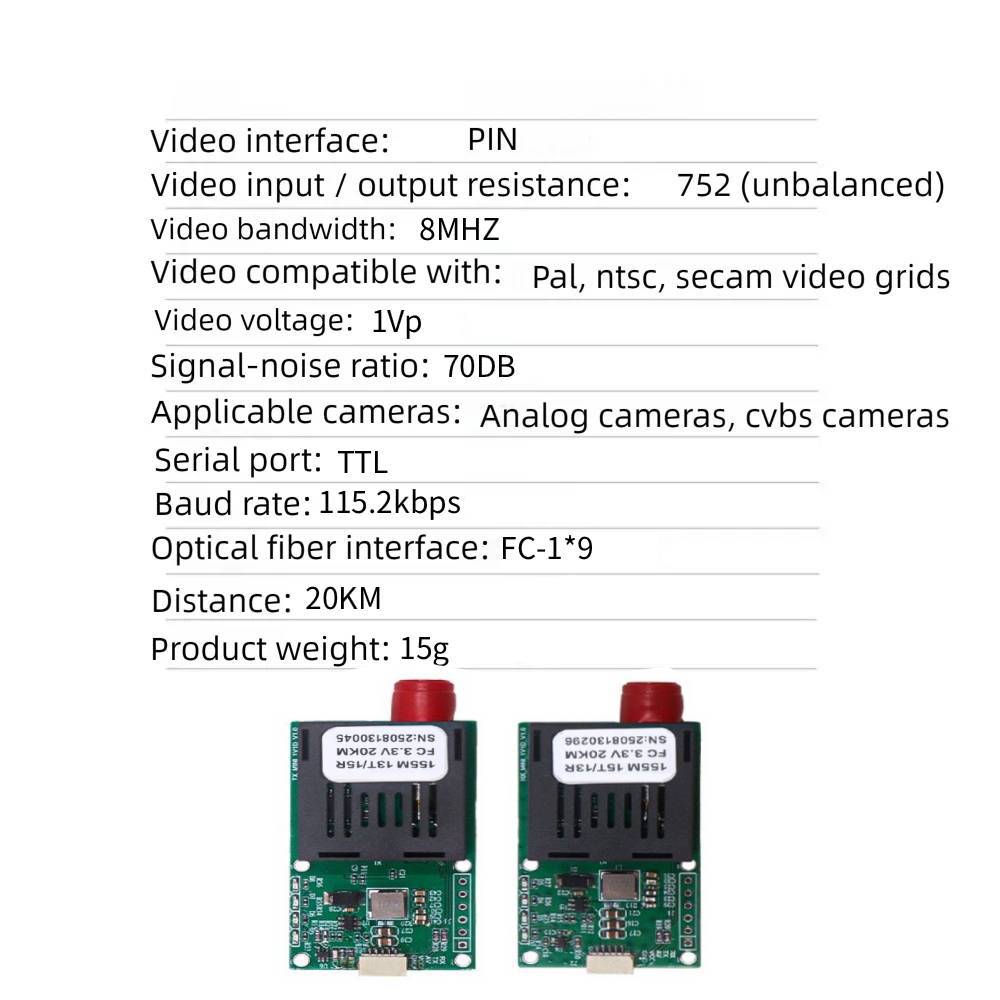

Video Index:
Video : 1 channel
Video Interface: PIN-5
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
TTL speed:
Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Product weight: about 15g/pcs
Package Include:
1 x TX PC Board
1 x RX PC Board
