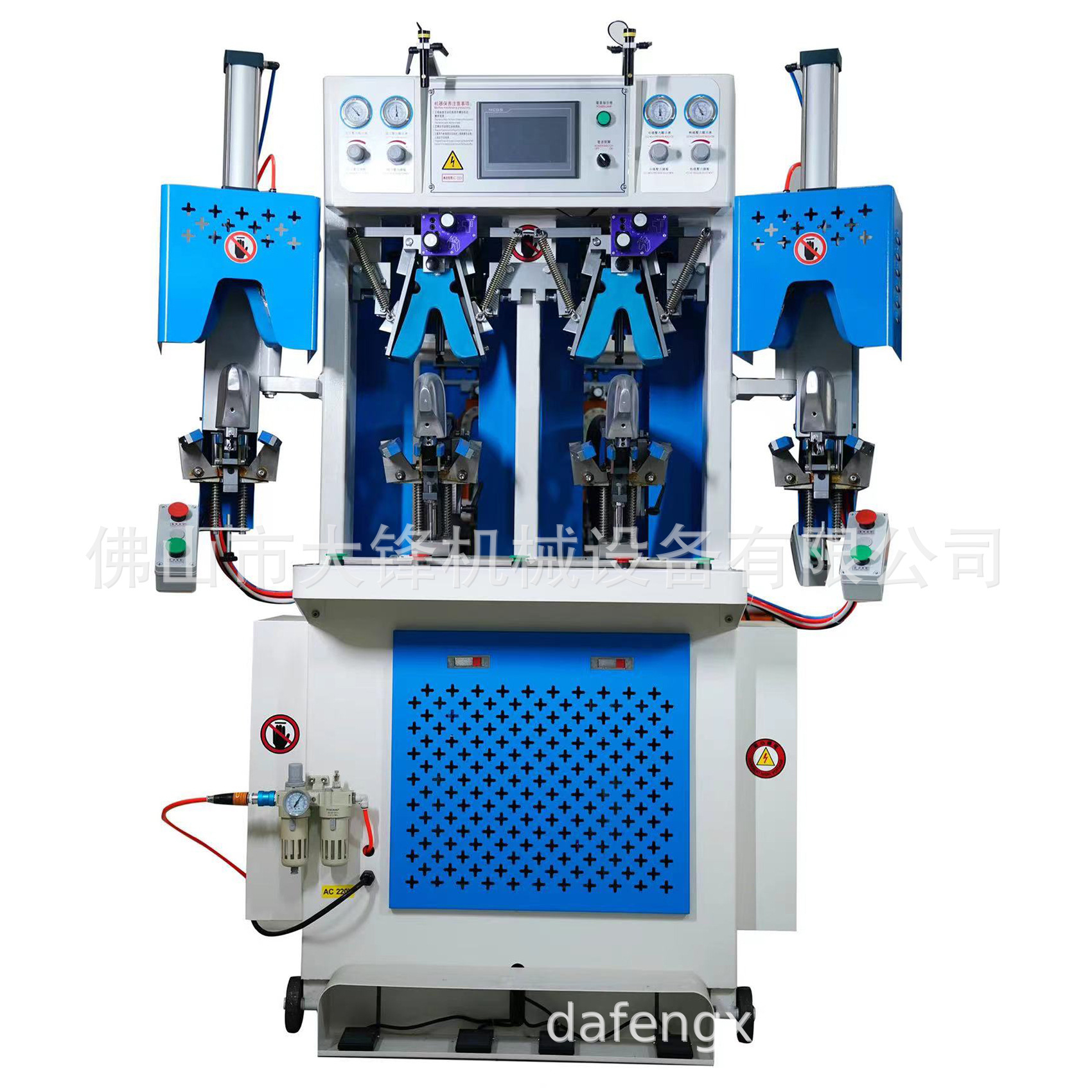

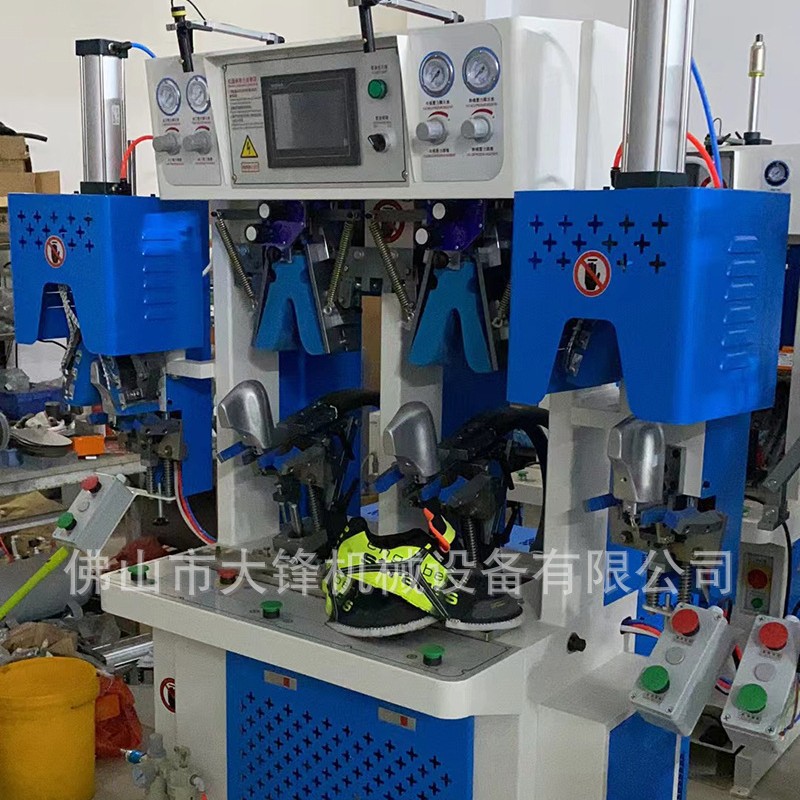

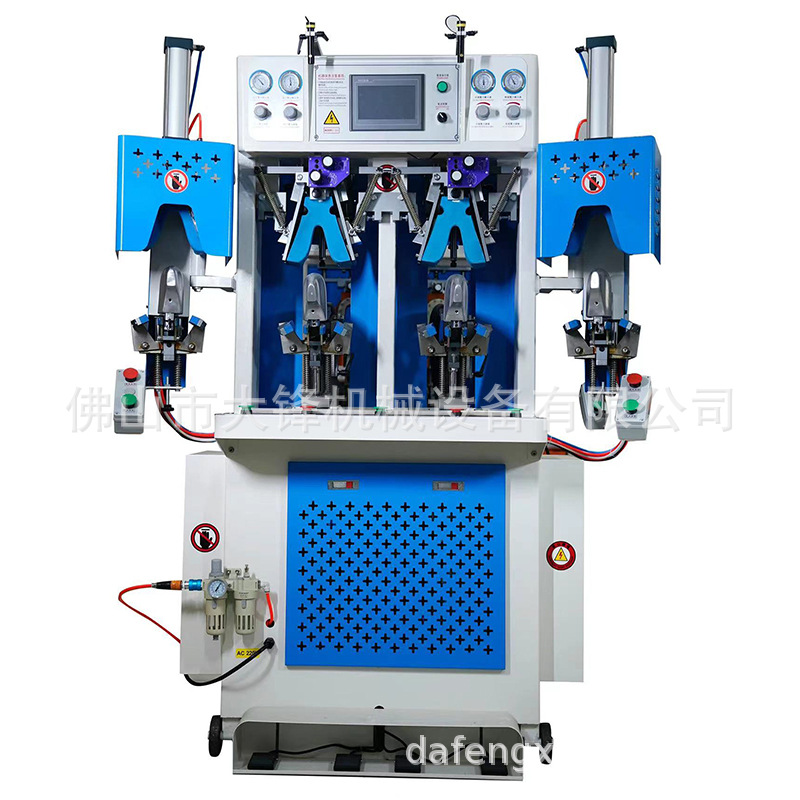

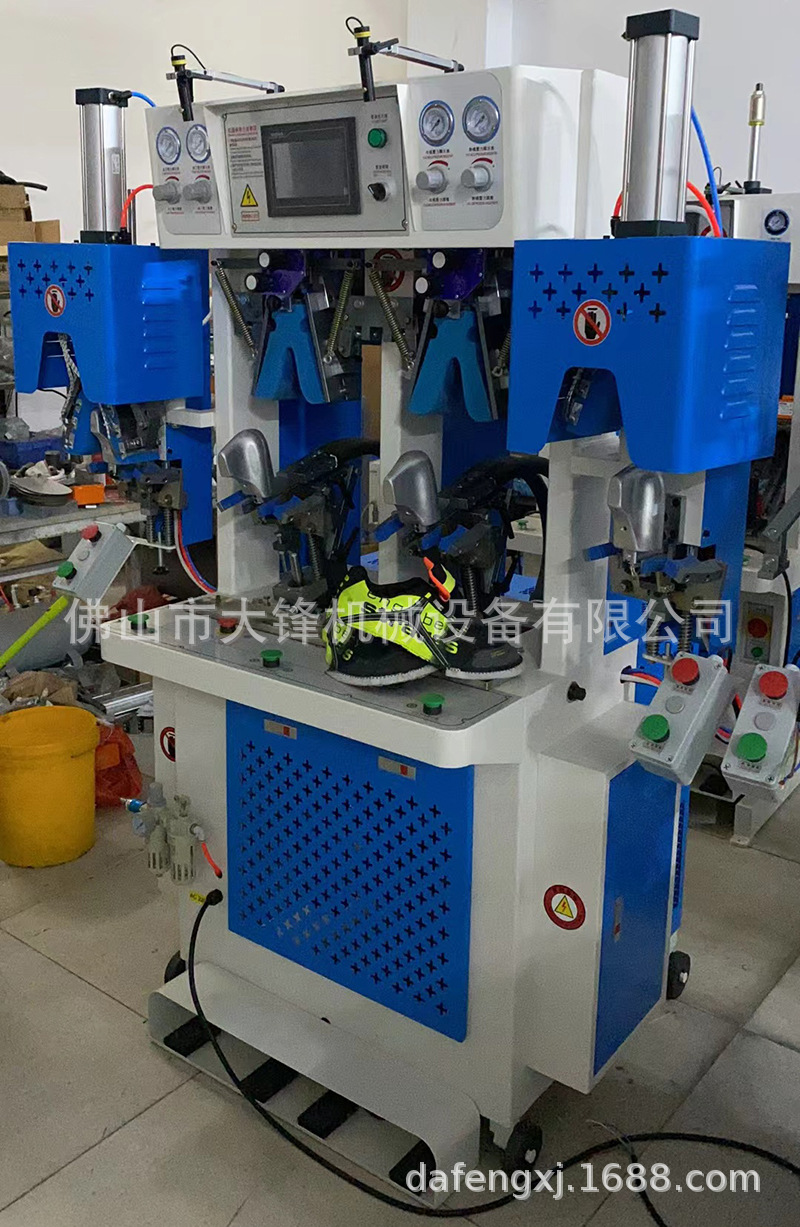

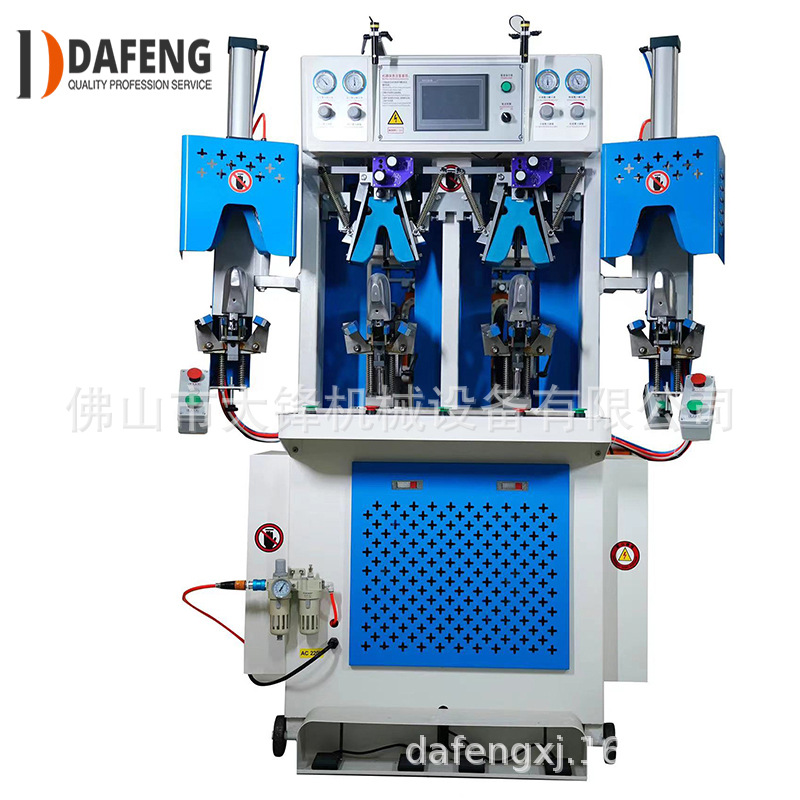

Оборудование для производства обуви, машина для формовки пятки с двойным холодом и двойным теплом с ножом для скашивания, прямая поставка от фабрики

制鞋机械设备厂直供鞋厂双冷双热上顶带扫刀后踵后跟定型机

制鞋机械设备厂直供鞋厂双冷双热上顶带扫刀后踵后跟定型机

Features:

两冷两热，带扫刀，四个模具都带可调节的下拉夹爪模具。

模具的装卸快捷方便。模具可按要求定做。

四个独立温度控制器，四个独立的时间控制器

扫刀系统用小手轮调节，快捷方便。

下模可外倾于操作员。

移动式模具柱。

冷模的下滑式下拉夹爪使鞋面的女鞋（靴）得到完美造型。

微电子PLC处理系统。两个冷模带两个光学投影仪定位

胶模上顶动作模式，力气更大，动作更稳定，特别适合大厚度鞋面操作，定型效果更好

Two cold and two hot, equipped with sweeping blades, all four molds are equipped with adjustable downward clamping claws.

The loading and unloading of the molds is quick and convenient. The molds can be custom-made according to requirements.

Four independent temperature controllers, four independent time controllers.

The sweeping blade system is adjusted by small handwheels, which is quick and convenient.

The lower mold can be tilted outward for the operator.

Mobile mold column.

The sliding downward clamping claws of the cold mold ensure a perfect shape for Safety shoes, work boots

(boots) with the shoe upper.

Microelectronic PLC processing system. Two cold molds are equipped with two optical projectors for positioning.

The top-up action mode of the rubber mold, with greater force and more stable movement, is particularly suitable for operating with thick shoe uppers, and the shaping effect is better.

Equipped with touch screen and PLC for easier operation.

Capable of folding the edge of the upper when needed.

Suitable for forming of upper with different kinds of materials.

Equipped with wiper.

Molds can be customized according to lasts.

Equipped with projector for a more accurate forming position.

Equipped with adjustable pincers that help achieve 100% fitting of upper and molds.

Equipped with environment-friendly and high-speed cooling system with extreme cooling temperature of up to -20℃.

After forming, the lining, glue sheet and upper are closely jointed without wrinkle, distortion, nor bubble.

Micro-electric processing system.

Bottom molds move upwards while top molds stay still during operation.

参数argument：

Model	Dimension	Power	Voltage	Net weight	Gross weight	Production
DF-863N	1610*1100*1920mm	2.7kW	220V/50Hz	600KG	640KG	1300Pairs/8H
