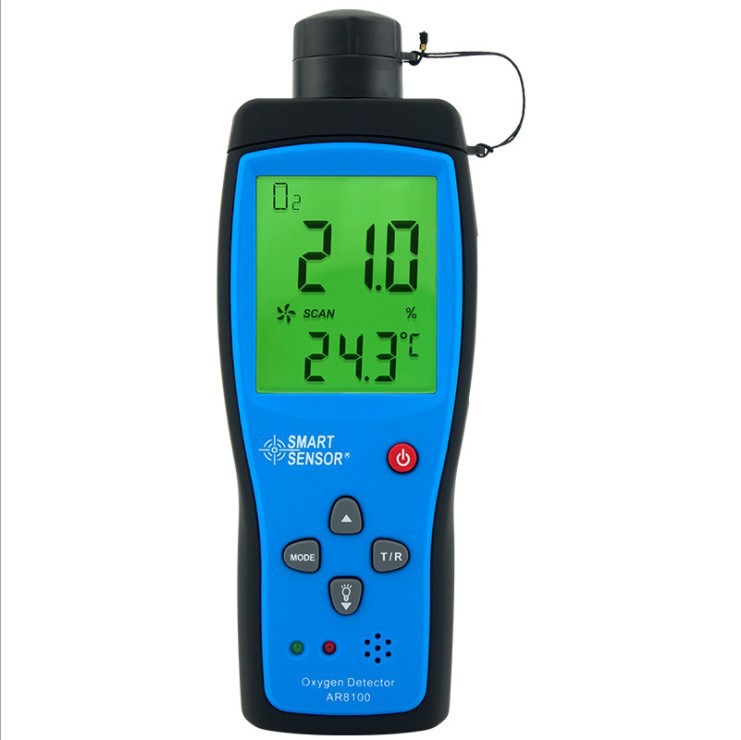

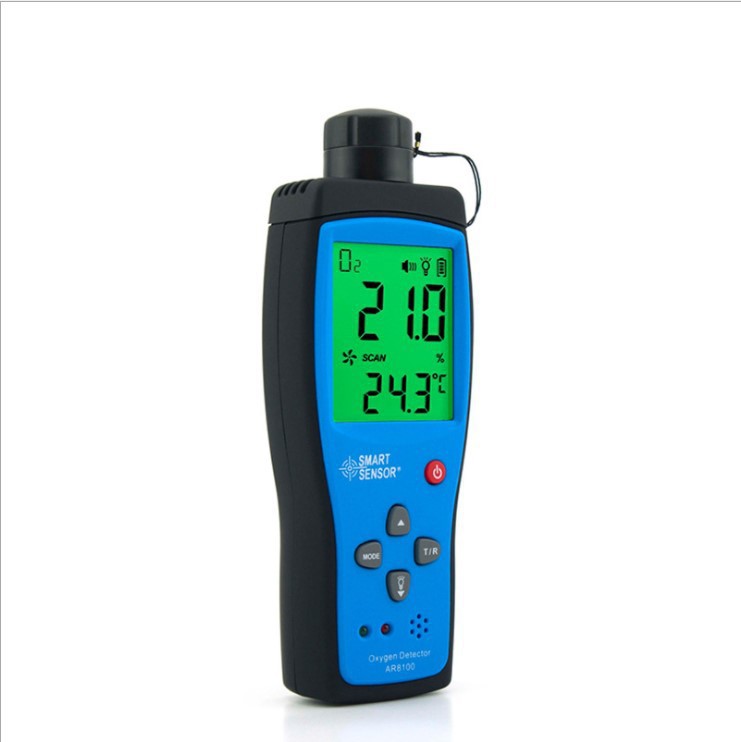

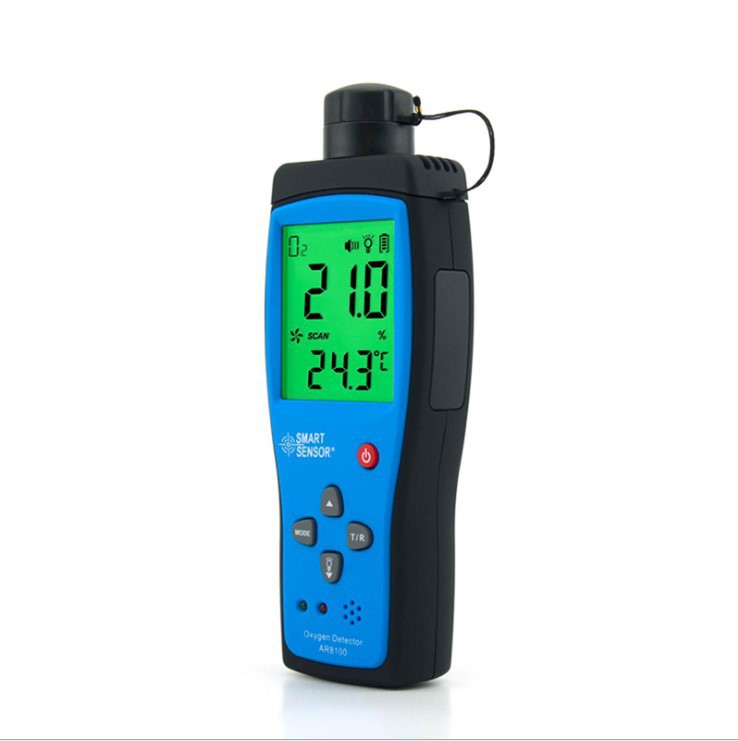

Датчик кислорода Xima Ar8100 Содержание кислорода O2 Концентрация сигнализация Портативный газовый детектор
Offer ID: 947417894539
Оформить заказ

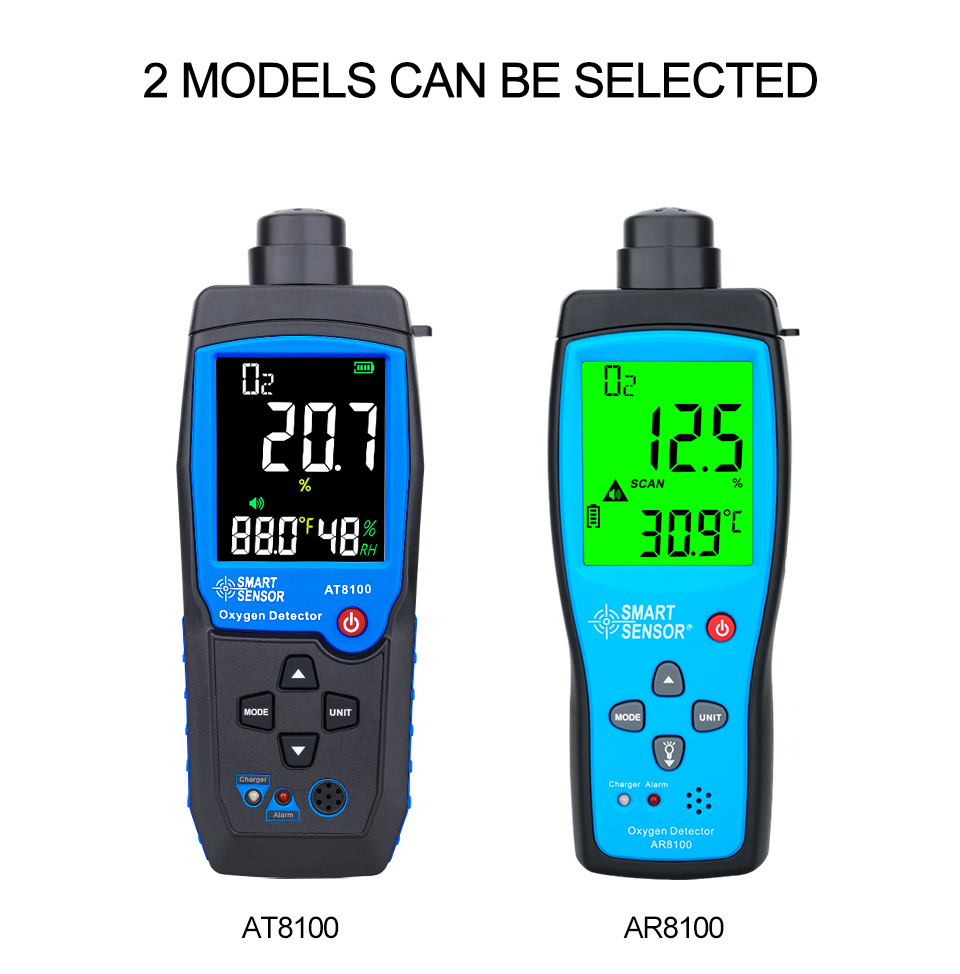

| Изображение | Спецификация | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|

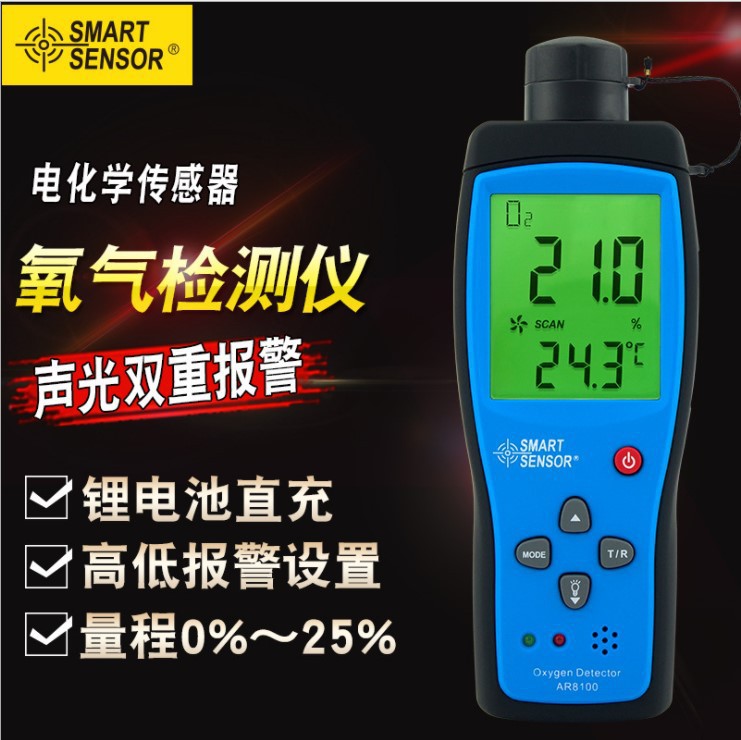

 | Ar8100 english version | ¥388.0 / ≈ 4 674 ₽ | 9980 | 5908820248433 | |
 | At8100 english version | ¥360.0 / ≈ 4 336 ₽ | 9694 | 5908820248434 | |

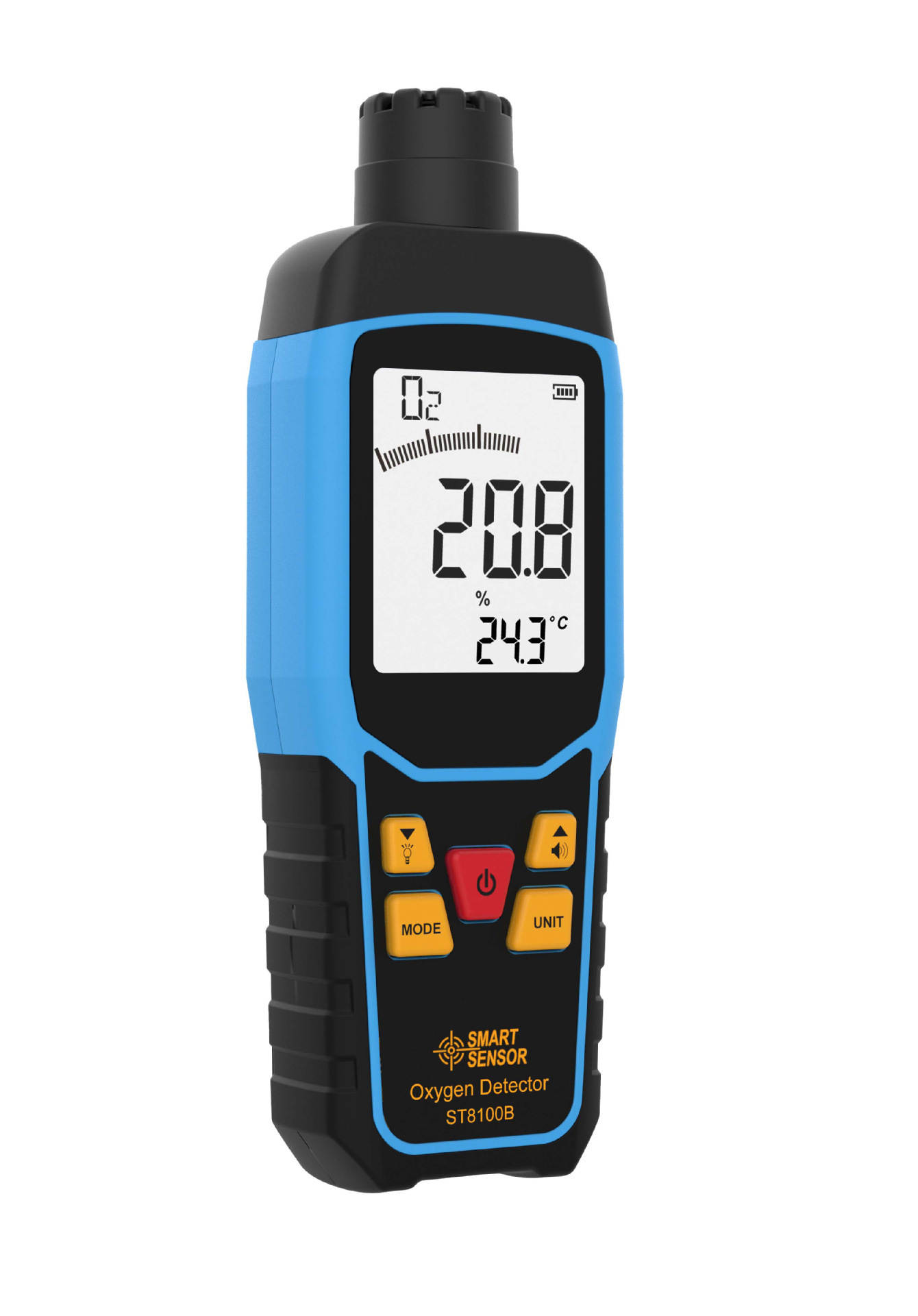

 | St8100b english version | ¥280.0 / ≈ 3 373 ₽ | 9999 | 5908820248435 |
Статистика продавца
Свойства товара
Описание товара
SMART SENSOR gas detector is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. A gas detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave. This type of device is important because there are many gases that can be harmful to organic life.
Gas detectors can be used to detect combustible, flammable and toxic gases, and oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacture processes and emerging technologies such as photovoltaic. They may also be used in firefighting.
While many of the standard gas detector units were originally fabricated to detect one gas, modern multifunctional or multi-gas devices are capable of detecting several gases at once. Some detectors may be utilized as individual units to monitor small workspace areas, or units can be combined or linked together to create a protection system.
|
Brand |
SMART SENSOR |
|
Color |
Black + Blue |
|
Gas Type |
Oxygen meter |
|
Measuring range |
0~25% VOL |
|
Resolution |
0.1% |
|
Basic error: |
Less than ± 0.1% |
|
Response time: |
Less than 50 seconds |
|
Recovery time: |
Less than 50 seconds |
|
Measuring Principle |
Electrochemical principle, life for 2 years |
|
Low / High Alarm / Alarm Setting |
V |
|
Alarm |

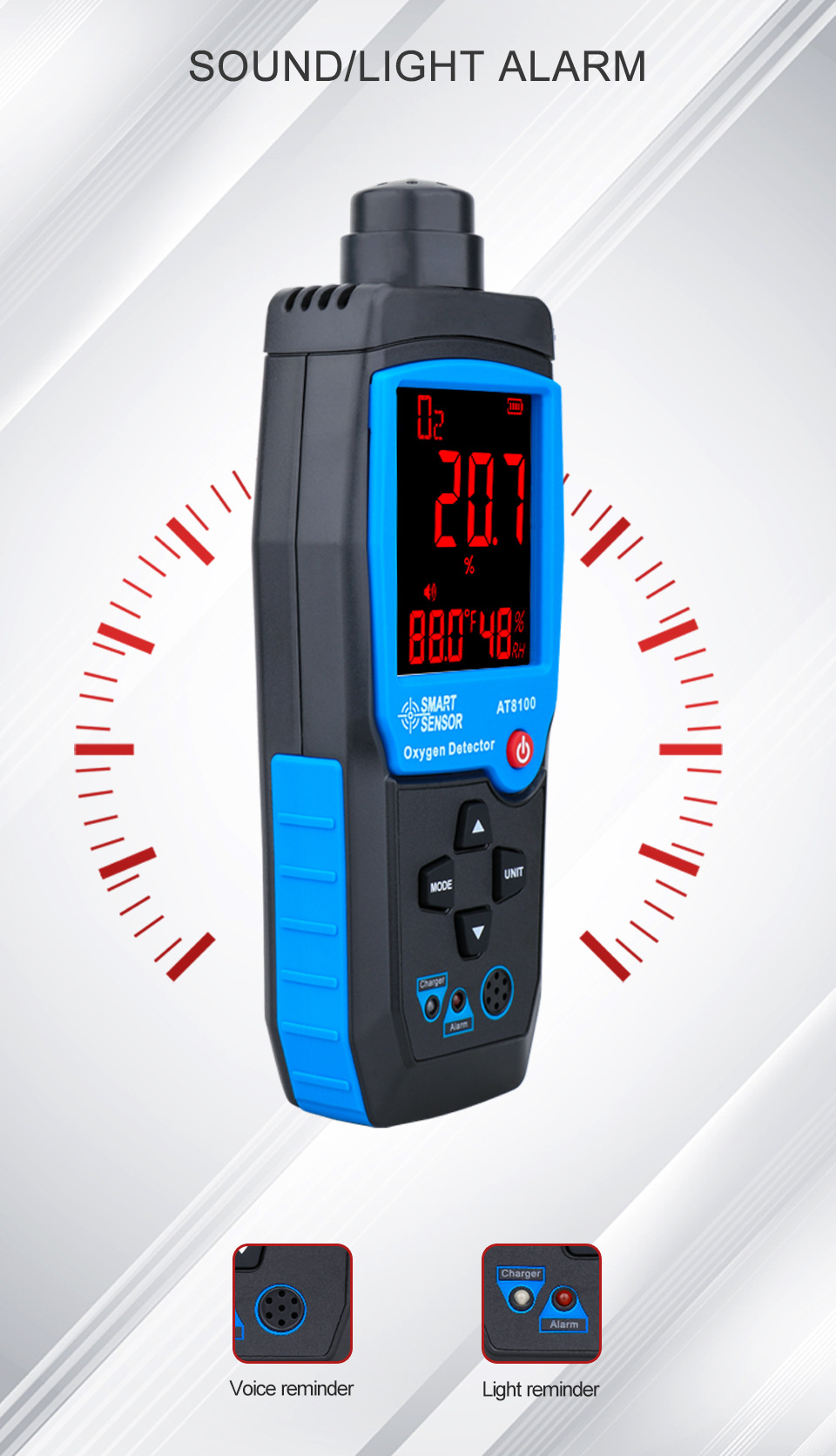

Acoustic, optical double alarm, can set the alarm value, an alarm |
|
Operating Temperature: |
-10~ 50℃(except LEL is 0 ~40℃) |
|
Operating Humidity : |
15~95 % RH, typical |
|
Storage Temperature : |
0~40℃ |
|

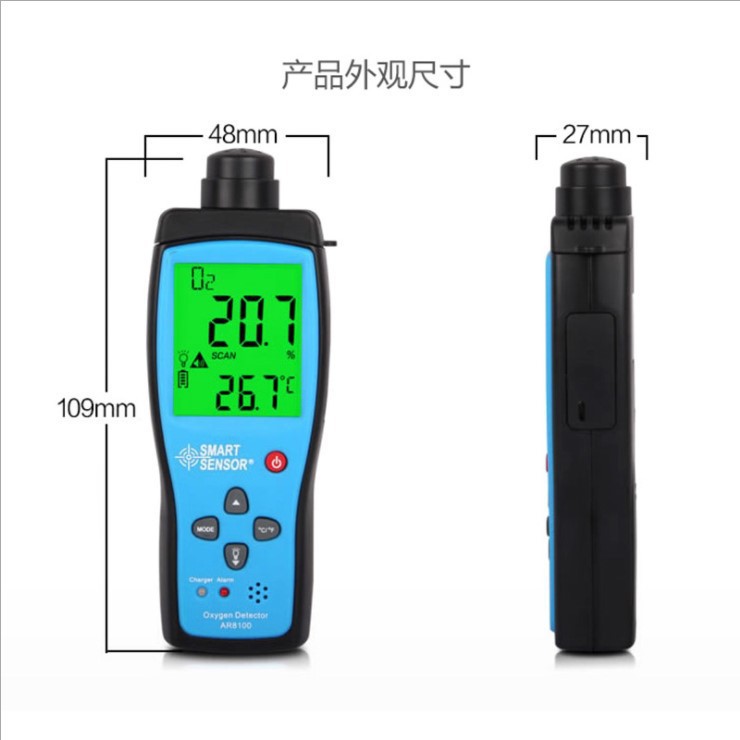

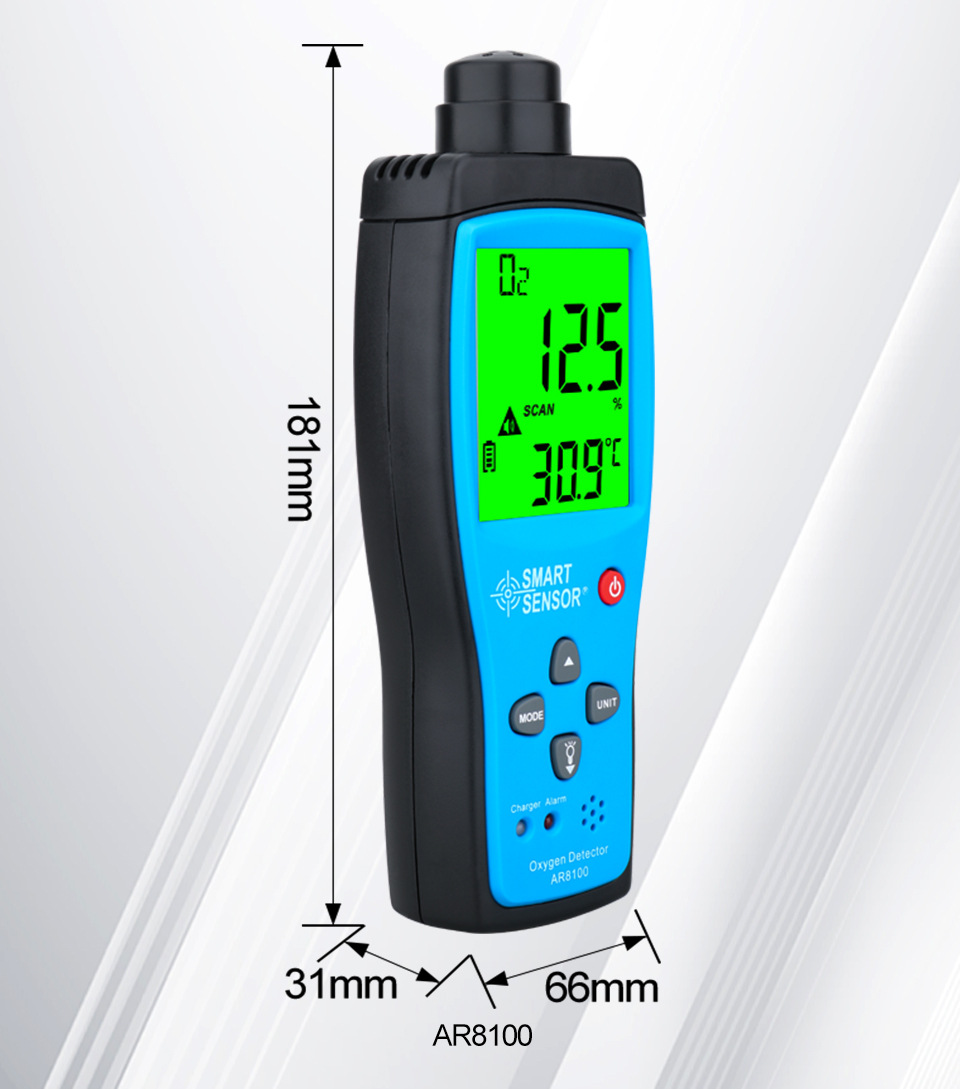

Product Weight / Size: |
200g / 112 * 66 * 32 ( mm ) |
|

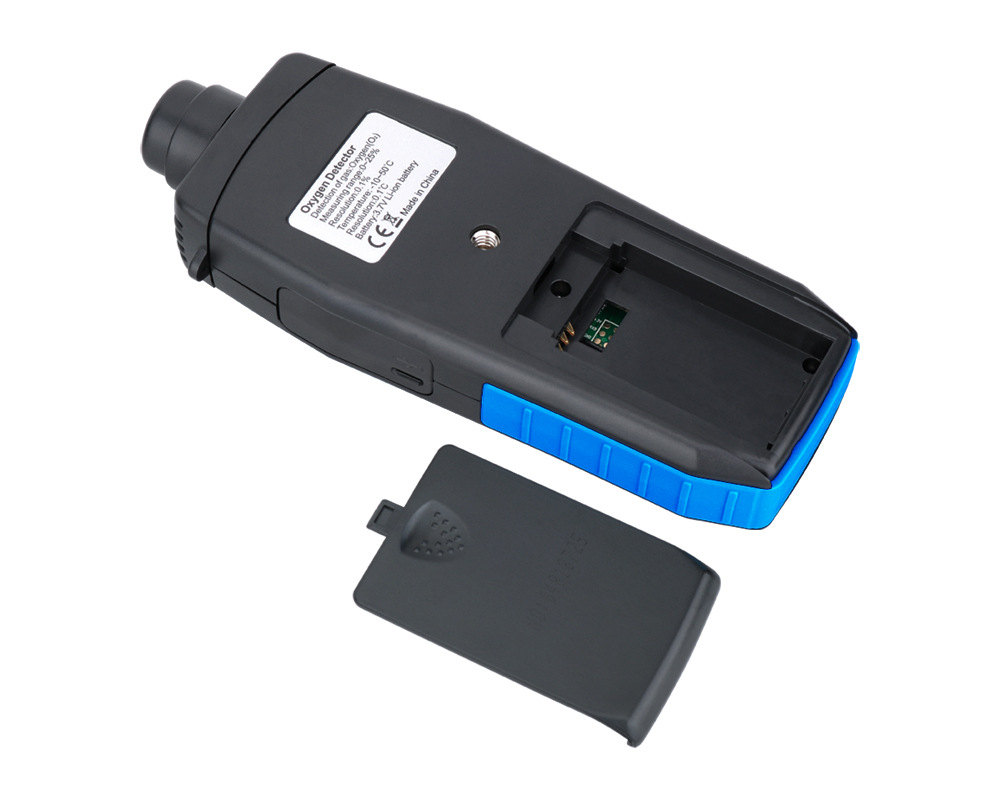

Power Supply |
Rechargeable lithium-ion battery, 3.7 Volts (include) |
|
Battery working runtime: |
about 100 hours of continuous use ( when backlight is off) |
|
Packing |
Gift Box |
|

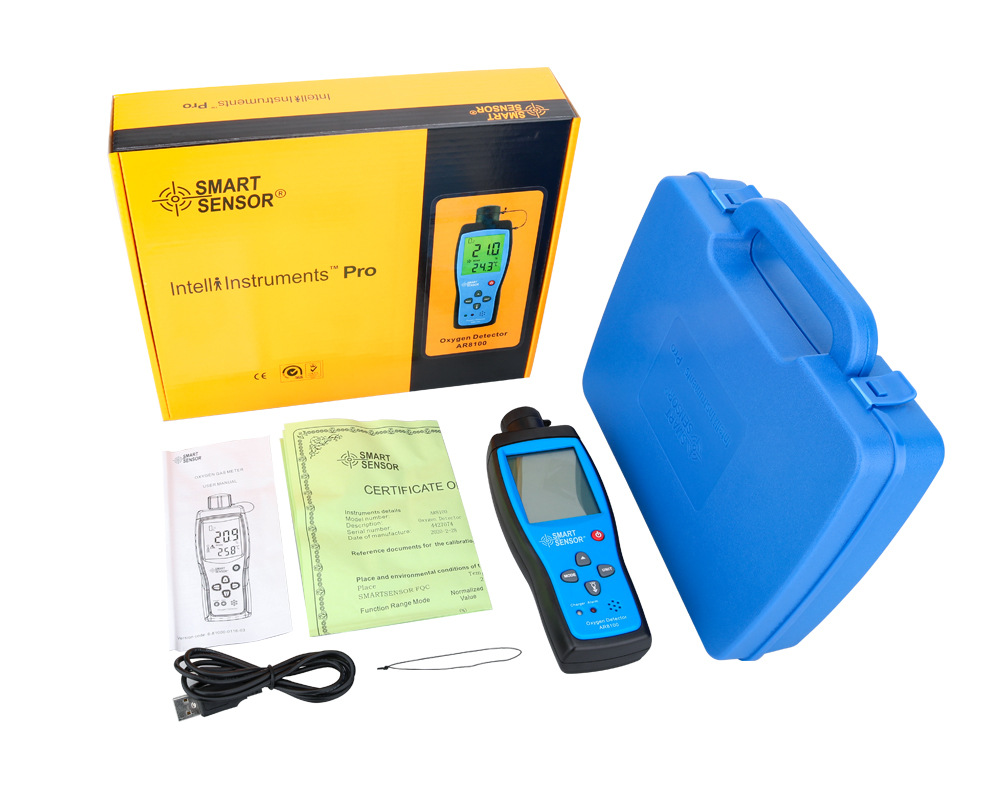

Packing Contents |
1pc AR8100 Oxygen gas monitor |
|
The effect of oxygen-deficient and oxygen-enriched atmospheres
|
|
|
The concentration of oxygen(%) |
Symptoms (atmospheric pressure) |
|
100% |
Deadly, 6 minutes(Absolutely airtight environment, such as hyperbaric oxygen chamber |
|
50% |
Deadly, can be cured after 45 minutes treatment. (Absolutely airtight environment, such as hyperbaric oxygen chamber) |
|
>23.5% |
Rich oxygen |
|
20.96% |
Normal |
|
19.5% |
Minimum |
|
15~19% |
Reduce efficiency, and lead to problems of head, lung and circulation system |
|
10~12% |
Shortness of breath, loss of judgment, purple lips |
|
8~10% |
governance loss, syncope, unconscious, pale, nausea and vomiting |
|
6~8% |
8 minutes, blood pressure, weak heartbeat,mouth breathing, quickly stopped breathing |
|
4~6% |
40 seconds, convulsions, respiratory arrest, death |

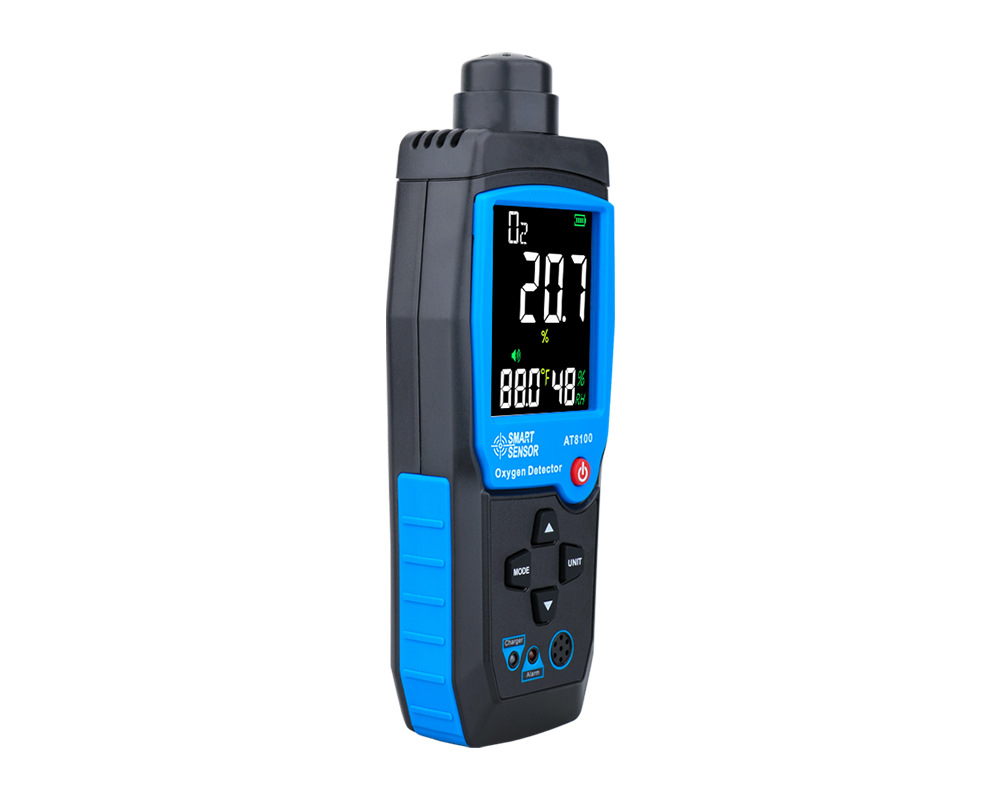

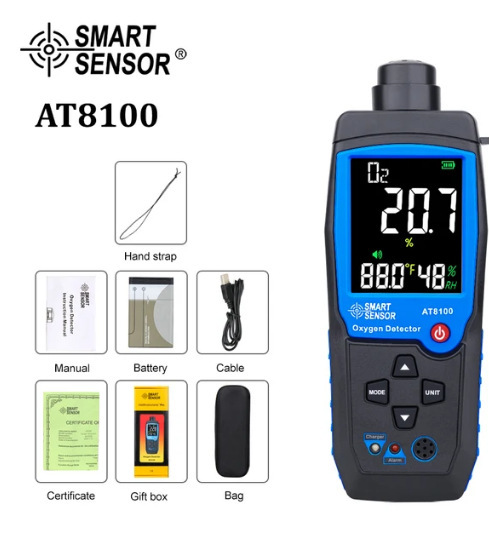

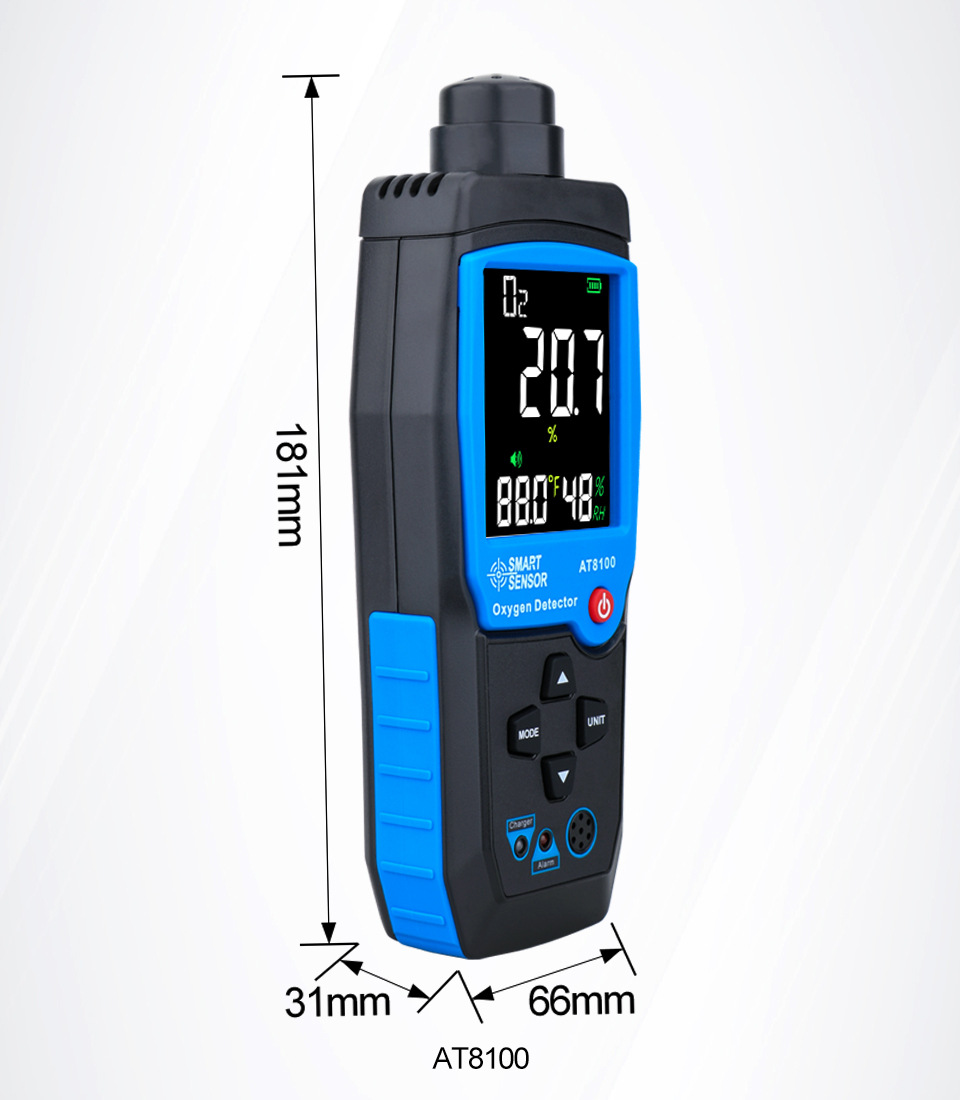

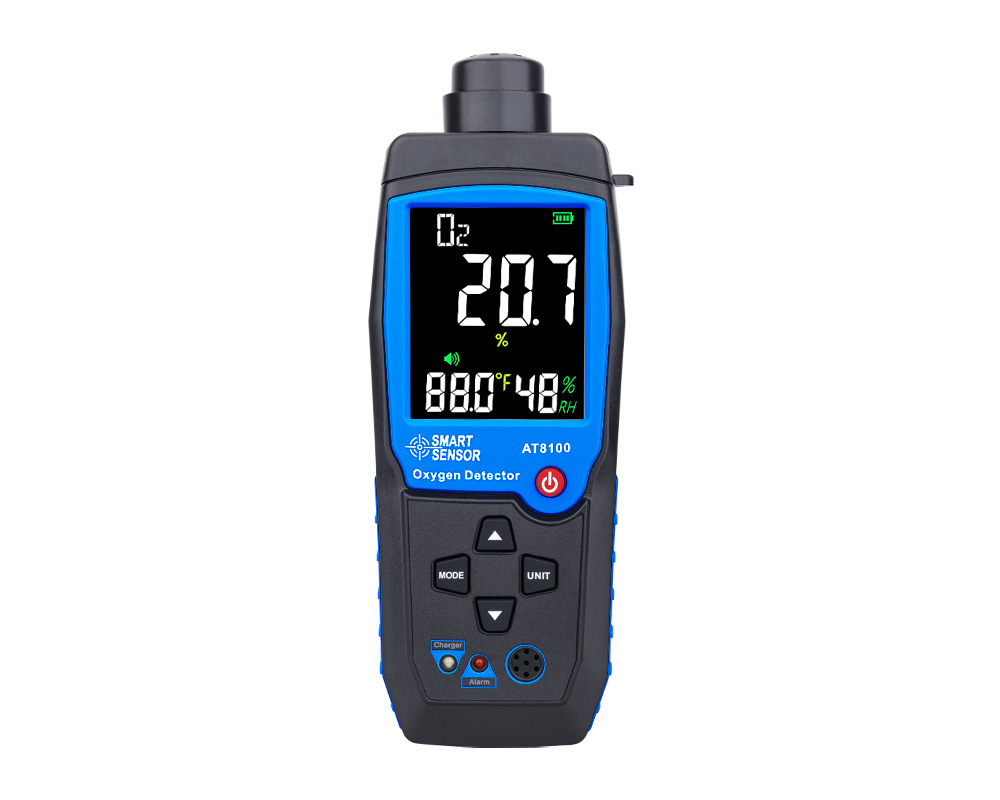

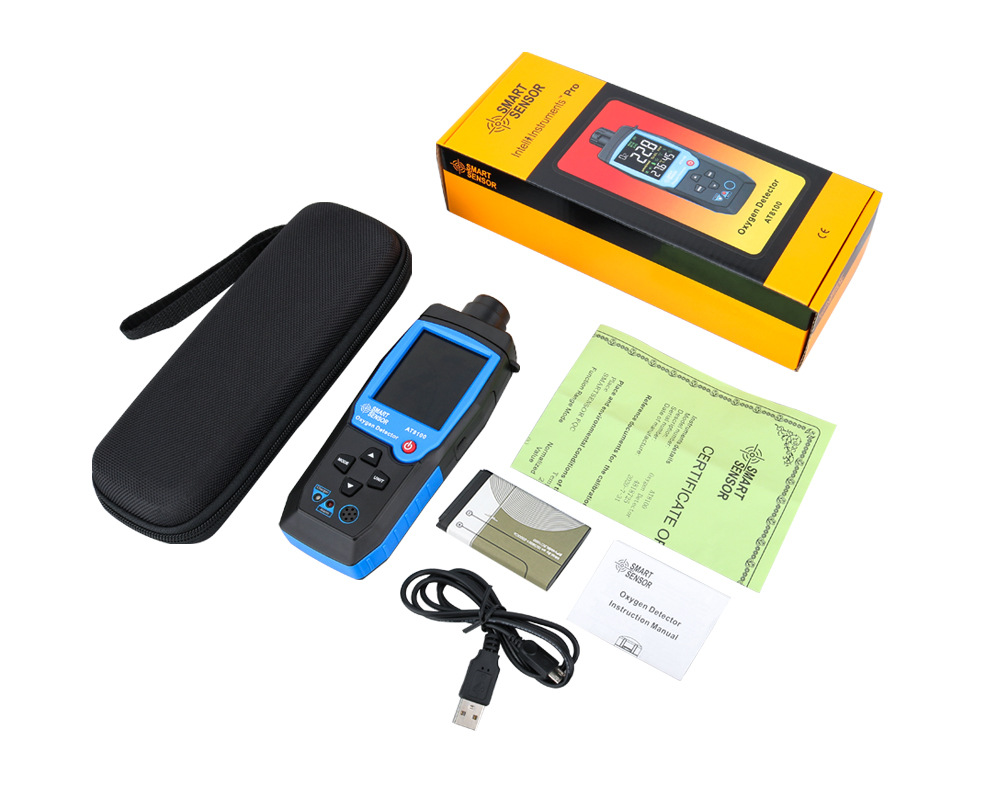

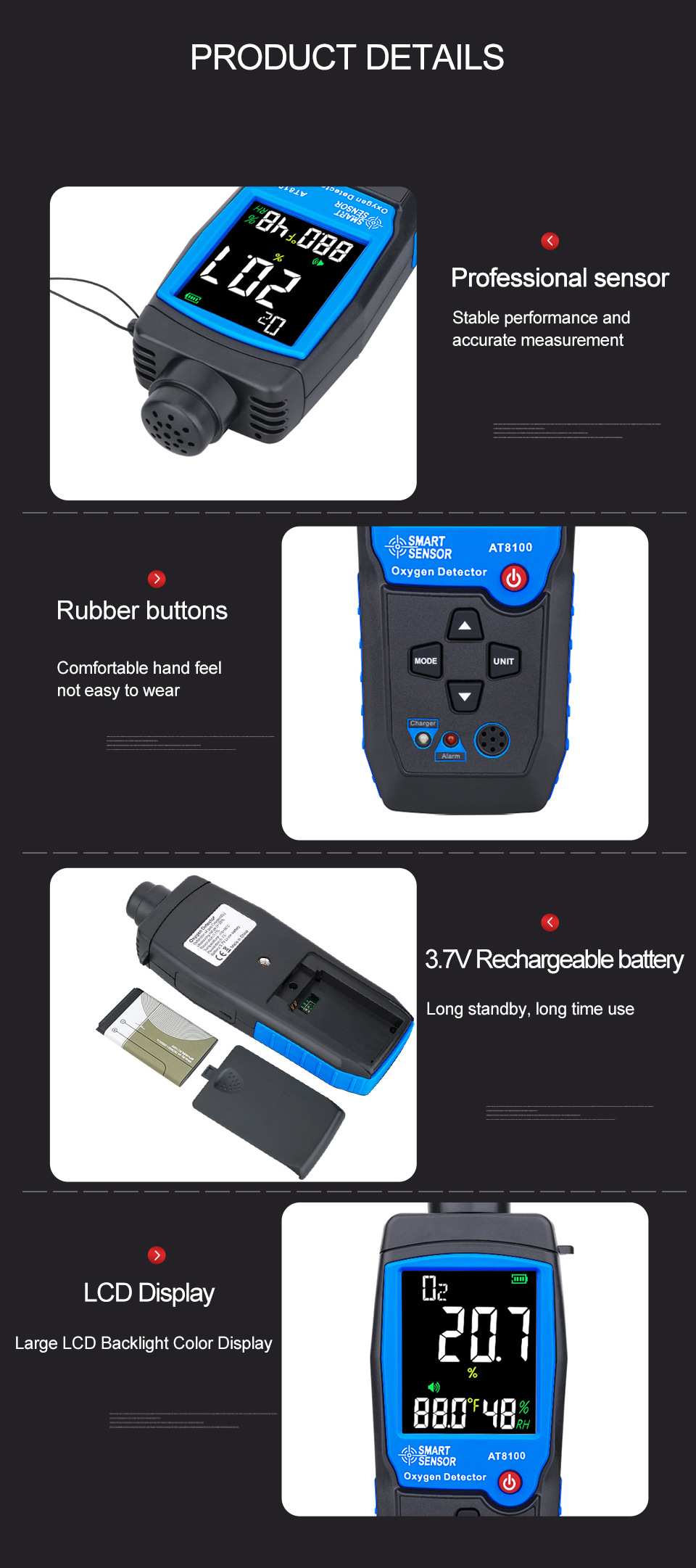

AT8100:

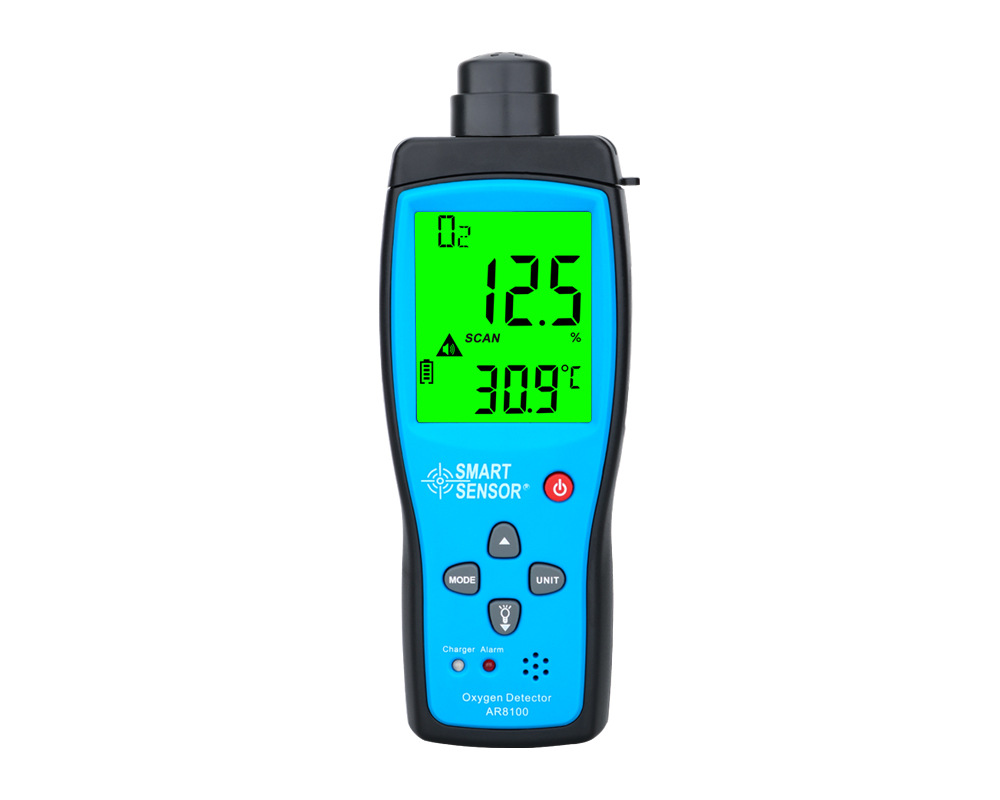

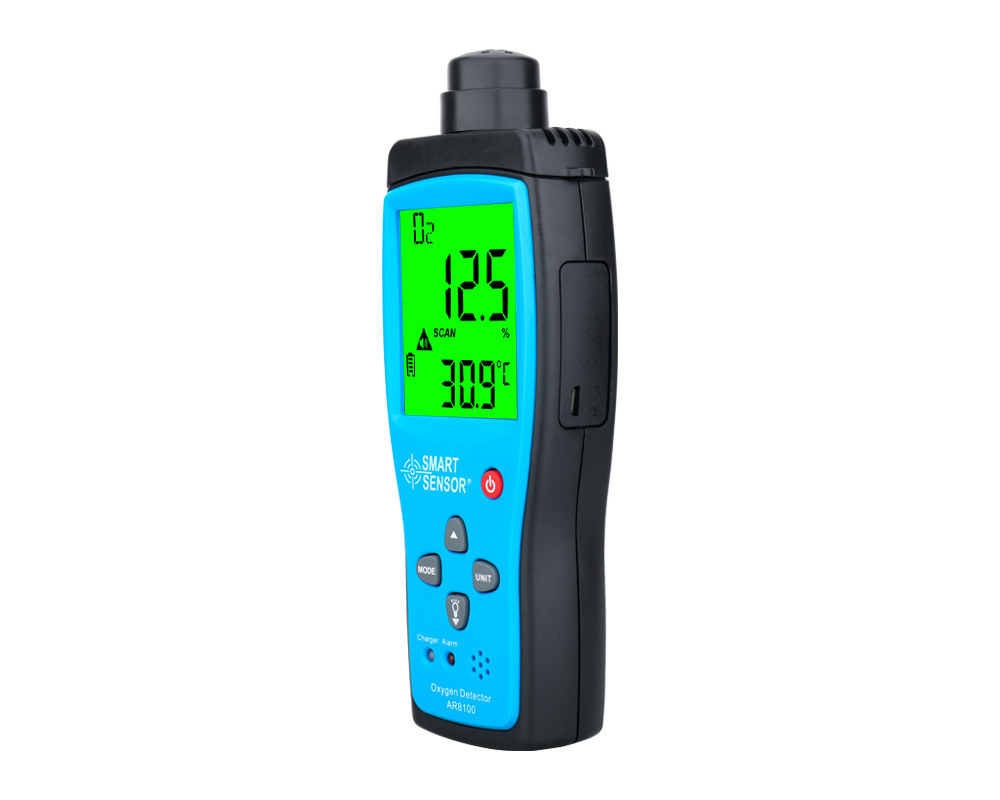

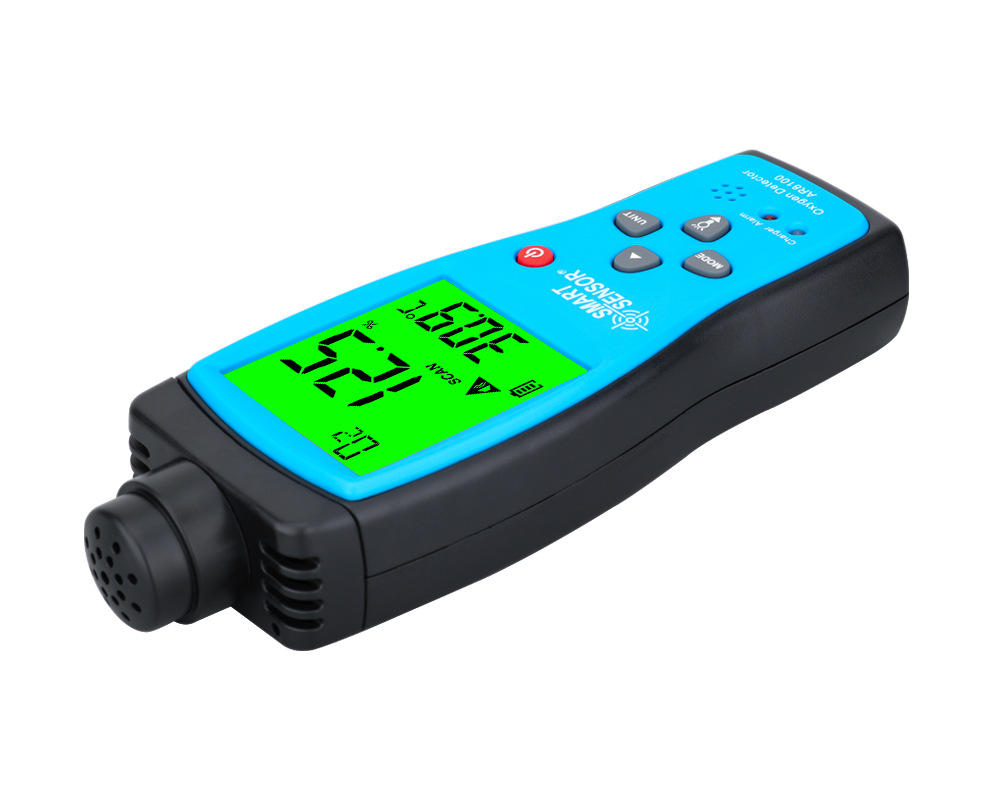

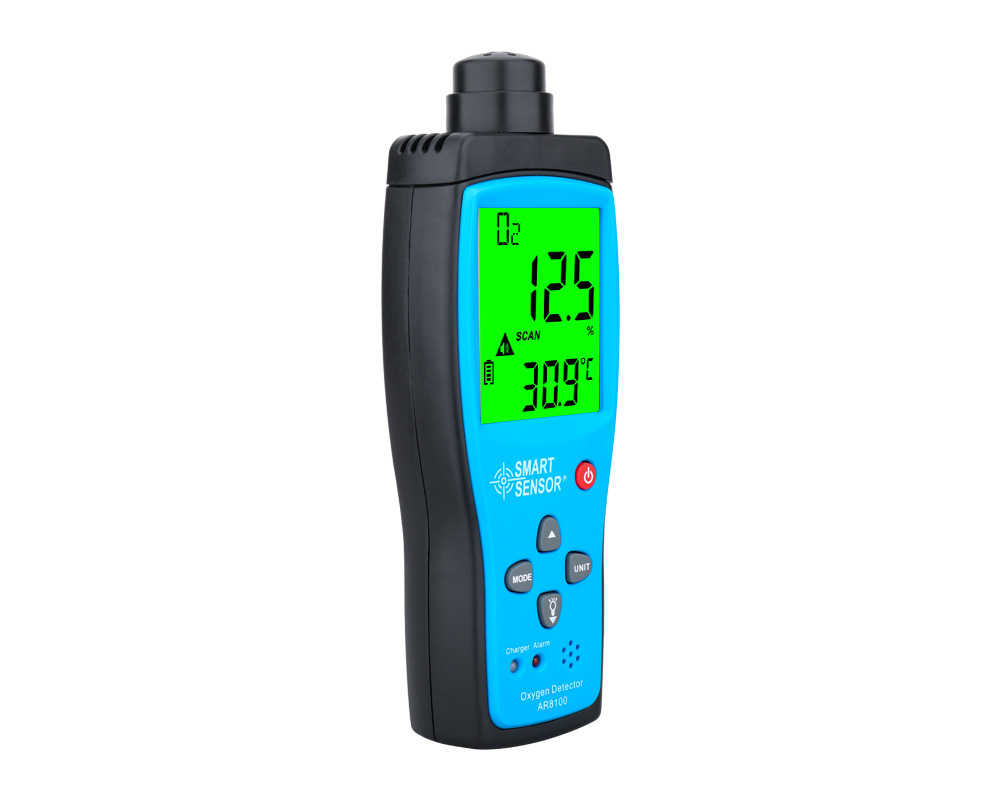

AR8100:
