Dexin Nds3402E Dvb-S2 Modulator S2 Modulator

Dexin NDS3402E DVB-S2 модулятор S2 модулятор

Цена
¥100000.00 / ≈ 1 206 112 ₽
MOQ: 1 pcs
1шт - ¥100000.00
Продавец
成都德芯数字科技股份有限公司
Рейтинг
0
Продано
0
Всего
В наличии
10000
SKU суммарно

Offer ID: 940416194739

Открыть на 1688 →

Оформить заказ

Модель:
ИзображениеМодельЦена (CNY / RUB)В наличииSKU IDКол-во / Корзина
📦
nds34021шт: ¥100000.00100006005668143904

Статистика продавца

4.0
Сервис
Источник: API 1688
3.0
Логистика
Источник: API 1688
4.0
Споры
Источник: API 1688
3.0
Оформление
Источник: API 1688
4.0
Консультация
Источник: API 1688
0%
Повторные покупки
Источник: API 1688
3.3
Постпродажное
Источник: API 1688

Свойства товара

Обработка и настройка Is
Код продукта Dexin3242
Бренд dexin
Основная зона продаж Africa, Europe, South america, Southeast asia, North america, Northeast asia, Middle east
Существуют лицензируемые частные бренды Is
Будет ли поставка товаров исключительно для трансграничного экспорта Is

Описание товара

NDS3402E DVB-S2 Modulator

DEXIN NDS3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output.

BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.

With its high cost-effective design, DEXIN NDS3402E DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

 undefined

undefined

undefined

undefined

Features

* Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

* ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2 tuner input combination)

* Support IP (1000/100M) signal input for re-mux or pass through

* Support Multiplexing and PSI/SI edit

*  QPSK, 8PSK, 16APSK, 32APSK Constellations

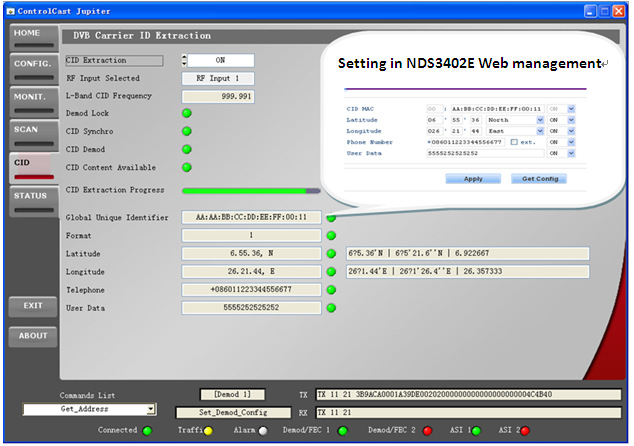

* Support RF CID setting (Optional as per order)

*  Constant temperature crystal oscillator, as high as 0.1ppm stability

*  Support 24V power output through RF output port

*  Support BISS scrambling

*  Support SFN TS transmission

*  Output frequency range: 950~2150MHz, 10KHz stepping

* Support local and remote control with Web-server NMS

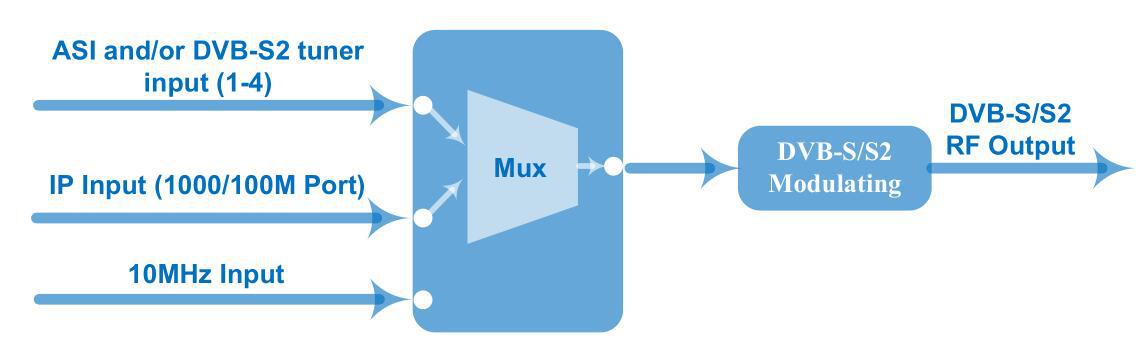

Principle Chart





Specifications



IP Input

1*IP Input (RJ45, 1000/100M TS Over UDP)

ASI Input

Supporting both188/204 Byte Packet TS Input

1-4 ASI Inputs (Connector: BNC, Impedance 75Ω)

Tuner Input

(0-4 inputs optional)

DVB-S

Input Frequency

950~2150MHz

Symbol rate

0.5~45Msps

Signal Strength

- 65- -25dBm

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

Max input bitrate

≤160 Mbps

DVB-S2

Input Frequency

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

32APSK: 0.5~40Msps

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Max input bitrate

≤160 Mbps

DVB-S2X

Input Frequency

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

8APSK/32APSK: 0.5~40Msps

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9

Constellation

QPSK/8PSK/8APSK/16APSK/32APSK

Max input bitrate

≤160 Mbps



Multiplexing

Maximum PID Remapping

128 input per channel

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Edit PSI/SI tables (PAT/PMT/SDT/CAT/NIT)

10MHz Reference Clock

1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock

RF Output

RF Range: 950 ~ 2150 MHz, 10KHz stepping

Output Level Attenuation：-26 ~ 0 dBm，0.5dBm Stepping

MER≥40dB

Connector: N type, Impedance 50Ω; N to F adapter

Channel Coding and Modulation

Standard

DVB-S

DVB-S2

Outer coding

RS Coding

BCH Coding

Inner coding

Convolution

LDPC Coding

Constellation

QPSK

QPSK,8PSK, 16APSK,32APSK

FEC/ Convolution Rate

1/2, 2/3, 3/4, 5/6, 7/8

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Roll-off Factor

0.2, 0.25, 0.35

0.2, 0.25, 0.35

Symbol Rate

0.05~45Msps

0.05~40Msps (32APSK);

0.05~45 Msps (16APSK/8PSK/QPSK)

BISS Scramble

Mode 0, mode 1, mode E

System

Web-server NMS

Language: English

Ethernet software upgrade

24V power output through RF output port

Miscellaneous

Dimension

482mm×410mm×44mm

Temperature

0~45℃(operation), -20~80℃ (storage)

Power

100-240VAC±10%, 50Hz-60Hz



Order Guide



NDS3402E (New version)

NDS3402E (Old version)

NDS3402F

NDS3403

NDS3403F

Input

1 IP (100/1000M) input, ASI and/or DVB-S2 tuner inputs for re-mux or pass through

1 IP (100M) or 1 ASI pass through alternative

DVB-S/S2 out

●

●

●

●

●

DVB- S2X out







●

●

QPSK, 8PSK

●

●

●

●

●

16APSK, 32APSK

●

●



●

●

8APSK-L,16APSK-L,32APSK-L







●

●

RF output (950-2150MHz)

●

●



●



IF output ( 50-960MHz)





●



●

Mux

●
