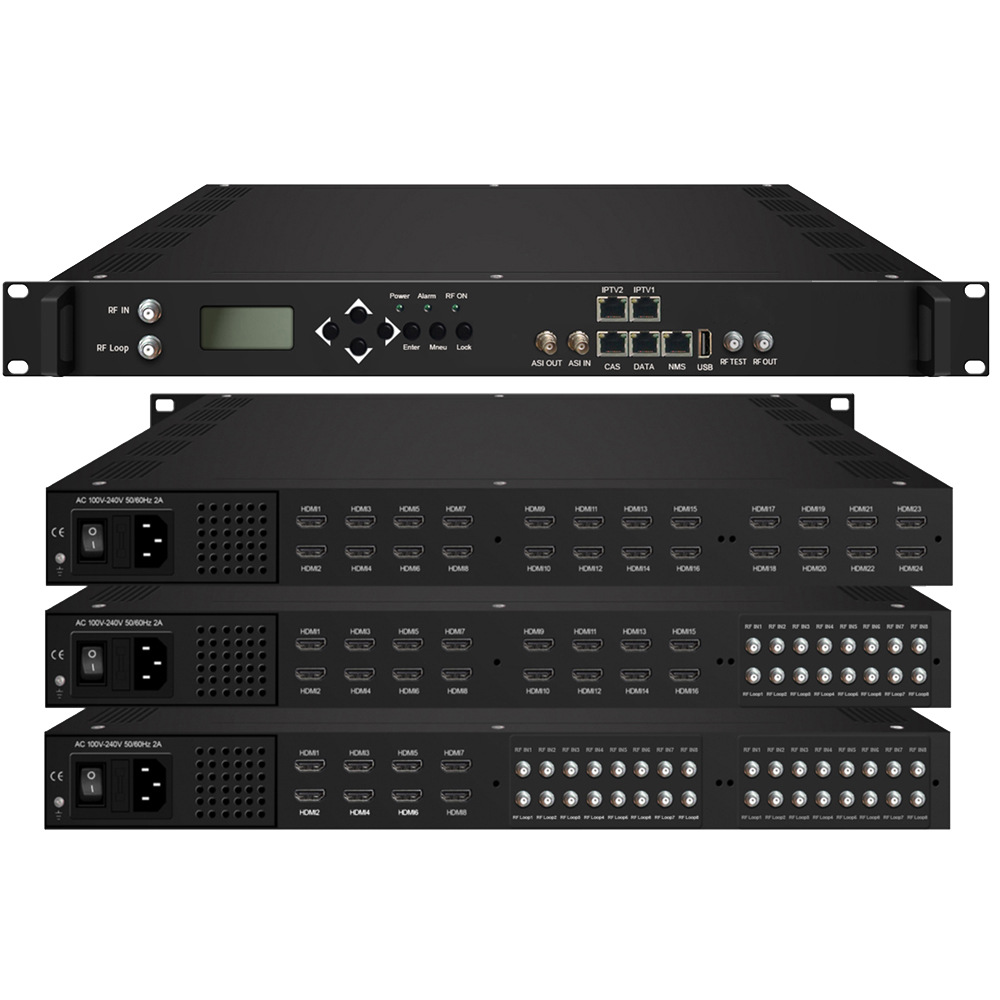

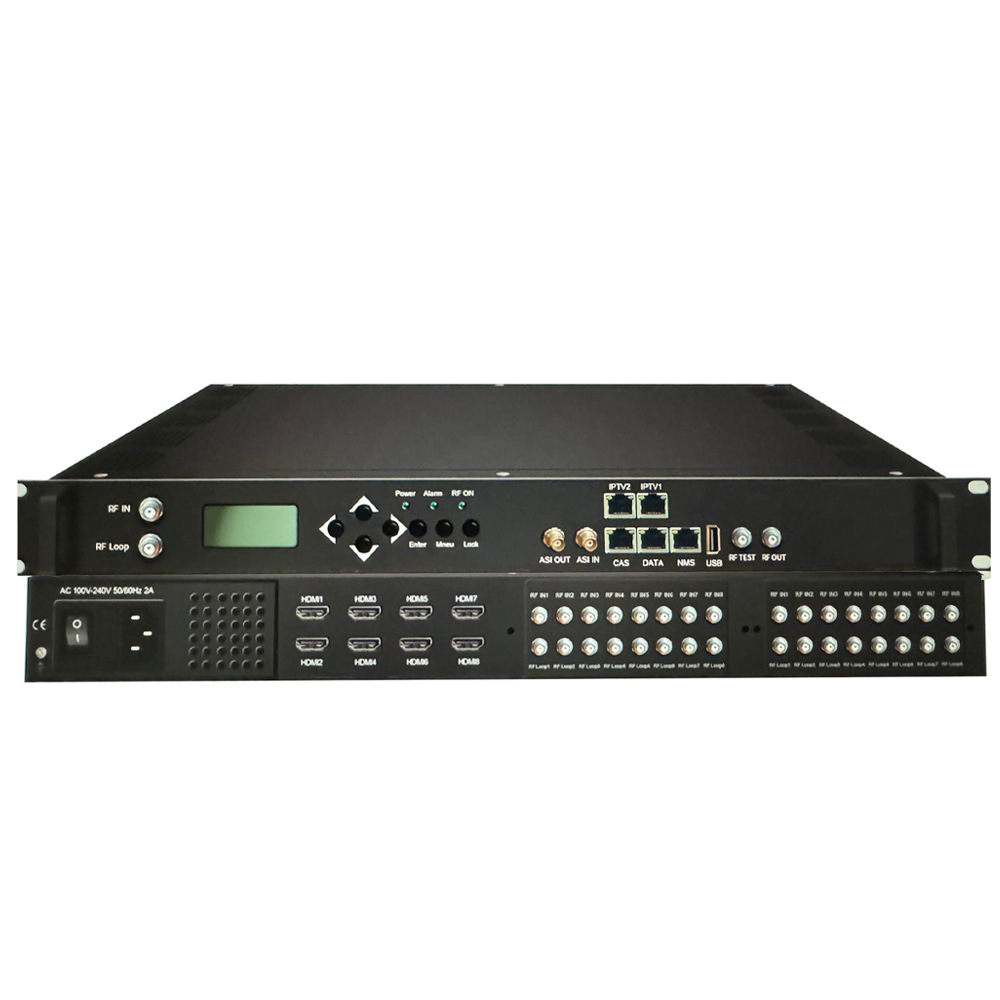

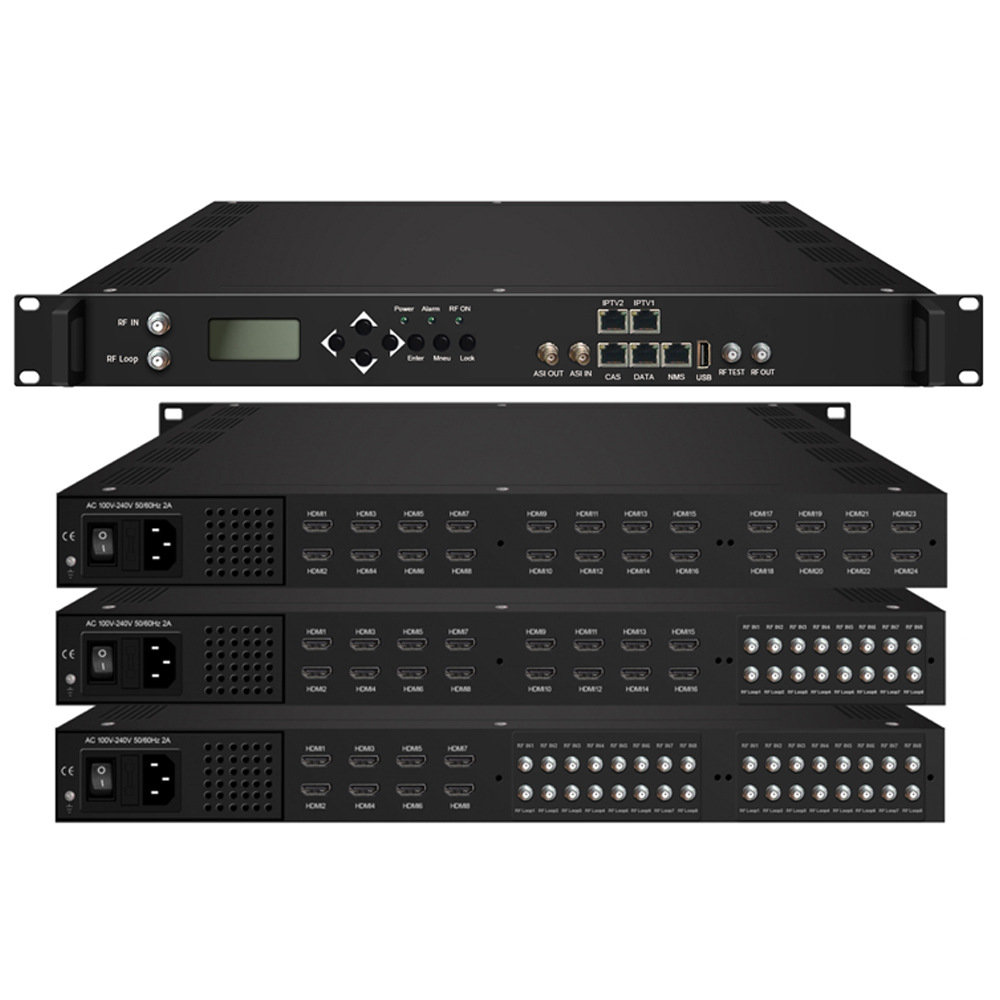

Система цифрового телевидения для отелей Iptv HDMI/Dvbs2 в Ip или Rf Rf Dvbt/C Isdbt модулятор
Offer ID: 923357244269
Оформить заказ
| Изображение | Модель | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | Digital modulator | 1шт: ¥13500.00 | 82 | 5800496425841 |
Статистика продавца
Свойства товара
Описание товара
1.2 Features
- Ø Supporting 8/16/24 HDMI inputs(or HDMI inputs plus DVB-S/S2/S2X tuner inputs)
- Ø Supporting HEVC/H.265 and MPEG-4 AVC/H.264 video format
- Ø Supporting 1 ASI input for remulitplexing and 1 USB input(xxx.ts file only)
- Ø Supporting 32 DVB-C carriers output（available order option: 16 DVB-T, 16 DTMB or 16 ISDB-T carriers）
- Ø Supporting IP inputs(available protocol: UDP/RTP/RTSP/HLS/HTTP/SRT）
- Ø Supporting MPTS output over UDP/RTP/RTSP, and SPTS output over UDP/HLS/HTTP/RTP/RTSP/RTMP/SRT
- Ø Supporting OSD feature(Logo, caption and QR Code insertion）
- Ø Supporting LCD/Key Button and Web NMS
1.3 Specifications
|
Input |
Supporting 8/16/24 HDMI inputs(or HDMI inputs plus DVB-S/S2/S2X tuner inputs) |
||||||
|
1 ASI input for remulitplexing |
|||||||
|
1 USB input(xxx.ts file only) |
|||||||
|
128 IP inputs, (MPTS input over UDP and RTP, SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT) |
|||||||
|
Video Encoding |
Resolution |
Input |
1920×1080_60P，1920×1080_60i， 1920×1080_50P，1920×1080_50i， 1280×720_60P，1280×720_50P， 720×576_50i，720×480_60i， |
||||
|
Output |
1920×1080_30P，1920×1080_25P， 1280×720_30P，1280×720_25P， 720×576_25P，720×480_30P， |
||||||
|
Video Format |
HEVC/H.265 & MPEG-4 AVC/H.264 |
||||||
|
Bitrate |
1Mbps~13Mbps per channel |
||||||
|
Rate Control |
CBR/VBR |
||||||
|
GOP Structure |
IP…P(P Frame adjustable) |
||||||
|
Audio Encoding |
Audio Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC 和 AC3直通 |
|||||
|
Sampling rate |
48KHz |
||||||
|
Resolution |
24-bit |
||||||
|
Audio Gain |
0-255 adjustable |
||||||
|
MPEG-1 Layer 2 Bitrate |
48/56/64/80/96/112/128/160/192/224/256/320/384kbps |
||||||
|
LC-AAC Bitrate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
||||||
|
HE-AAC Bitrate |
48/56/64/80/96/112/128 kbps |
||||||
|
Satellite Tuner |
DVB-S |
Input Frequency |
950-2150MHz |
||||
|
Symbol Rate |
0.5~45 Msps |
||||||
|
Constellation |
QPSK |
||||||
|
FEC |
1/2, 2/3,3/4,5/6,7/8 |
||||||
|
DVB-S2 |
Input Frequency |
950-2150MHz |
|||||
|
Symbol Rate |
QPSK/8PSK/16APSK:0.5~45 Msps 32APSK:0.5~40 Msps |
||||||
|
Constellation |
QPSK/8PSK/16APSK/32APSK |
||||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9 |
||||||
|
Max input bitrate per tuner |
≤170 Mbps |
||||||
|
DVB-S2X |
Symbol Rate |
QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK/32APSK: 0.5~40 Msps |
|||||
|
Constellation |
QPSK/8PSK/16APSK/8APSK/32APSK |
||||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
||||||
|
Max input bitrate per tuner |
≤170 Mbps |
||||||
|
Signal Strength |
-65~-25dBm |
||||||
|
Multi-Mode Tuner |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
||||
|
Frequency In |
50~960MHz |
||||||
|
Constellation |
16/32/64/128/256 QAM |
||||||
|
DVB-T/T2 |
Frequency In |
50~960MHz |
|||||
|
Bandwidth |
6/7/8 M bandwidth |
||||||
|
ISDB-T |
Frequency In |
50~960MHz |
|||||
|
Multiplexing |
Max PID Remapping |
255/Per channel |
|||||
|
Function |
PID remapping ( automatically or manually) |
||||||
|
Accurate PCR adjusting |
|||||||
|
Generate PSI/ SI table automatically |
|||||||
|
Modulation |
DVB-C |
QAM |
32 non-adjacent carriers output (maximum bandwidth 384MHz) |
||||
|
Standard |
EN300 429/ITU-T J.83A/B |
||||||
|
MER |
≥40dB |
||||||
|
RF frequency |
50~960MHz, 1KHz Stepping |
||||||
|
RF output level |
-20~+1dBm, 0.1dB Stepping |
||||||
|
Symbol Rate |
5.0Msps~7.0Msps, 1ksps Stepping |
||||||
|
Standard |
J.83A |
J.83B |
|||||
|
Constellation |
16/32/64/128/256QAM |
64/256QAM |
|||||
|
Bandwidth |
8M |
6M |
|||||
|
DVB-T |
Standard |
EN300744 |
|||||
|
FFT Mode |
2K,4K,8K |
||||||
|
Bandwidth |
6M,7M,8M |
||||||
|
Constellation |
QPSK,16QAM,64QAM |
||||||
|
Guard Interval |
1/4,1/8,1/16,1/32 |
||||||
|
Code Rate |
1/2,2/3,3/4,5/6,7/8 |
||||||
|
MER |
≥42dB |
||||||
|
RF frequency |
50~960MHz,1KHz stepping |
||||||
|
RF output channel |
16 non-adjacent carriers output (maximum bandwidth 192MHz) |
||||||
|
RF output level |
-20~+1dBm,0.1dB Stepping |
||||||
|
DTMB |
Standard |
GB20600-2006 |
|||||
|
Bandwidth |
8M |
||||||
|
Constellation |
4QAM、16QAM、32QAM、64QAM |
||||||
|
MER |
≥36dB |
||||||
|
RF frequency |
50~960MHz，1kHz stepping |
||||||
|
RF output channel |
16 non-adjacent carriers output (maximum bandwidth 192MHz) |
||||||
|
RF output level |
-20~+1dBm（for all carriers）0.5dBstepping |
||||||
|
ISDB-T |
Standard |
ARIB STD-B31 |
|||||
|
Bandwidth |
6M |
||||||
|
Constellation |
QPSK,16QAM,64QAM |
||||||
|
Guard Interval |
1/32,1/16,1/8,1/4 |
||||||
|
FFT Mode |
2K,4K,8K |
||||||
|
Code Rate |
1/2,2/3,3/4,5/6,7/8 |
||||||
|
MER |
≥40dB |
||||||
|
RF frequency |
50~960MHz,1KHz stepping |
||||||
|
RF output channel |
16 non-adjacent carriers output (maximum bandwidth 192MHz) |
||||||
|
RF output level |
-20~+1dBm，0.1dB stepping |
||||||
|
Output |
1 ASI output as mirror for one of RF output carriers |
||||||
|
MPTS output |
32 MPTS output over UDP or RTP/RTSP(as mirror of 32 DVB-C carriers); Or 16 MPTS output over UDPor RTP/RTSP (as mirror of 16 DVB-T/DTMB/ISDB-T carriers, optional),1*1000M Base-T Ethernet interface, GE port |
||||||
|
SPTS output |
Over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT |
||||||
|
Miscellaneous |
Network management(WEB) |
||||||
|
English language |
|||||||
|
Ethernet software upgrade |
|||||||
|
Dimension(W×L×H) |
482mm×328mm×44mm |
||||||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
||||||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
||||||
