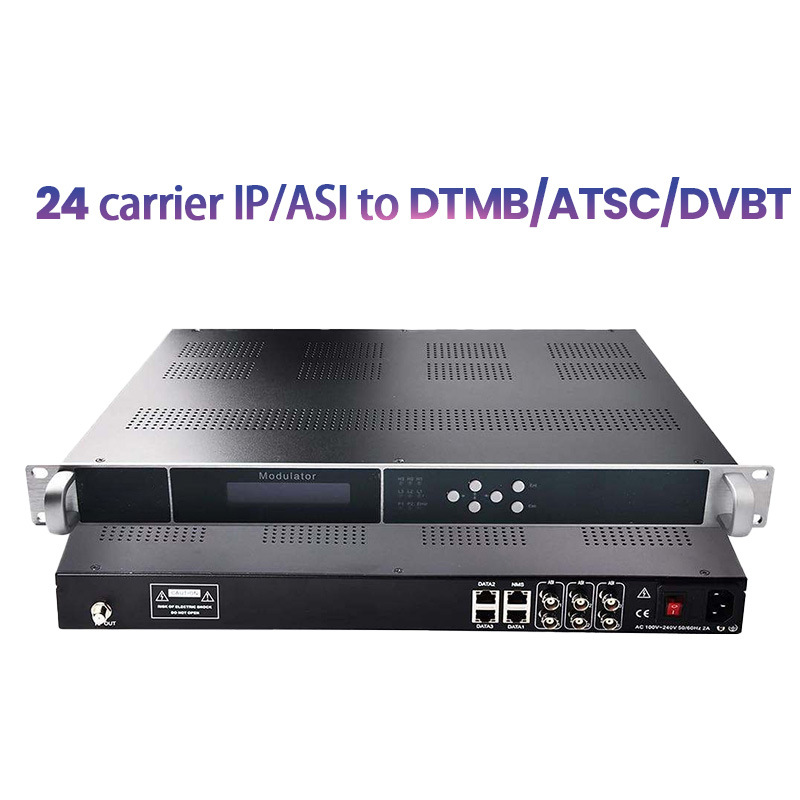

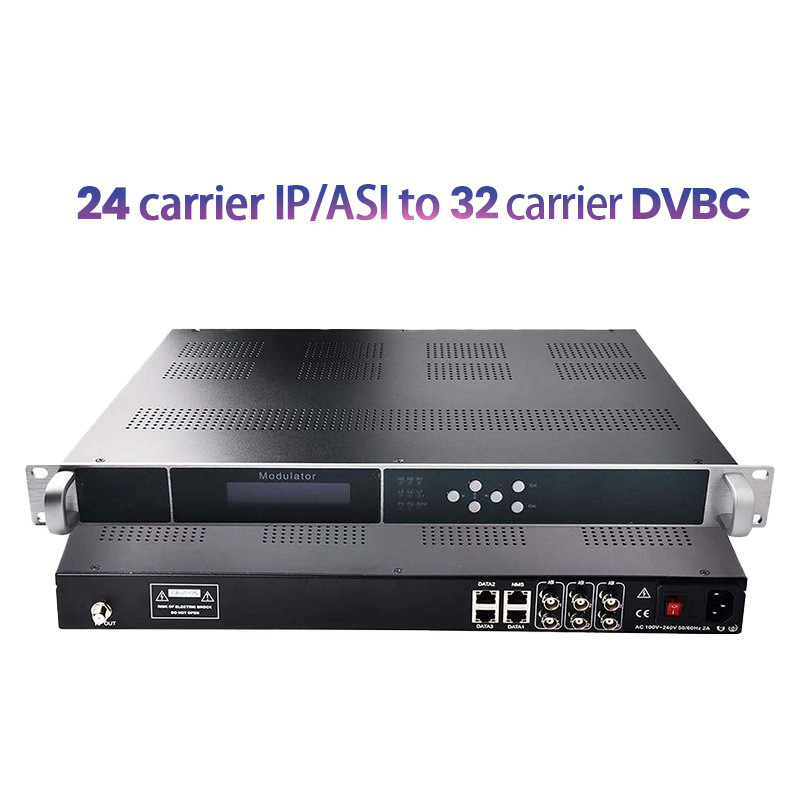

Модулятор системы цифрового телевидения Ip/Asi в Dvbt 24Ch 16Ch 8Ch Isdbt Dvbc
Offer ID: 923351884057
Оформить заказ
| Изображение | Модель | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | Ip modulator | 1шт: ¥8500.00, 999шт: ¥8000.00 | 999 | 5965674438540 |
Статистика продавца
Свойства товара
Описание товара
1.2 Key Features
v Support maximum 3*128 IP input over UDP and RTP protocol
v Support 8 MPTS Output（6 MPTS are independent multiplexed outputs, and 2 MPTS are RF stream multiplexed outputs.）
v Support 16 channel modulating output (DVB-T/-C/ATSC/ISDBT/DTMB optional)
v RF 96~864MHz Any Settings(RF Total output bandwidth 768MHz)
v Support 6 Serial TS Input (Any Multiplex)
v Integrated multiplexing and modulating functions
v Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
v Web-based NMS management
System function diagram
1.3 Specifications
|

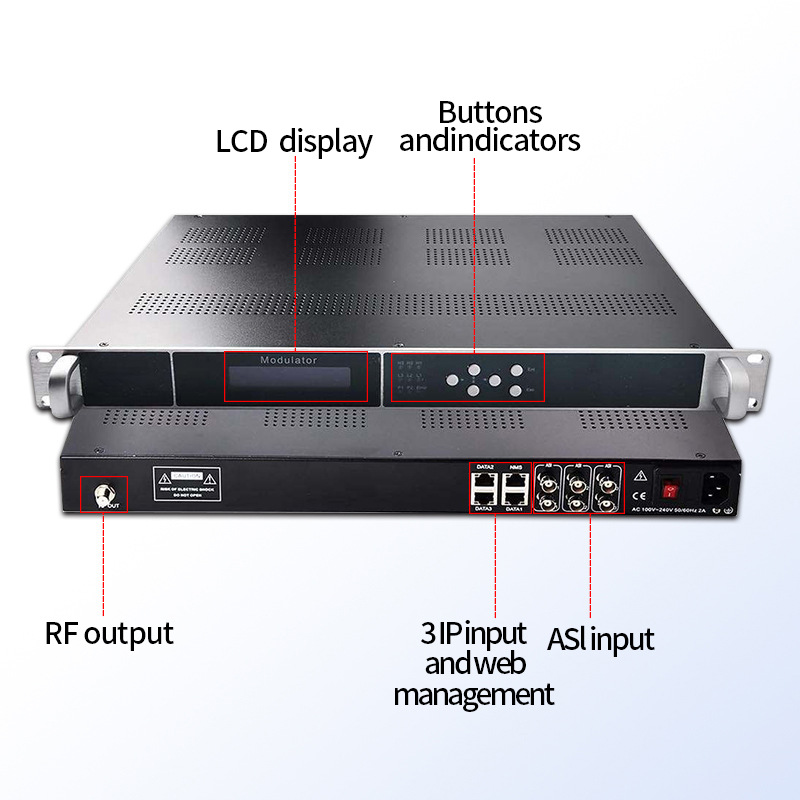

Input |
3 IP inputs(Each port supports 128 IP addresses input) |
||
|
6 ASI input |
|||
|
Output |
RF output |
1 RF output interface, F-type connector, 75Ω impedance |
|
|
RF output 16 channel（DVB-T/ATSC/ISDBT/DMBT）or 32 channel（DVB-C）optional |
|||
|
IP output |
8 MPTS output |
||
|
Modulation Mode |
DVB-T |
Standard |
EN300744 |
|
FFT |
2K |
||
|
Bandwidth |
6M, 7M, 8M |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
RF output level |
-35~ -5dBm, 0.1db step |
||
|
DVB-C |
Standard |
EN300 429/ITU-T J.83A/B/C |
|
|
MER |
≥37db |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
RF output level |
-35~-5dBm , 0.1dBm step |
||
|
SR |
5.0Msps~7.0Msps, 1ksps step |
||
|
Constellation |
16/32/64/128/256QAM |
||
|
Bandwidth |
6~8M |
||
|
DTMBT |
Standard |
DTMB GB20600-2006 |
|
|
Constellation |
4QAM、16QAM、32QAM、64QAM |
||
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz，1kHz step |
||
|
RF output level |
-35dBm~-5dBm，0.1dB step |
||
|
ATSC |
Standard |
ATSC A/53 |
|
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
Constellation |
8VSB |
||
|
ISDBT |
Standard |
ARIB STD-B31 |
|
|
FFT |
2K |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
Hierarchical mode |
A |
||
|
Bandwidth |
6M |
||
|
System |
Web/NMS |
||
|
Chinese/English |
|||
|
Miscellaneous |
Dimensions |
482mm×300mm×42mm |
|
|
Weight |
4kg |
||
|
Temperature |
0~45℃(Operation)；-20~80℃(Storage) |
||
|
Voltage range |
AC100~240V，50/60Hz |
||
|
Power consumption |
<30W
|
||
