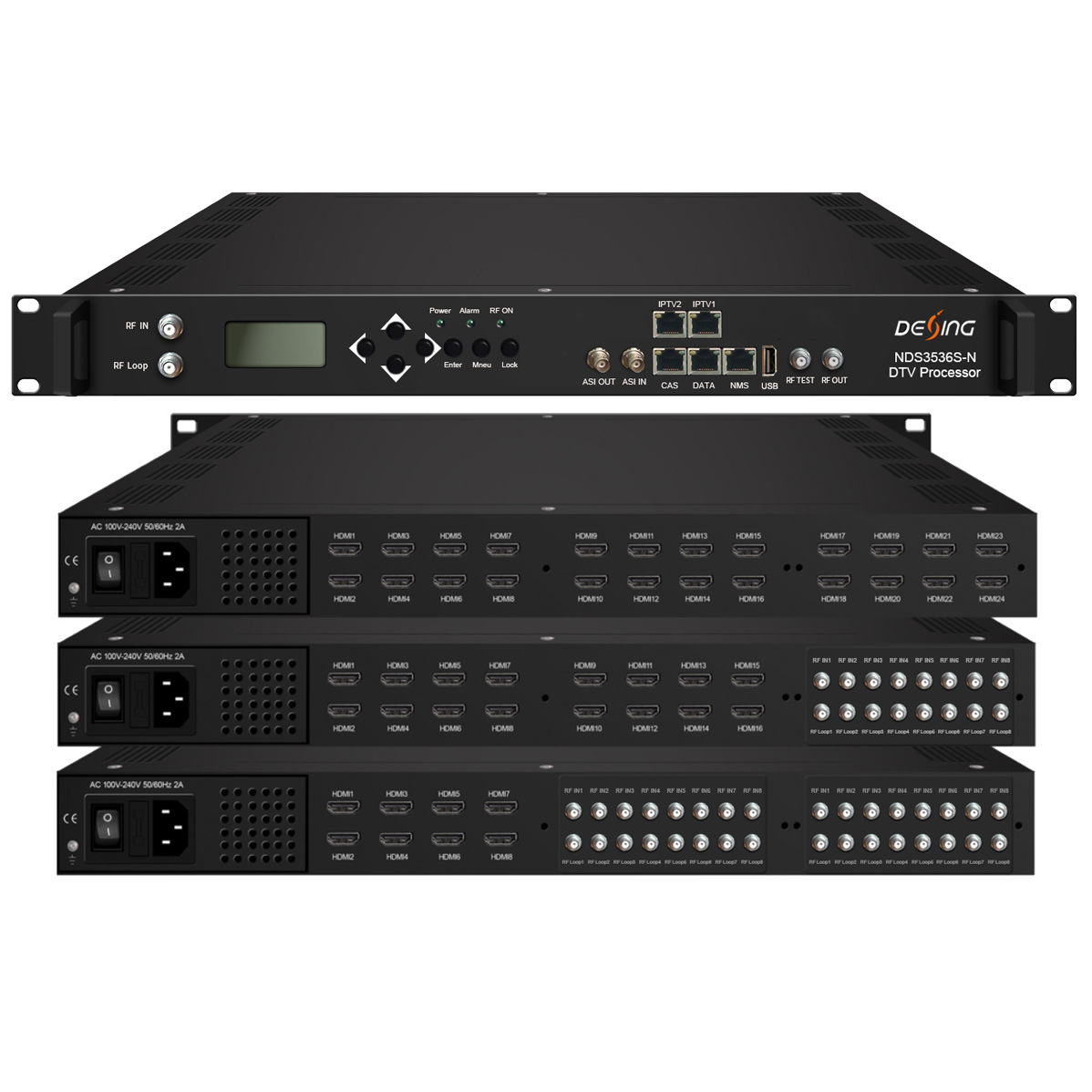

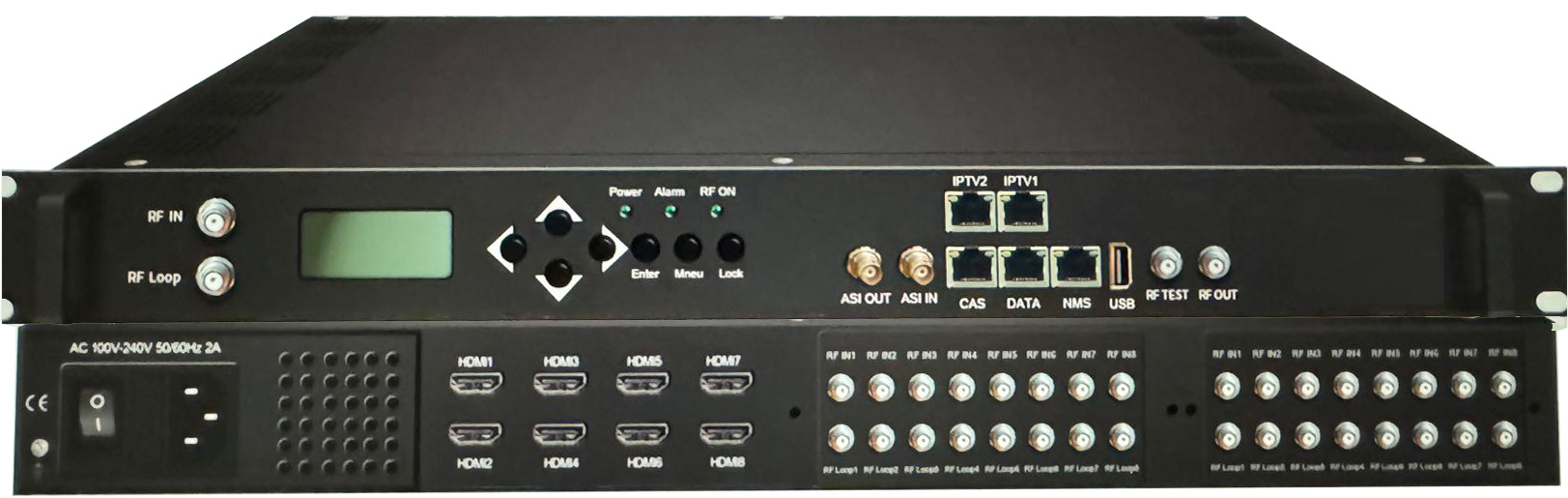

德芯NDS3536S-N Encoder Modulator iptv convert

NDS3536S-N DTV processor is a high integration dual platform which includes DVB encoder/IRD-mux-modulator and IPTV streamer in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner mix input) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports to convert the contents to IP streams out over multiple protocols to fit for internet transmission.

undefined

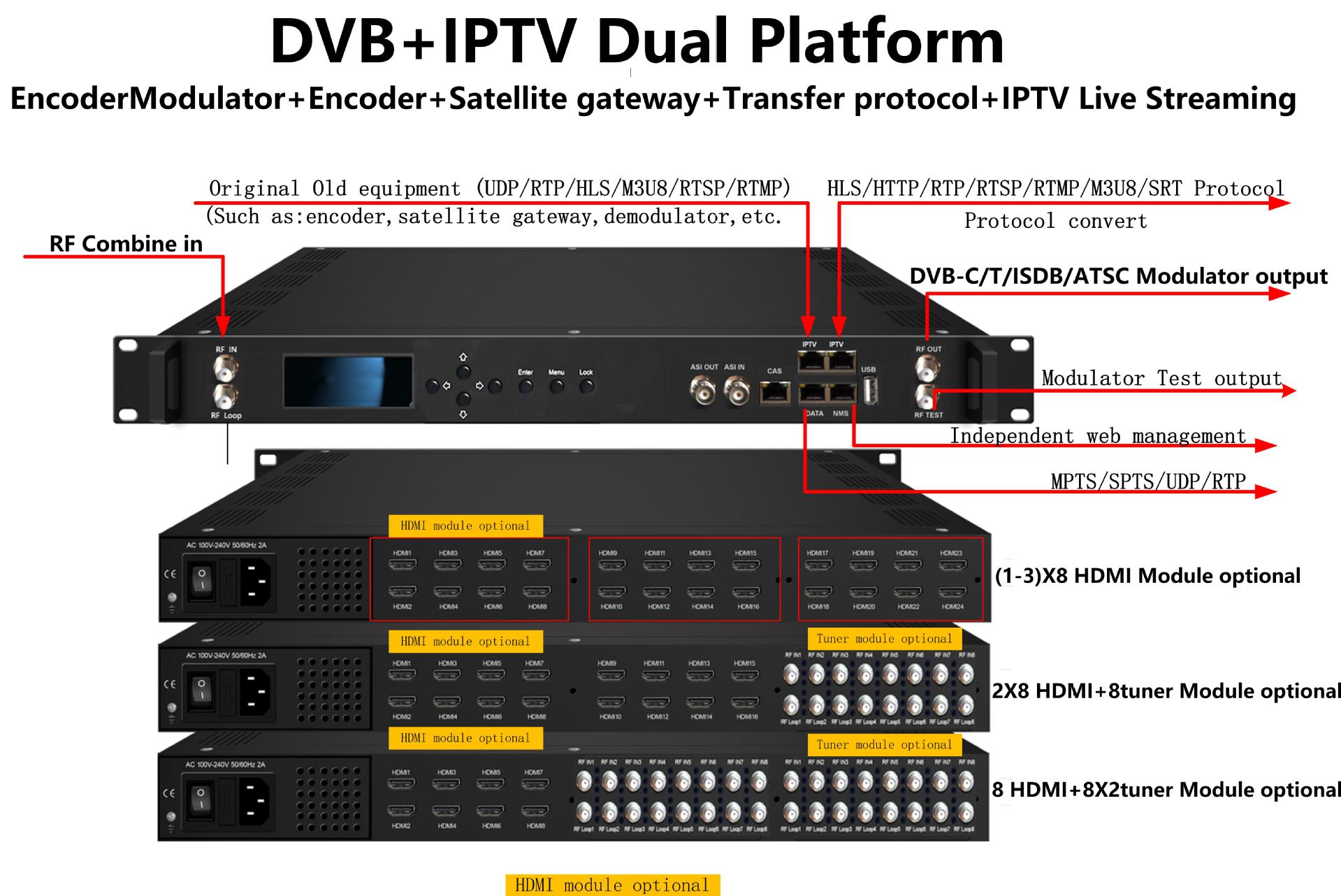

System Application

undefined

Key features

· DVB+IPTV dual platform in one case

· 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner) inputs, HEVC/H.265 & MPEG-4 AVC/H.264 Video encoding

· 1 ASI input for re-mux, TS files input by external USB disk

· Support 32ch DVB-C RF out (16ch DVB-T, 16ch ATSC, or 16ch ISDB-T out for option, as per order)

· IP input over UDP/RTP/RTSP/HLS/HTTP/SRT

· Support MPTS IP output over UDP/RTP/RTSP, and SPTS out over UDP/HLS /HTTP /RTP /RTSP /RTMP /SRT Protocol

· Support LOGO, Caption and QR code insertion for local made channels

· Control via web management, and easy updates via web

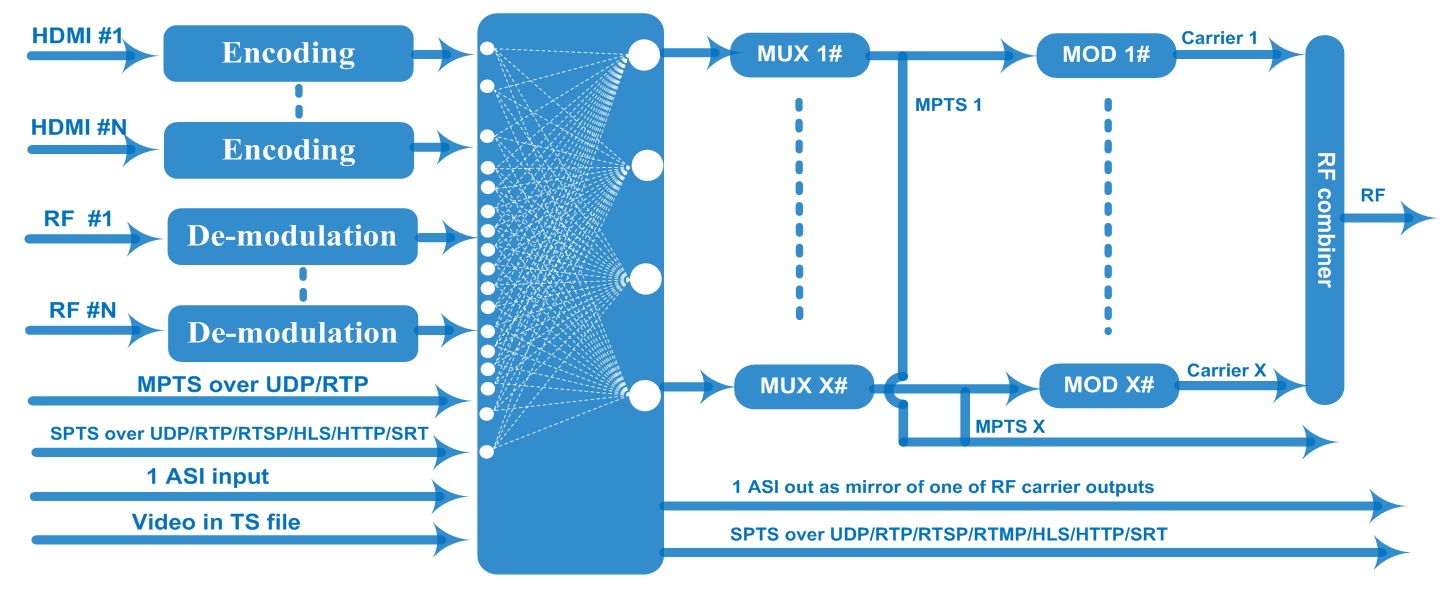

Working Block

undefined

Technical Specifications

Input	8/16/24 HDMI inputs for option (or HDMI and different Tuner mix input, details pls check below order guide) 1 ASI in for re-mux 1 USB Player input for re-mux (“xxx.ts” video) 128 MPTS IP input over UDP and RTP, GE port, RJ45 SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT
Video (HDMI Input)	Resolution	Input			1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Output			1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding	HEVC/H.265 & MPEG-4 AVC/H.264
	Bit-rate	1Mbps~13Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IP…P (P Frame adjustment)
Audio (HDMI Input)	Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
	MPEG-1 Layer 2 Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	HE-AAC Bit-rate	48/56/64/80/96/112/128 kbps
Tuner Section	DVB-S	Input Frequency		950-2150MHz
		Symbol Rate		0.5~45 Msps
		Constellation		QPSK
		FEC		1/2, 2/3, 3/4, 5/6, 7/8
	DVB-S2	Input Frequency		950-2150MHz
		Symbol Rate		QPSK/8PSK/16APSK: 0.5~45 Msps 32APSK:0.5~40 Msps
		Constellation		QPSK/8PSK/16APSK/32APSK
		FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9
		Max input bitrate		≤170 Mbps per tuner
	DVB-S2X	Symbol Rate		QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK/32APSK: 0.5~40 Msps
		Constellation		QPSK/8PSK/16APSK/8APSK/32APSK
		FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
		Max input bitrate per tuner		≤170 Mbps
	Signal Strength	-65 ~ -25dBm
Multiplexing	Maximum PID Remapping	255 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Modulation	DVB-C	Standard			EN300 429/ITU-T J.83A/B
		RF output channel			32 non-adjacent carriers output (maximum bandwidth 384MHz)
		MER			≥40db
		RF frequency			50~960MHz, 1KHz step
		RF output level			-20~+1dbm, 0.1db step
		Symbol Rate			5.0Msps~7.0Msps, 1ksps stepping
					J.83A	J.83B
		Constellation			16/32/64/128/256QAM	64/256 QAM
		Bandwidth			8M	6M
	DVB-T	Standard			EN300744
		FFT mode			2K,4K, 8K
		Bandwidth			6M, 7M, 8M
		Constellation			QPSK, 16QAM, 64QAM
		Guard Interval			1/4, 1/8, 1/16, 1/32
		Code Rate			1/2, 2/3, 3/4, 5/6, 7/8
		MER			≥42 dB
		RF frequency			50~960MHz, 1KHz step
		RF output channel			16 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20~ +1dBm, 0.1db step
	ATSC	Standard			ATSC A/53
		Bandwidth			6M
		Constellation			8VSB
		FEC			RS(208 188)+Trellis
		MER			≥40dB
		ACL			-55 dBc
		RF frequency			50~960MHz, 1KHz step
		RF output channel			16 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20~+3dbm (for all carriers), 0.5db stepping
	ISDB-T	Standard			ARIB STD-B31
		Bandwidth			6M
		Constellation			QPSK, 16QAM, 64QAM
		Guard Interval			1/32, 1/16, 1/8, 1/4
		FFT Mode			2K, 4K, 8K
		Code rate			1/2, 2/3, 3/4, 5/6, 7/8
		MER			≥40dB
		RF frequency			50~960MHz, 1KHz step
		RF output channel			16 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20dBm~+1dBm, 0.1dB stepping
MPTS output	1 ASI output as mirror of one of RF output carriers 32 MPTS output over UDP and RTP/RTSP as mirror of 32 DVB-C carriers(or 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-T/ATSC/ISDB-T carriers for option), 1*1000M Base-T Ethernet interface, GE port
SPTS output	SPTS over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT
System function	Network management (WEB)
	English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×328mm×44mm
	Environment		0~45℃(work)；-20~80℃（Storage）
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Ordering Guide

Input Section:

	HDMI	DVB-S2/S2X	DVB-C/T/T2/ISDB-T
Option 1	8	/	/
Option 2	16	/	/
Option 3	24	/	/
Option 4	8	8	/
Option 5	8	16	/
Option 6	16	8	/
Option 7	8	/	8
Option 8	8	/	16
Option 9	16	/	8
Option 10	8	8	8
Option 11	16	4	4

Output Section:

RF output standard	RF carrier channels
DVB-C out	32
DVB-T out	16
ATSC out	16
ISDB-T out	16
