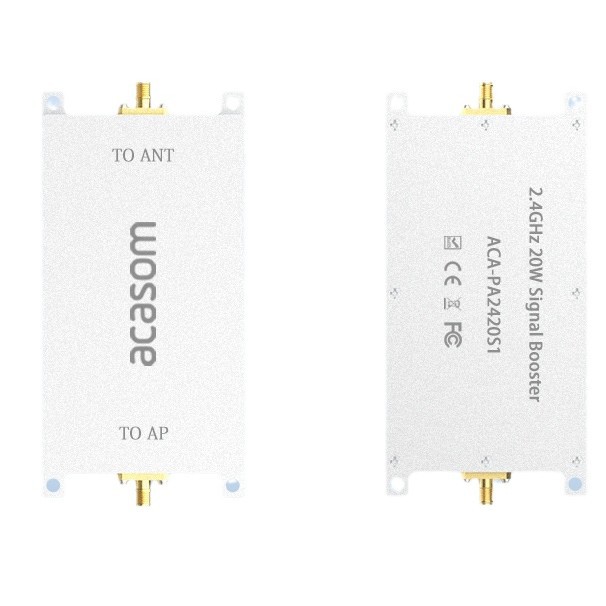

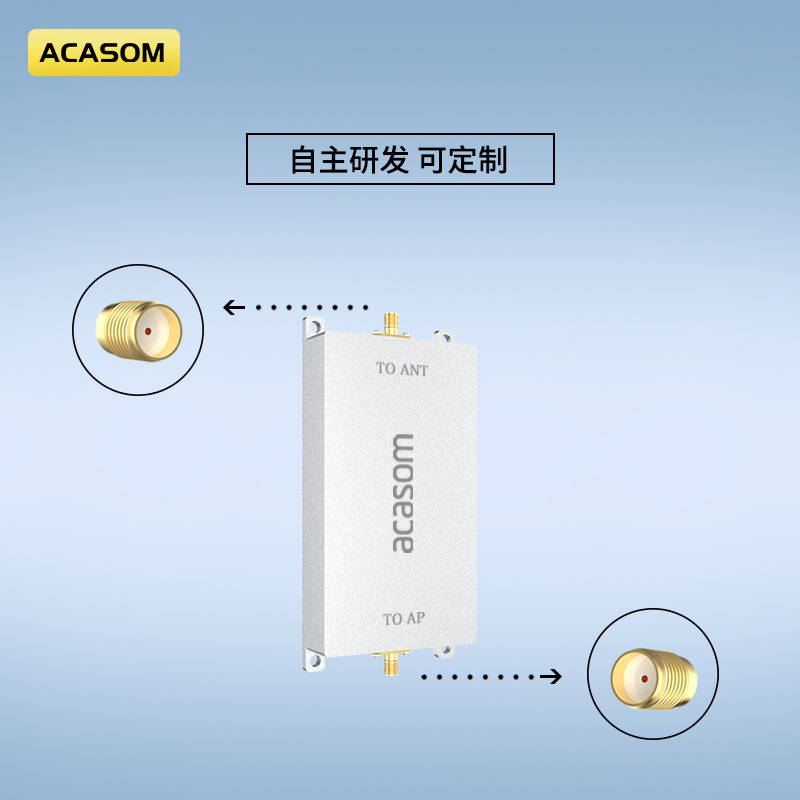

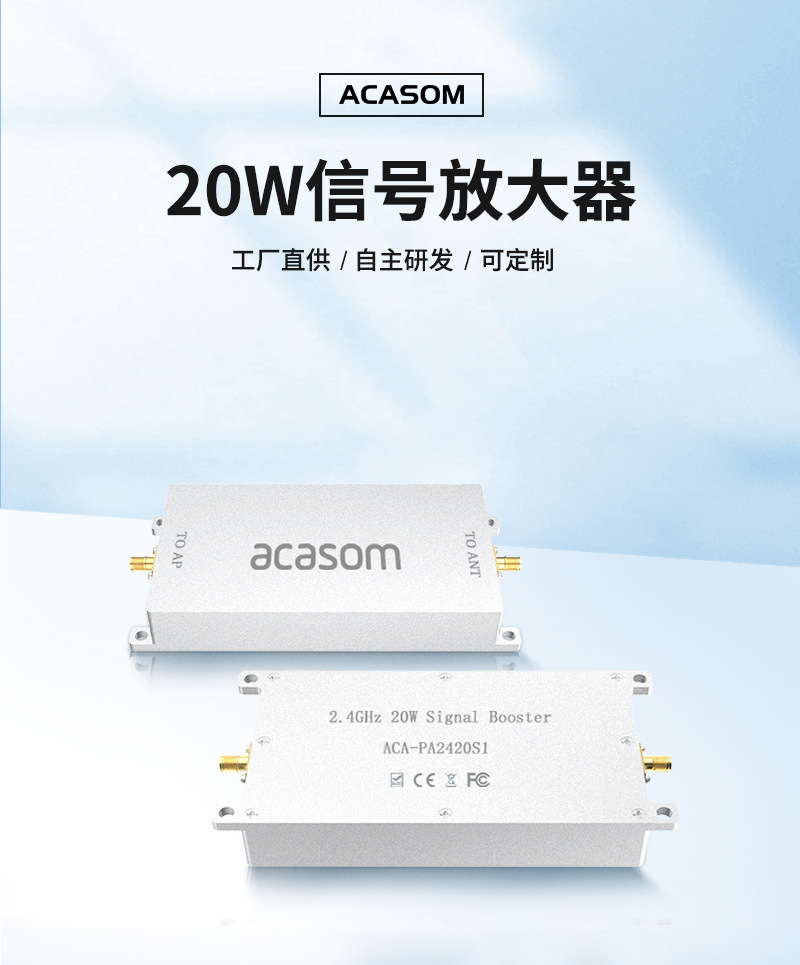

Усилитель сигнала 20W Усилитель сигнала 0.9~2.4G~5.8G и других частотных диапазонов
Offer ID: 853958648759
Оформить заказ
| Изображение | Характеристики | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | 860-930MHz 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 5655215125775 | |
📦 | 1160-1280MHz 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 5655215125776 | |
📦 | 1420-1440MHz 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 5655215125777 | |
📦 | 1.6-1.7GHz 20W | ¥1500.0 / ≈ 18 122 ₽ | 999 | 6095235326663 | |
📦 | 1.7-1.8GHz 20W | ¥1500.0 / ≈ 18 122 ₽ | 999 | 6095235326664 | |

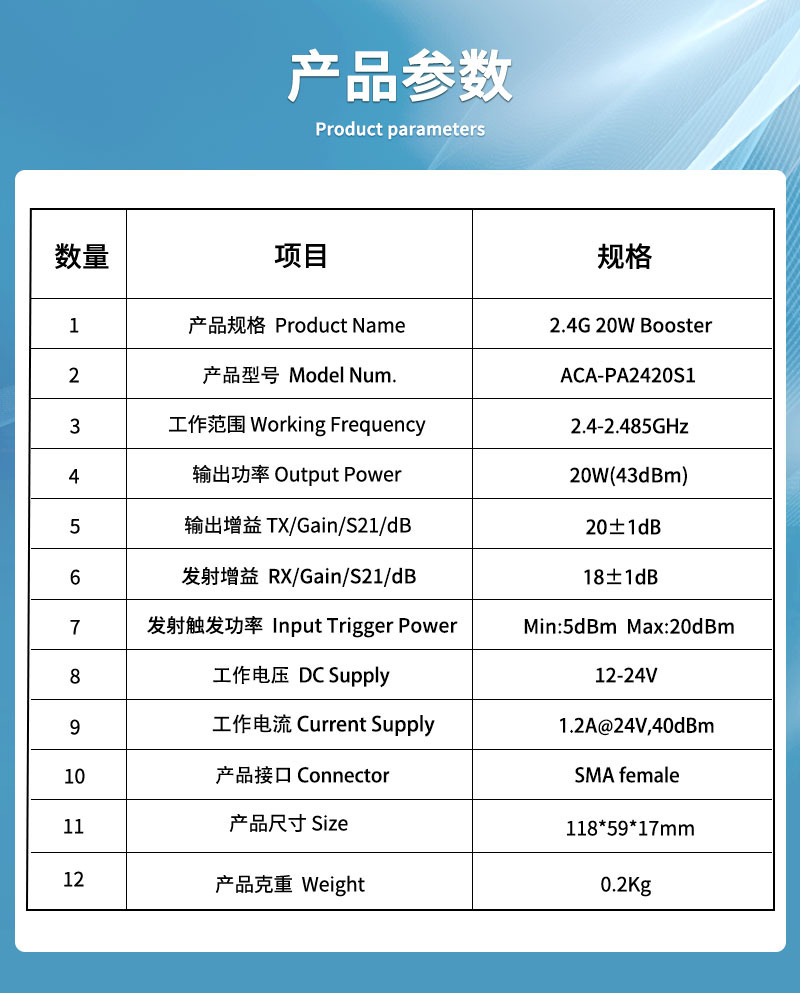

📦 | 2.4-2.485GHz 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 5655215125778 | |
📦 | 5.15-5.35GHz 20W | ¥2065.0 / ≈ 24 949 ₽ | 999 | 5655215125779 | |
📦 | 5.725-5.85GHz 20W | ¥2065.0 / ≈ 24 949 ₽ | 999 | 5655215125780 | |
📦 | 2.0-2.1G 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 6103728827644 | |
📦 | 2.1-2.2G 20W | ¥1253.0 / ≈ 15 138 ₽ | 999 | 6103728827643 | |
📦 | 1.6-1.8ghz 20w (bandwidth 200mhz) | ¥1500.0 / ≈ 18 122 ₽ | 999 | 5938169381002 | |
📦 | 1.75-1.95ghz 20w (bandwidth 200mhz) | ¥1500.0 / ≈ 18 122 ₽ | 999 | 5938169381003 | |
📦 | 2.0-2.2g 20w (bandwidth 200mhz) | ¥1500.0 / ≈ 18 122 ₽ | 999 | 6103728827645 |
Статистика продавца
Свойства товара
Описание товара
2.0-2.1G 20W 参数
Parameters
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
2000-2100MHz |
|
2 |
Operating Voltage |
12-24V |
|
3 |
Receiving Gain |
18dB±1 |
|
4 |
Transmission Gain |
19dB±1 |
|
5 |
Max Output Power(P1dB) |
|
|
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
|
7 |
EVM |
3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
|
8 |
Noise Figure |
＜2.5dB |
|
9 |
Current Supply |
2.1A@Pout 43dBm 24V |
|
10 |
TX/RX Switch Time Delay |
＜1 us |
|
11 |
LED Indicator |
Transmitter: Green; Receiver: Red |
|
12 |
Operating Temperature |
-30℃～+70℃ |
|
13 |
Storage Temperature |
-40℃～+150℃ |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |
RF Connector |
Input: SMA-K; Output: SMA-K |
|
16 |

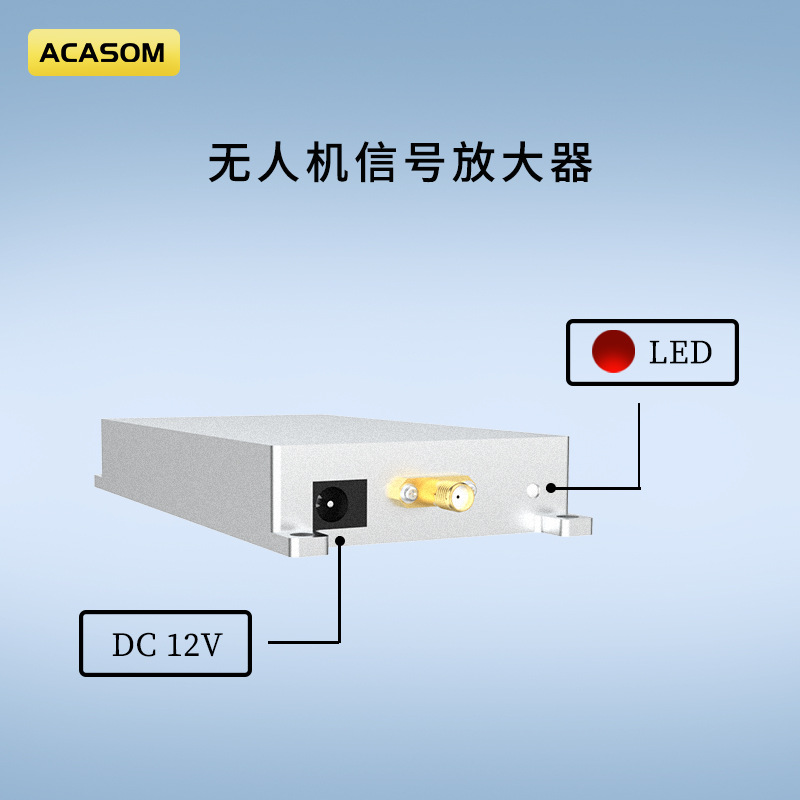

Power Socket |
5.5*2.1mm |
|
17 |

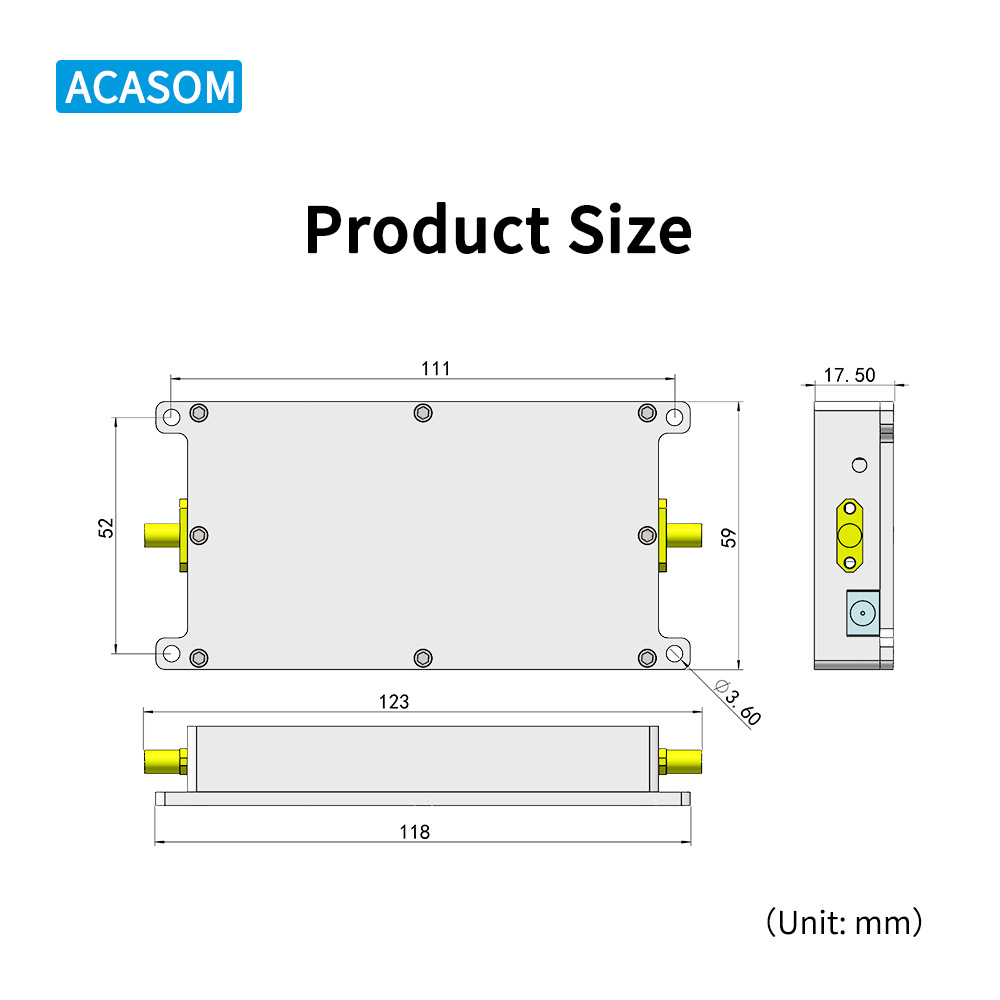

Shell Size |
118*59*17.5(mm) |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.27Kg |

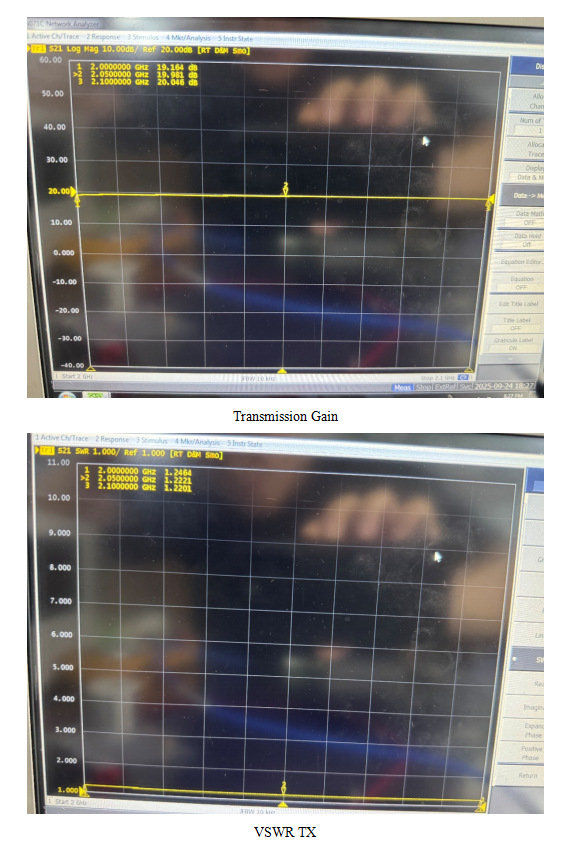

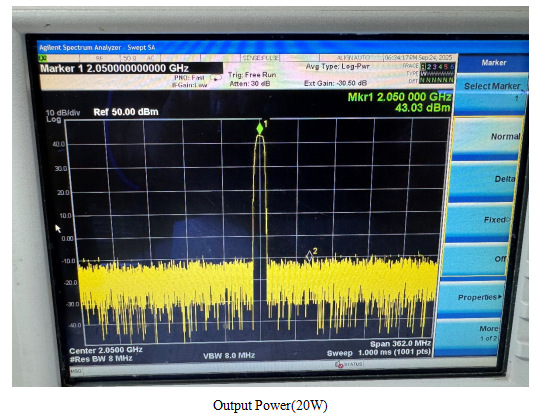

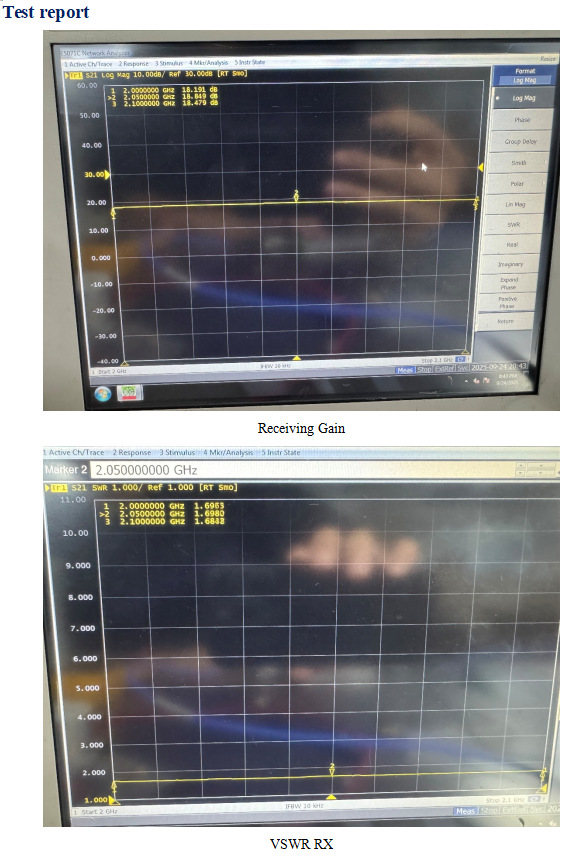

2.0-2.1G 20W 测试图
2.1-2.2G 20W 参数
Parameters
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
2100-2200MHz |
|
2 |
Operating Voltage |
12-24V |
|
3 |
Receiving Gain |
18dB±1 |
|
4 |
Transmission Gain |
19dB±1 |
|
5 |
Max Output Power(P1dB) |
|
|
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
|
7 |
EVM |
3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
|
8 |
Noise Figure |
＜2.5dB |
|
9 |
Current Supply |
2.1A@Pout 43dBm 24V |
|
10 |
TX/RX Switch Time Delay |
＜1 us |
|
11 |
LED Indicator |
Transmitter: Green; Receiver: Red |
|
12 |
Operating Temperature |
-30℃～+70℃ |
|
13 |
Storage Temperature |
-40℃～+150℃ |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |
RF Connector |
Input: SMA-K; Output: SMA-K |
|
16 |
Power Socket |
5.5*2.1mm |
|
17 |
Shell Size |
118*59*17.5(mm) |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.27Kg |
2.1-2.2G 20W 测试图
2.0-2.2G 20W 参数
Parameters
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
2000-2200MHz |
|
2 |
Operating Voltage |
12-24V |
|
3 |
Receiving Gain |
19dB±1 |
|
4 |
Transmission Gain |
19dB±1 |
|
5 |
Max Output Power(P1dB) |
|
|
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
|
7 |
EVM |
3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
|
8 |
Noise Figure |
＜2.5dB |
|
9 |
Current Supply |
2.1A@Pout 43dBm 24V |
|
10 |
TX/RX Switch Time Delay |
＜1 us |
|
11 |
LED Indicator |
Transmitter: Green; Receiver: Red |
|
12 |
Operating Temperature |
-30℃～+70℃ |
|
13 |
Storage Temperature |
-40℃～+150℃ |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |
RF Connector |
Input: SMA-K; Output: SMA-K |
|
16 |
Power Socket |
5.5*2.1mm |
|
17 |
Shell Size |
118*59*17.5(mm) |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.27Kg |
2.0-2.2G 20W 测试图
