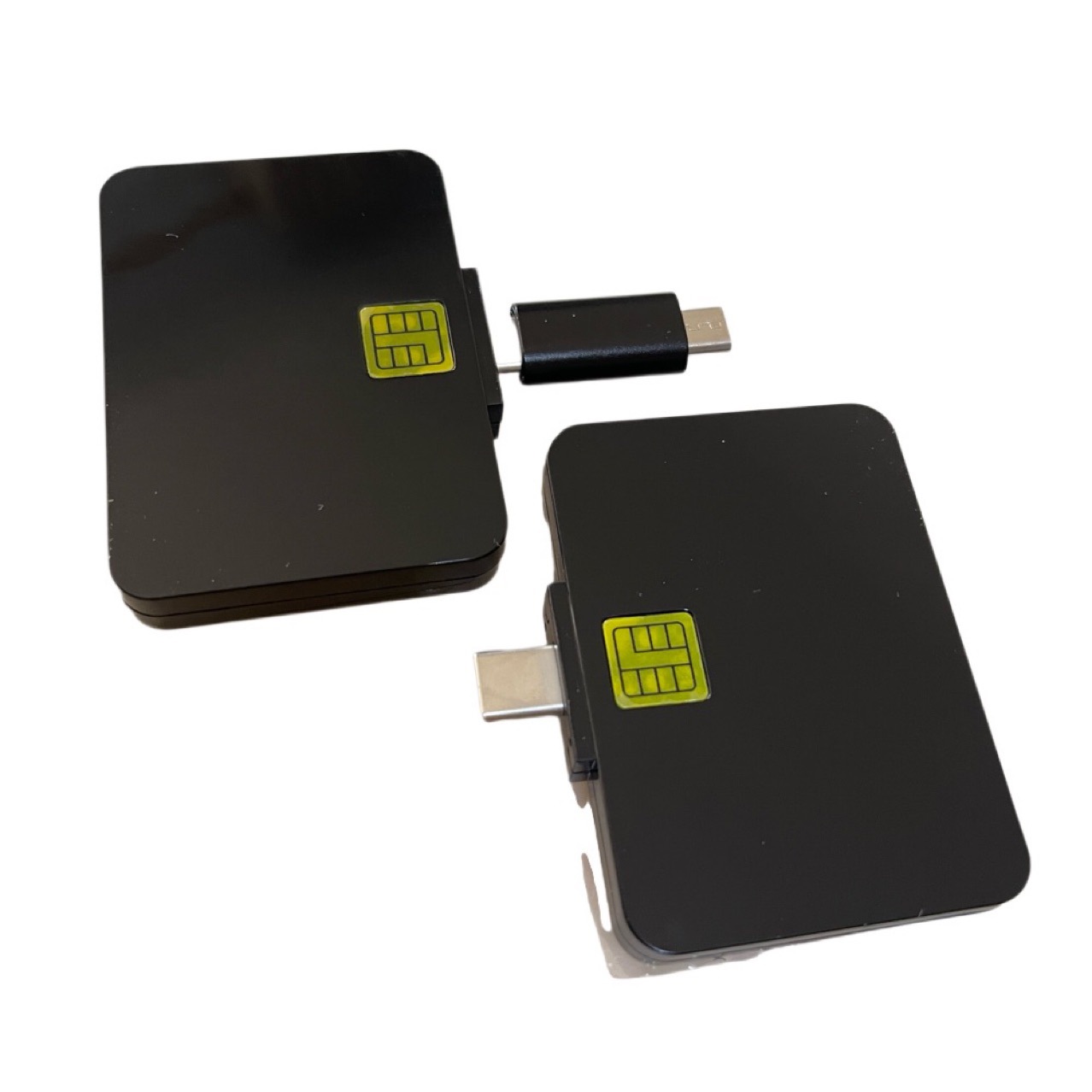

Type-Ciso7816Smartcardreadern88C Smart Card Reader Sim Editor Portable

Type-C ISO7816 смарт-картридер N88C портативный считыватель смарт-карт

Цена

¥28.00 - ¥58.00 / ≈ 332 ₽ – 687 ₽

MOQ: 2 pcs

2шт - ¥58.00 |50шт - ¥38.00 |500шт - ¥28.00

Продавец

深圳市睿杏电子有限公司

Рейтинг

0

Продано

0

Всего

В наличии

2000

SKU суммарно

Offer ID: 758649001530

Открыть на 1688 →

Оформить заказ

Цвет:

Изображение	Цвет	Цена (CNY / RUB)	В наличии	SKU ID	Кол-во / Корзина
📦	Black	2шт: ¥58.00, 50шт: ¥38.00, 500шт: ¥28.00	2000	5233094549954

Статистика продавца

4.0

Сервис

Источник: API 1688

3.0

Логистика

Источник: API 1688

4.0

Споры

Источник: API 1688

3.0

Оформление

Источник: API 1688

5.0

Консультация

Источник: API 1688

25%

Повторные покупки

Источник: API 1688

3.3

Постпродажное

Источник: API 1688

Свойства товара

Бренд FMEZY

Модель N88C

Номер товара N88C-B

Основные downstream платформы ebay, Amazon, wish, AliExpress, Independent station, LAZADA, Other

Основные торговые зоны Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East

Имеют авторизованные частные бренды Yes

Доступен ли исключительно трансграничный экспорт Yes

Описание товара

N88C(Au9560)

USB(Type-C)Smart Card Reader / write

Features

Standard Compliance
•EMV 4.0 Level 1 specification certified
•PBOC2.0 Level 1certified
•Supports USB 2.0 full speed, USB-IF certified
•Based on ISO7816 implementation
•Support PC Smart Card industry standard – PC/SC 2.0
•Support Microsoft Smart Card for Windows
•Meet Microsoft WHQL USB Smart Card Reader requirements
•Meet US Federal Information Processing Standards (FIPS) Publication 201
requirements on smart card reader interoperability
•Compatible operating system:
Windows XP/2000/Vista/Win7/Win8/Win10/Win11
Linux Redhead 9、Ubuntu 8.04、Fedora Core 9 or later version

Mac.9 X or above

Android 4.1 or above

N88C

Technical Data

Interfaces
Host	USB-C Adapter: Type-C To USB-A	• Full speed USB 2.0 (12 Mbps) • USB-C Bus powered device • CCID compliant • ICC≤45mA
Smart Card	Contact	Features •Support single slot; •Support T0, T1 protocol •Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM •Support ISO7816 Class A, B and C (5V/3V/1.8V) card •Implemented as an USB full speed device with bulk transfer endpoint, Mass Storage endpoint •Built-in PLL for USB and Smart Card clocks requirement •Support EEPROM for USB descriptors customization (PID/VID/ Manufacturer / Product/Serial Number), Direct Web Page Link, and accessing memory card module.(Need add EPROM (AT24C**) •EEPROM programmable via USB interface •Support software update for memory card module •Support Direct Web Page Link via configuration in external EEPROM •Support short APDU and extended APDU •Compatible with Microsoft USB-CCID driver •Support remote wake up through inserting card/removing card •Support USB selective suspend •Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode) •Support card power over current protection mechanism •Built in resonator. •Support USB LPM (Link Power Management) features. •Embedded clock source.
Human	optical	• Red / Blue LED,
Software	API	• PC/SC • CT-API (thru wrapper on top of PC/SC)
Operating Systems		• Windows® 7, 8.1,10,11 (32bit / 64bit) • Windows® Vista (32bit / 64bit), XP, Server 2003, 2000, ME, 98 • Windows® CE 3.0, 4.1, 4.2, 5.0, 6.0 • MacOS9.X, MacOS X or above •Solaris, •Debian GNU/Linux, RedHat Linux, •Novell Su Se Linux 32-bit (2.4.x, 2.6.x)/64-bit • Android 4.1 or above
Dimensions	L x W x H	• L 54mm * W 60mm* H 9mm
Weight	[g]	• 18
Operating Conditions	Temperature [°C] Humidity [ % ]	• -20°C------60 °C • 90 (non-condensing)
Approvals	Functional	• USB-IF • Microsoft® WHQL 2000, XP, Server2003, • EMV 4.0 Level 1
Approvals	Environmental	• RoHS, WEEE • REACH compliance (N88C)

Typical Applications

N88C is use Taiwan Chip AU9560, N88C is a highly integrated single chip USB Smart Card reader controller. The N88C (AU9560) supports multiple international standards including ISO7816 for IC card standard, PC/SC 2.0 for windows smart card standard, Microsoft WHQL, EMV for Euro pay MasterCard Visa standard and USB-IF CCID standard. The application of AU9560 can be generally applied to Smart Card read/write terminal device, such as ATM, POS terminal, Public-telephone, E-Commerce, personal consumption on Internet, personal certification, prepay system, loyalty system…etc.

Declaration:

This specification is produced by:

Shenzhen Ruixing Electronics Co., LTD.

This product has applied for appearance patent, imitation will be prosecuted.

Some of the above parameters are provided by the chip company.

Technical data are subject to change without notice.
