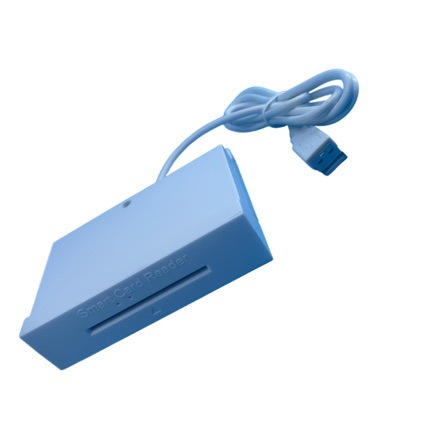

3.5Inchusbinternalsmartcardreaderwrite Built-In Smart Card Reader Is Exclusively Available for Cross-Border Use

3.5 дюйма USB внутренний смарт-картридер запись встроенный смарт-картридер исключительно для трансграничного использования

Цена

¥49.98 / ≈ 592 ₽

MOQ: 2 pcs

2шт - ¥49.98

Продавец

深圳市睿杏电子有限公司

Рейтинг

0

Продано

0

Всего

В наличии

5000

SKU суммарно

Offer ID: 755105607149

Открыть на 1688 →

Оформить заказ

Цвет:

Изображение	Цвет	Цена (CNY / RUB)	В наличии	SKU ID	Кол-во / Корзина
	White	2шт: ¥49.98	5000	5407582954105

Статистика продавца

4.0

Сервис

Источник: API 1688

3.0

Логистика

Источник: API 1688

4.0

Споры

Источник: API 1688

3.0

Оформление

Источник: API 1688

5.0

Консультация

Источник: API 1688

25%

Повторные покупки

Источник: API 1688

3.3

Постпродажное

Источник: API 1688

Свойства товара

Бренд FMEZY

Модель N98

Номер товара N98

Основные downstream платформы ebay, Amazon, wish, AliExpress, Independent station, LAZADA

Основные торговые зоны Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East

Имеют авторизованные частные бренды Yes

Доступен ли исключительно трансграничный экспорт Yes

Описание товара

N98(Au9560)

USB A Internal 3.5inch

Smart Card Reader / write

Features

Standard Compliance
•EMV 4.0 Level 1 specification certified
•PBOC2.0 Level 1 certified
•Supports USB 2.0 full speed, USB-IF certified
•Based on ISO7816 implementation
•Support PC Smart Card industry standard – PC/SC 2.0
•Support Microsoft Smart Card for Windows
•Meet Microsoft WHQL USB Smart Card Reader requirements
•Meet US Federal Information Processing Standards (FIPS) Publication 201
requirements on smart card reader interoperability
•Compatible operating system:
Windows XP/2000/Vista/Win7/Win8/Win10/Win11
Linux Redhead 9、Ubuntu 8.04、Fedora Core 9 or later version

Mac.9 X or above

Android 4.1 or above

N98

Technical Data

Interfaces
Host	USB-A	• Full speed USB 2.0 (12 Mbps) • USB-A Bus powered device • CCID compliant • ICC≤45mA
Smart Card	Contact	Features •Support single slot; •Support T0, T1 protocol •Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM •Support ISO7816 Class A, B and C (5V/3V/1.8V) card •Implemented as an USB full speed device with bulk transfer endpoint, Mass Storage endpoint •Built-in PLL for USB and Smart Card clocks requirement •Support EEPROM for USB descriptors customization (PID/VID/ Manufacturer / Product/Serial Number), Direct Web Page Link, and accessing memory card module.(Need add EPROM (AT24C**) •EEPROM programmable via USB interface •Support software update for memory card module •Support Direct Web Page Link via configuration in external EEPROM •Support short APDU and extended APDU •Compatible with Microsoft USB-CCID driver •Support remote wake up through inserting card/removing card •Support USB selective suspend •Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode) •Support card power over current protection mechanism •Built in resonator. •Support USB LPM (Link Power Management) features. •Embedded clock source.
Human	Optical	• Red / Blue LED,
Software	API	• PC/SC • CT-API (thru wrapper on top of PC/SC)
Operating Systems		• Windows® 7, 8.1,10,11 (32bit / 64bit) • Windows® Vista (32bit / 64bit), XP, Server 2003, 2000, ME, 98 • Windows® CE 3.0, 4.1, 4.2, 5.0, 6.0 • MacOS9.X, MacOS X or above •Solaris, •Debian GNU/Linux, RedHat Linux, •Novell Su Se Linux 32-bit (2.4.x, 2.6.x)/64-bit • Android 4.1 or above
Dimensions	L x W x H	•L 91mm * W 102mm * H 25.4mm
Cable		1.1m long with USB type A connector
Weight	[g]	• 128
Operating Conditions	Temperature [°C] Humidity [ % ]	• -20°C ------60 °C • 90 (non-condensing)
Approvals	Functional	• USB-IF • Microsoft® WHQL 2000, XP, Server2003, • EMV 4.0 Level 1
Approvals	Environmental	• RoHS, WEEE • REACH compliance (N99)

Typical Applications

N98 is use Taiwan Chip AU9560, N98 is a highly integrated single chip USB Smart Card reader controller. The N98 (AU9560) supports multiple international standards including ISO7816 for IC card standard, PC/SC 2.0 for windows smart card standard, Microsoft WHQL, EMV for Euro pay MasterCard Visa standard and USB-IF CCID standard. The application of AU9560 can be generally applied to Smart Card read/write terminal device, such as ATM, POS terminal, Public-telephone, E-Commerce, personal consumption on Internet, personal certification, prepay system, loyalty system…etc.

Declaration:

This specification is produced by:

Shenzhen Ruixing Electronics Co., LTD.

This product has applied for appearance patent, imitation will be prosecuted.

Some of the above parameters are provided by the chip company.

Technical data are subject to change without notice.

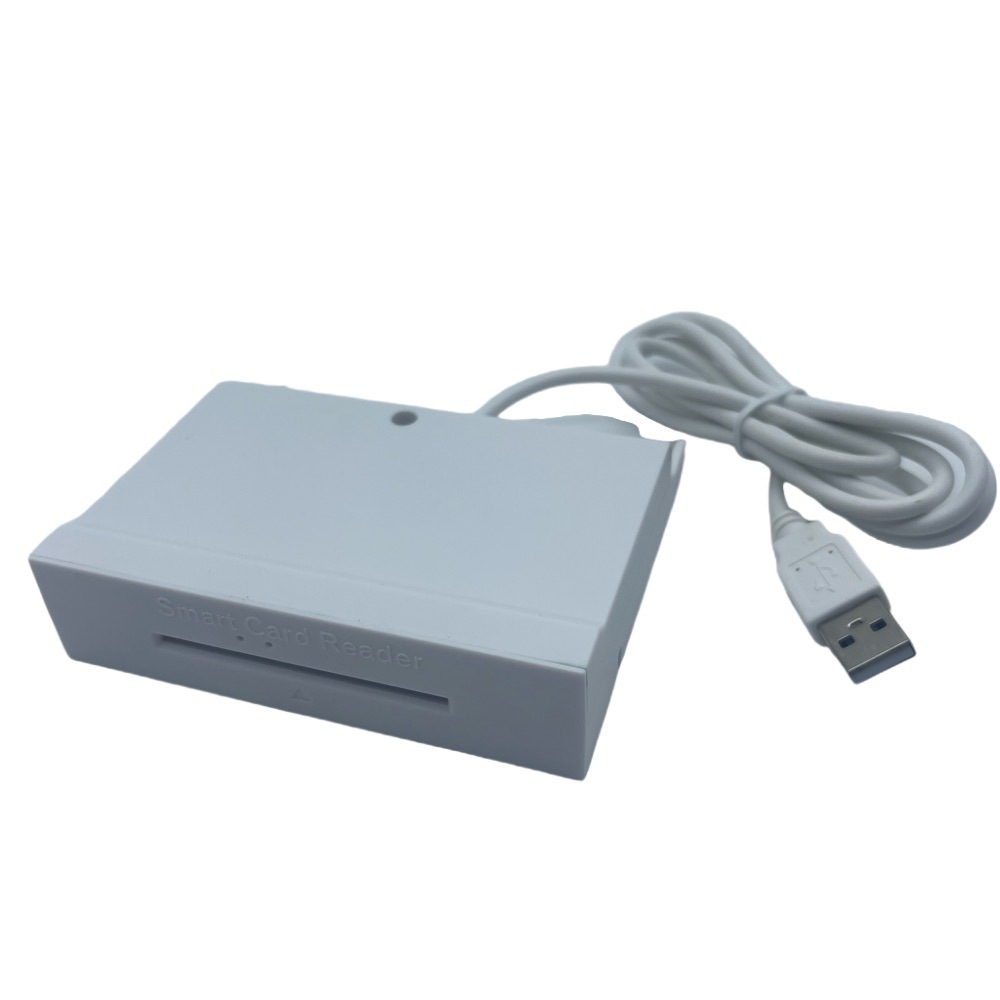

VSIR2507

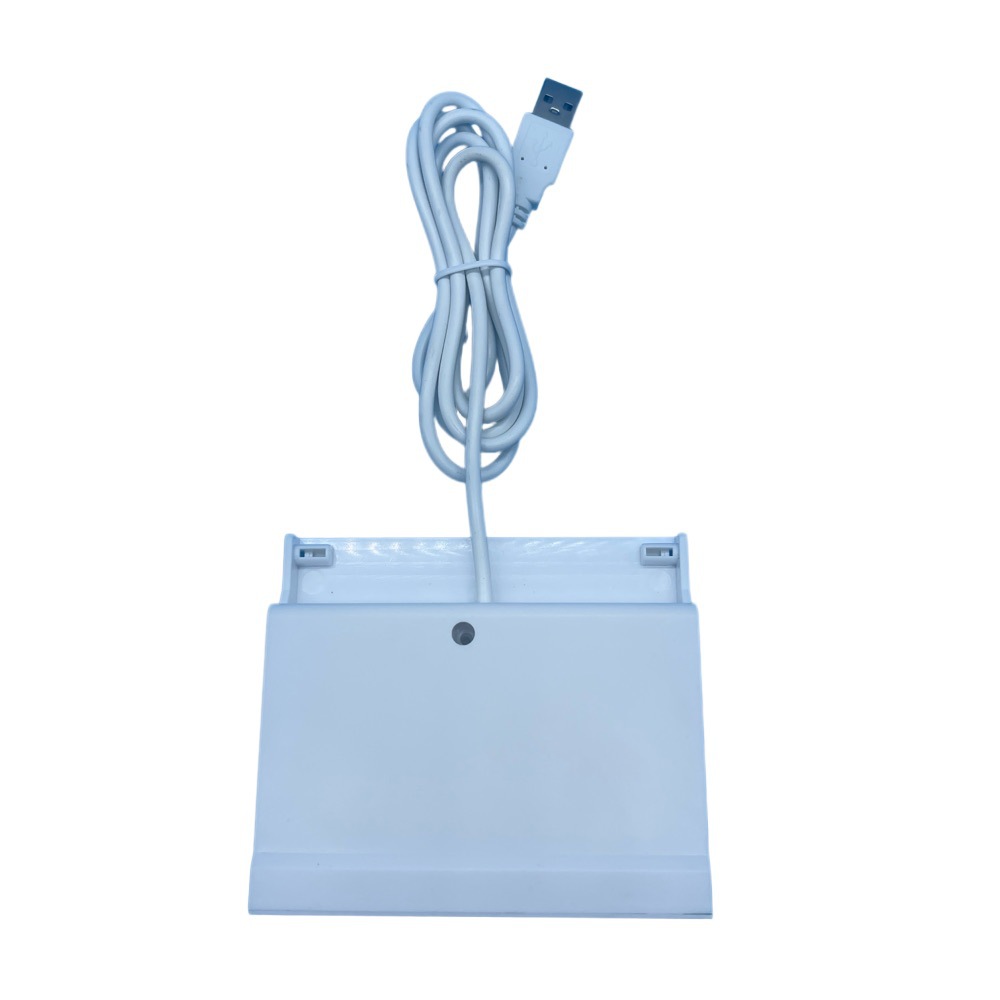

N98-12097

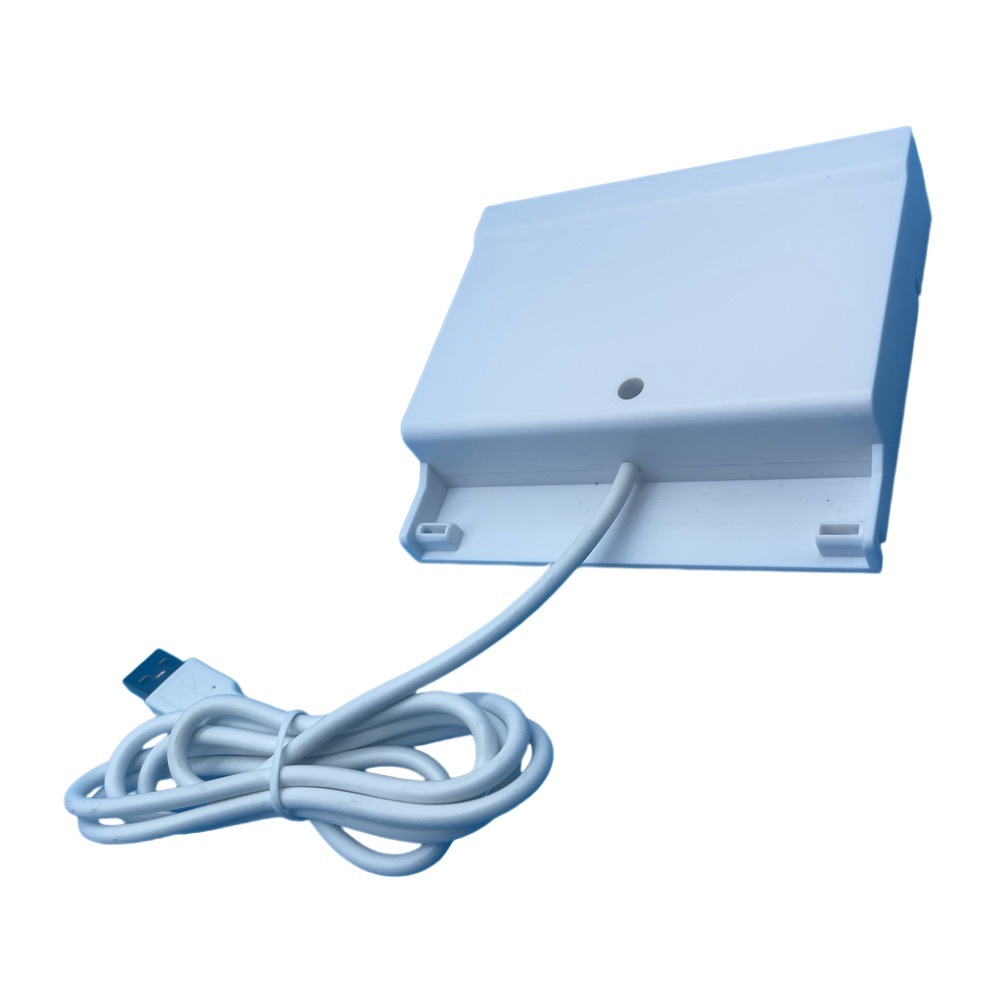

N98-12096

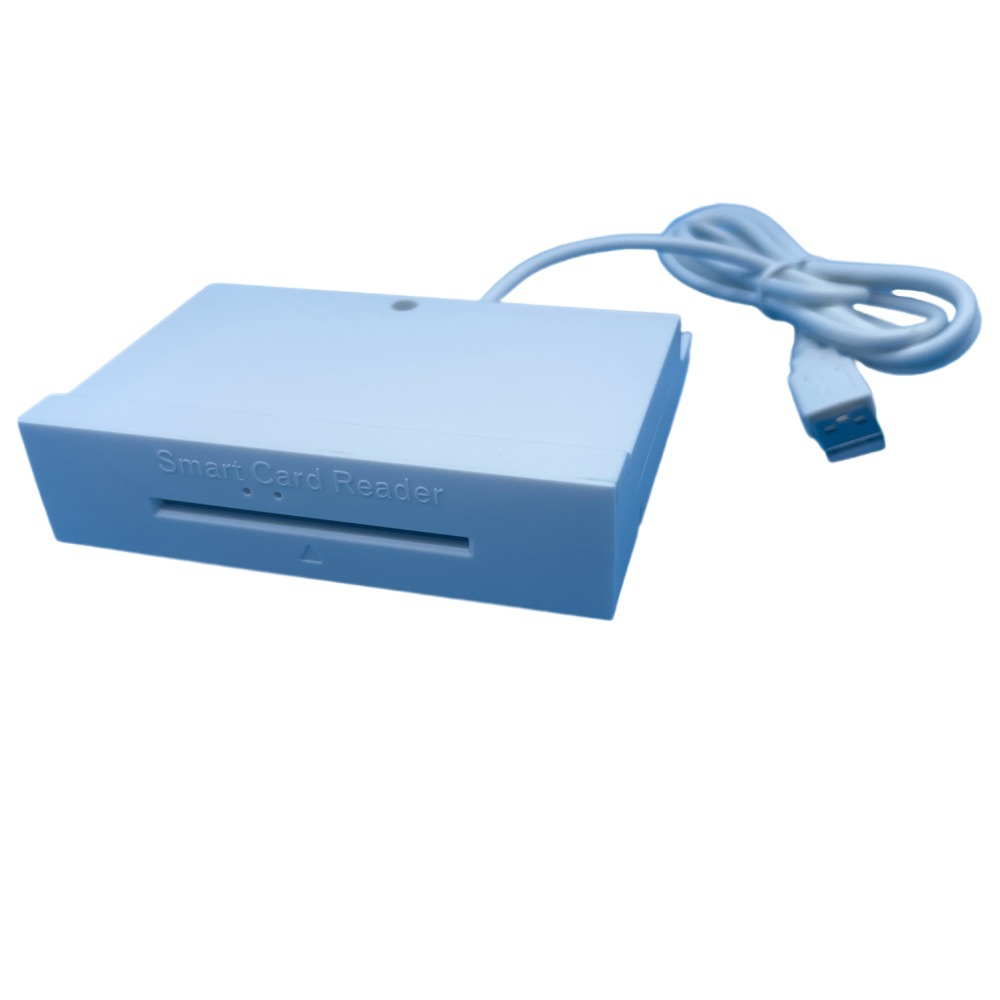

N98-12094

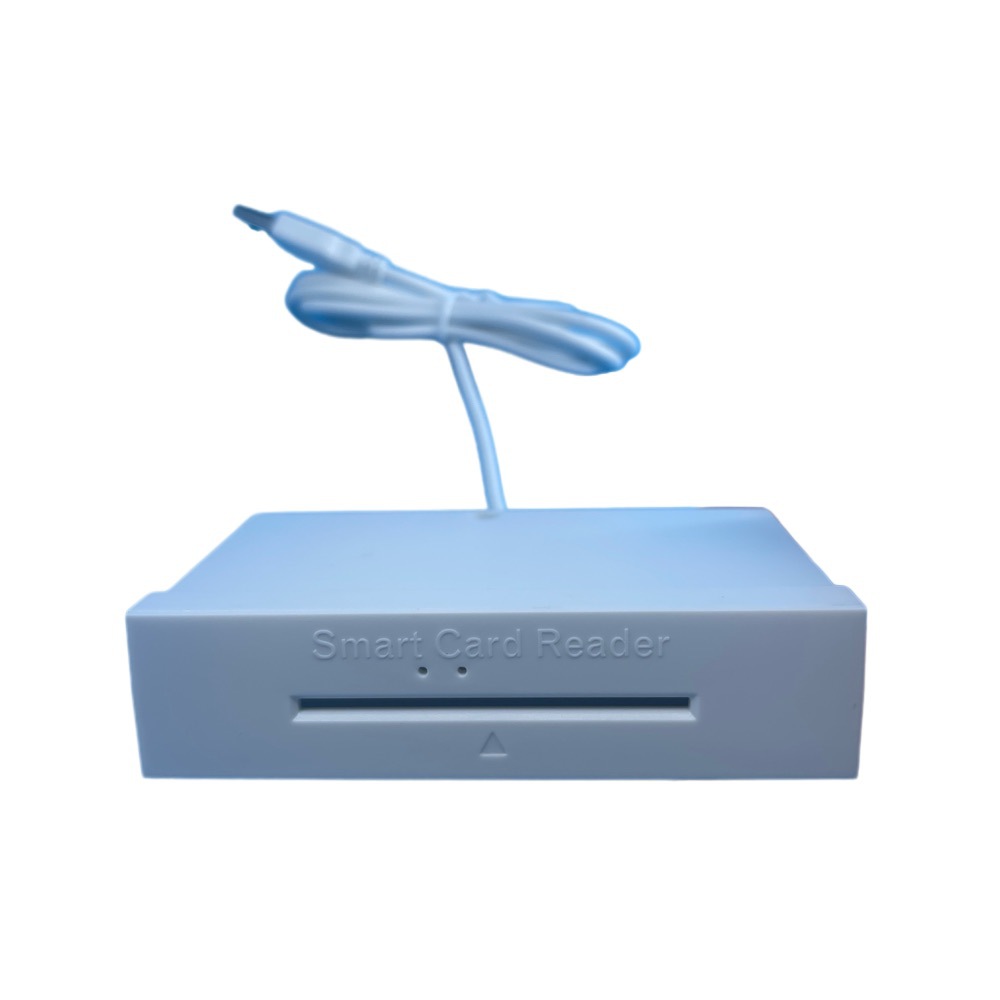

N98-12093

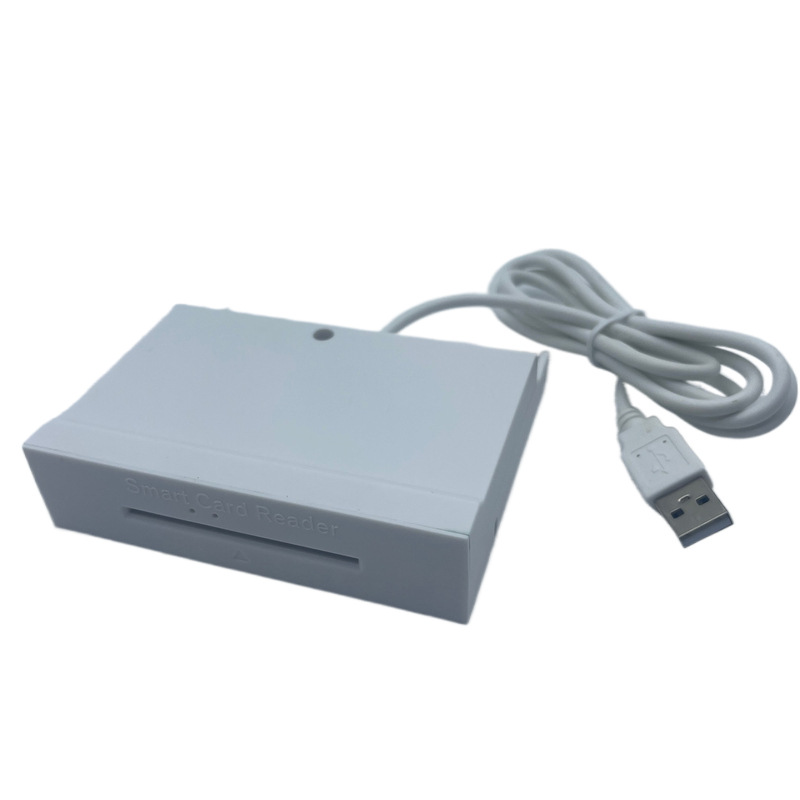

N98-2

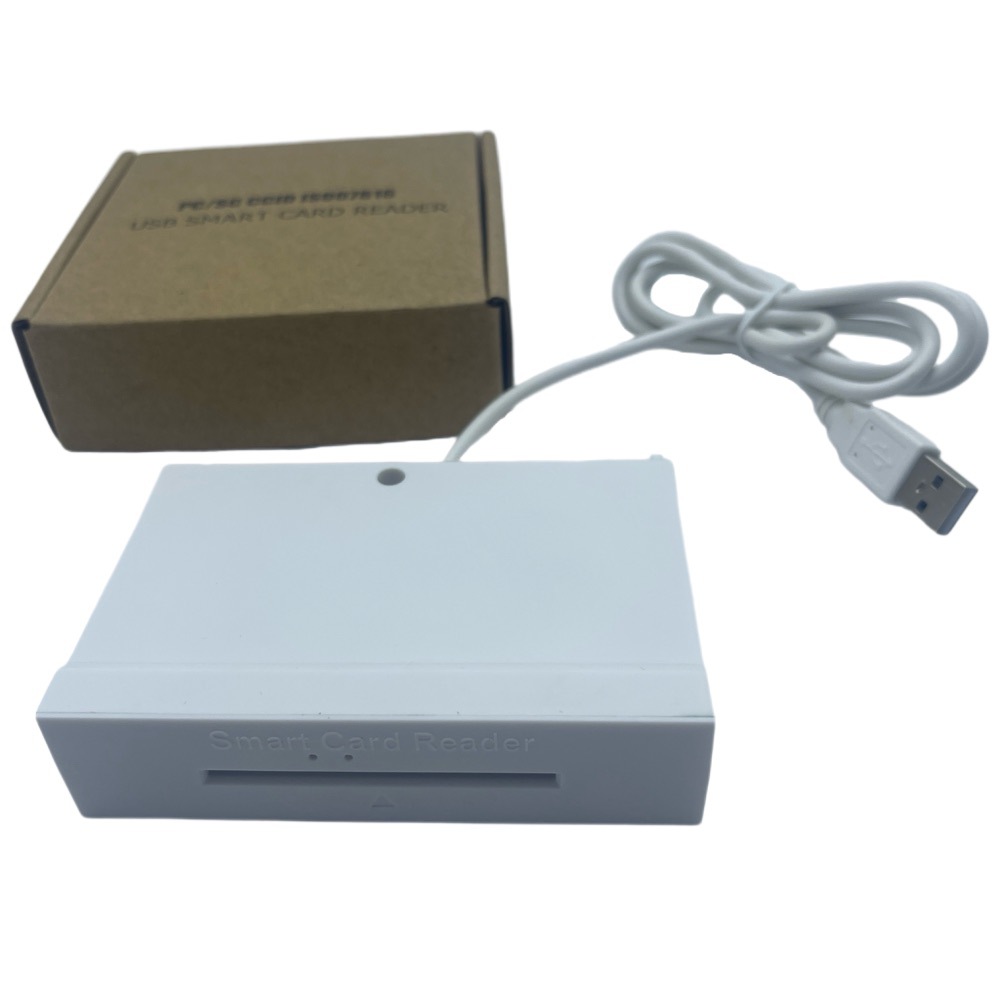

XSRL6438

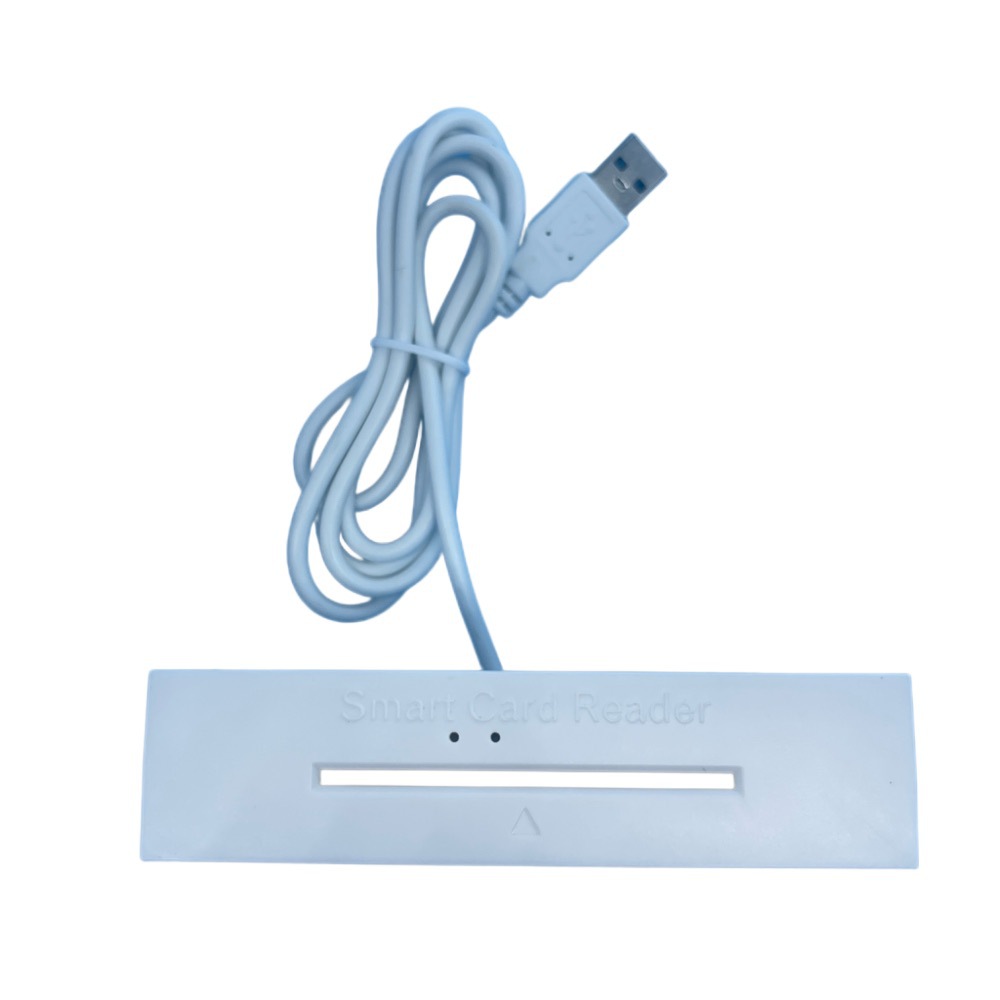

N98-12099

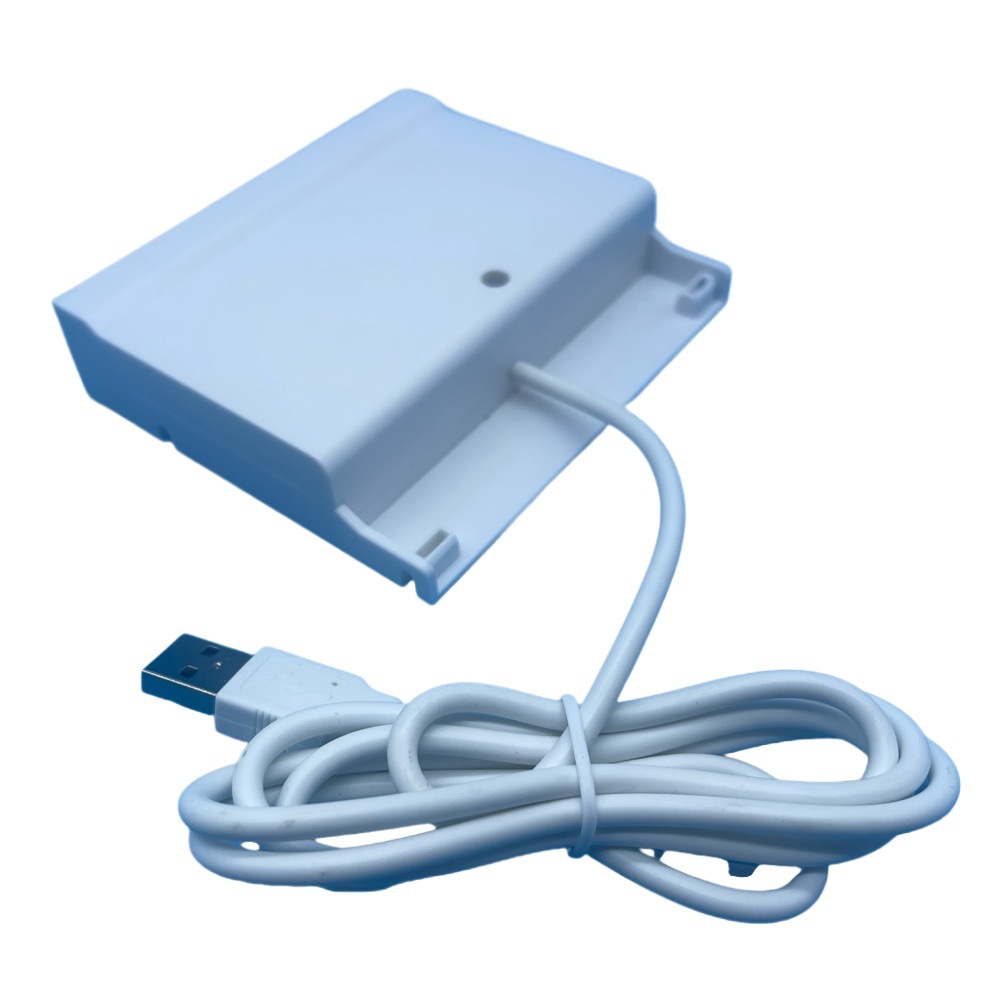

N98-12095
