TR-1KW-DC 手持便携式直流轮胎开槽器

TR-1KW-DC PORTABLE TYRE REGROOVER

设备主要特点

  轮胎开槽器主要通过高频逆变电源传输电流，在手柄中形成电阻加热开槽刀的方式对卡车或拖拉机的轮胎进行切割和开槽出纹路，恢复轮胎的抓地能力，这是一种非常实用的翻新工具，特别是对于实心卡车轮胎和其他橡胶制品的翻新和再利用。

手持式轮胎开槽器是一种操作简单、体形轻便，便于携带的小型工具，用于对各种轮胎和橡胶板进行开槽，使用和控制都非常方便。

采用全球适用AC输入电源，将交流电逆变为直流电，传输效率高、工作温度低，软启动电流、有效降低交流电传输损耗的情况；加热功率通过旋钮可实现无级可调输出，输出电压的数值可通过液晶屏显示在控制面板上。切割不同尺寸的轮胎槽，可选择使用合适的功率去切割。

高性能多功能：为满足不同类型的轮胎开槽要求，手持式轮胎开槽器配备U型和V型等10种轮胎刀片，可在橡胶上切割的宽度可从2毫米到10毫米，深度可从 9 毫米到14毫米。



Main features of equipment

The Tyre Regroover is mainly used for recutting and regrooving truck or tractor tyres using resistance heating. It is a highly useful tool for larger tyres, especially for truck solid tyres and other rubber products to regroove and reuse.



Very easy to use and control (User-friendly):

The Portable Regrooving Machine is lightweight and designed for ease of use. It's a pocket-sized tool for regrooving various types of tyres and rubber sheets.

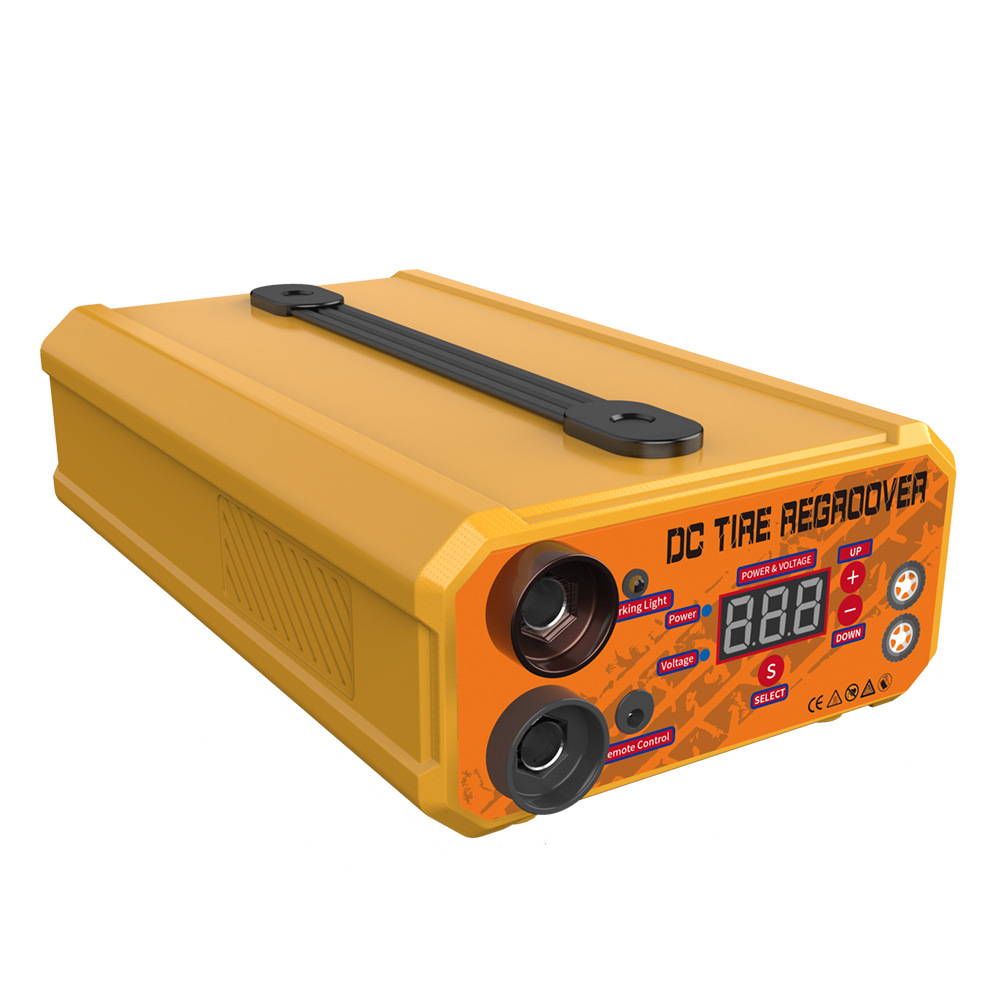

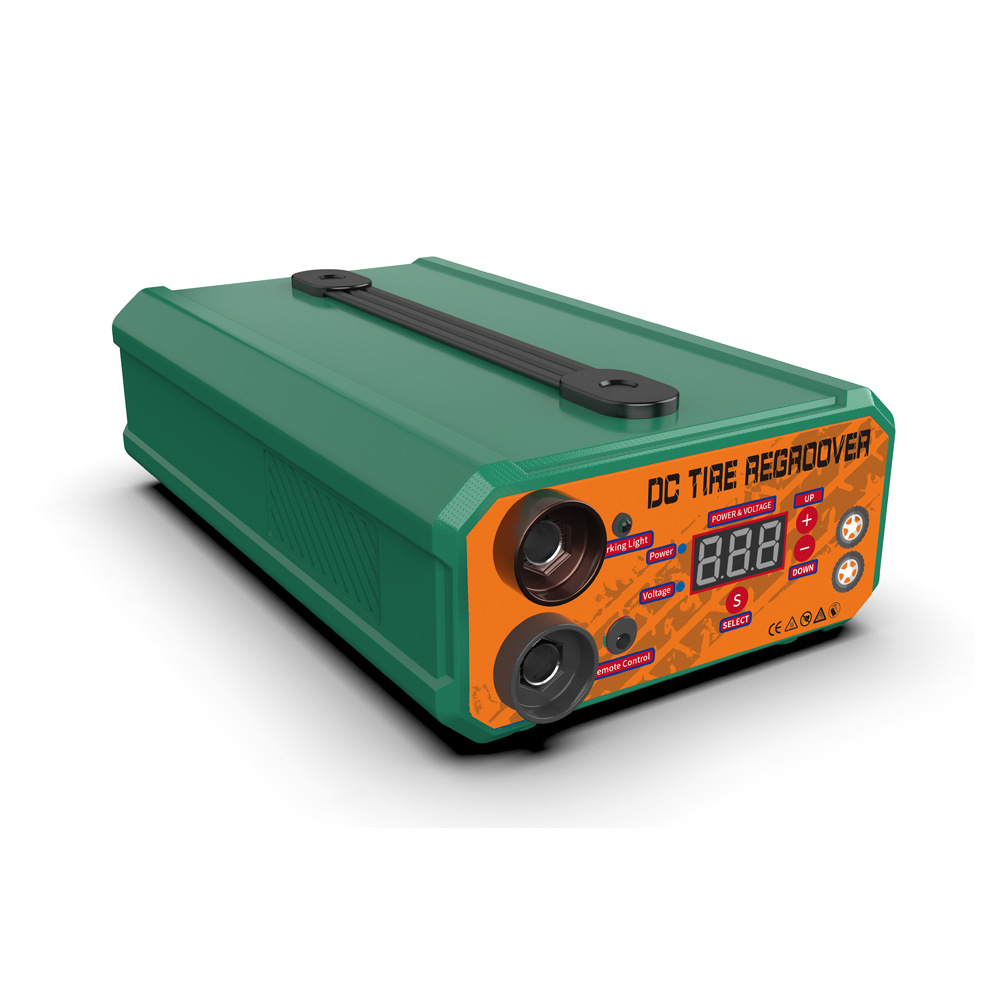

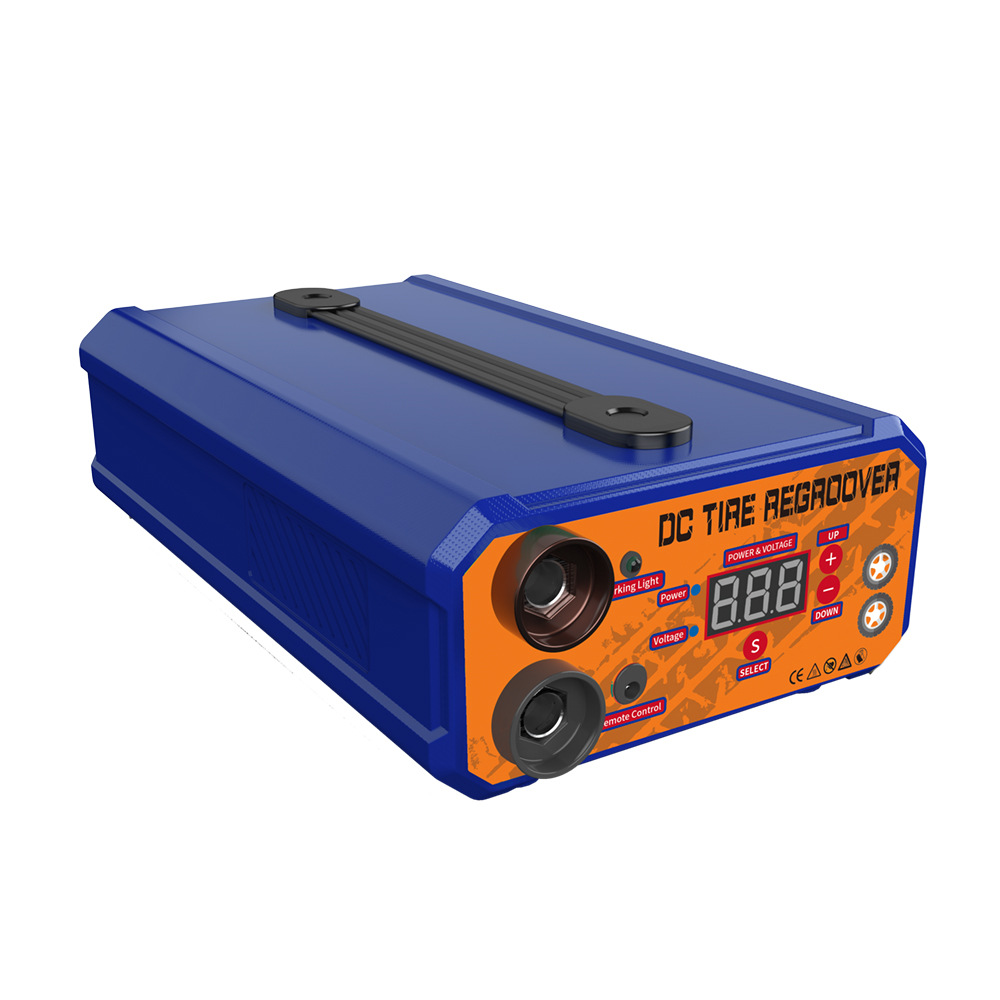

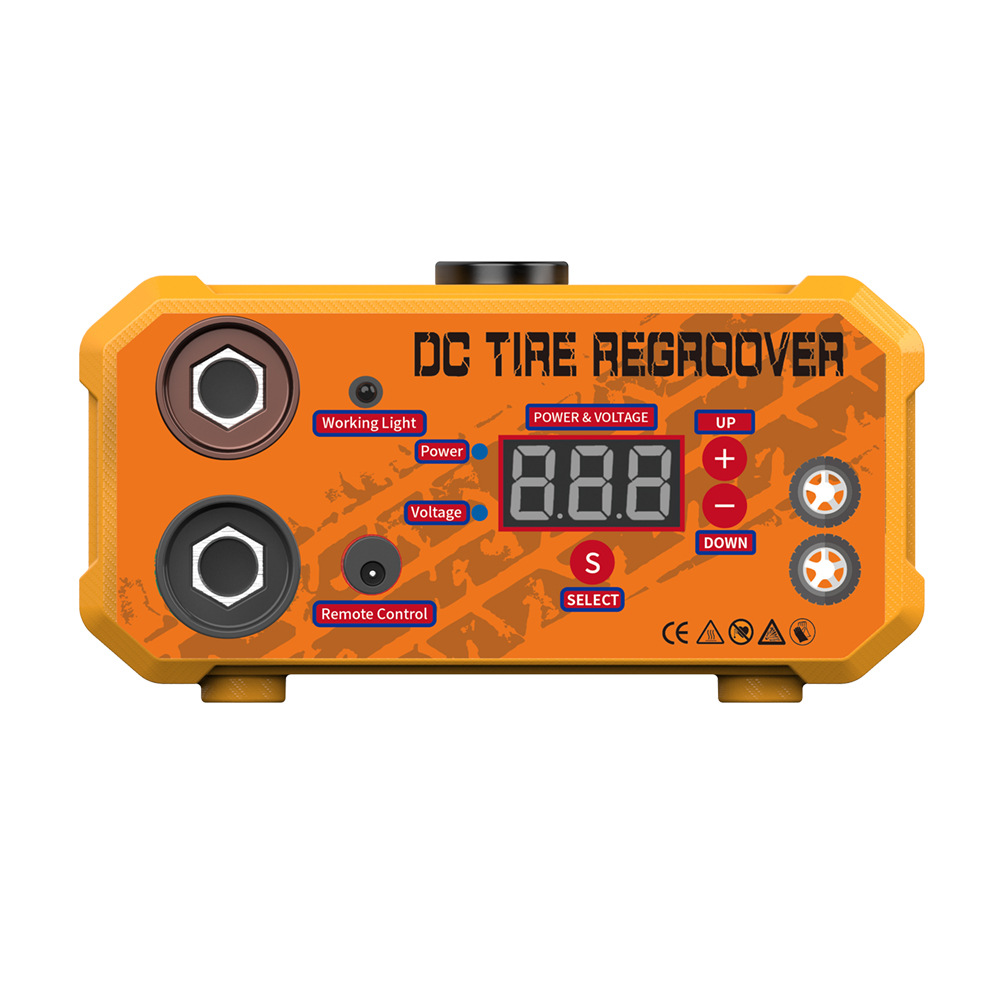

To create tyre grooves in various sizes, you can precisely adjust the heating power digitally using the stepless output voltage knob. The control panel displays the set output voltage value on an LCD screen, ensuring efficient rubber cutting.



Using globally applicable AC input power supply, high efficiency, low working temperature, and soft start current, effectively reduces AC input impact.



High performance and multi-functions:

In response to diverse tyre groove requirements, our tyre grooving equipment offers an array of 10 specialized tyre blades, including U-type and V-type blades. These blades are capable of carving grooves in rubber with widths ranging from 2 mm to 10 mm and depths spanning from 9 mm to 14 mm.











配件 Fittings Of A Machine



功能多样/Featured Function

(R-1,R-2,R-3,R-4,R-5;W-1,W-2,W-3,W-4,W-5) 如下：

橡胶的切割开槽范围：宽3-20毫米，深7-16毫米。开槽器的重量轻，刀片的单独加热控制能让使用者轻松完成橡胶切割工作。

(R-1, R-2, R-3, R-4, R-5; W-1, W-2, W-3, W-4, W-5) as following:

The cutting grooves in rubber can be from 3 to 20mm wide and 7 to 16mm deep. The low weight of the regrooving machine and individual heating control for the blades enable effortless cutting.







Cutting Blade Dimensions

轮胎切刀尺寸：

Cutting Blade Model 切刀型号		Width 宽度	Depth 深度	Quantity 数量
V形 U Type	R-1	2-3mm	9mm	2
	R-2	2-5mm	10mm	2
	R-3	5-9mm	12mm	2
	R-4	7-11mm	13mm	2
	R-5	9-14mm	14mm	2
R形 V Type	W-1	2-3mm	9mm	2
	W-2	4-6mm	11mm	2
	W-3	6-9mm	13mm	2
	W-4	8-11mm	14mm	2
	W-5	10-14mm	14mm	2



主要技术参数

Main Specifications and Parameters

设备型号 Model No.	TR-1KW-DC
输入电源Input Power Supply	AC,110V / 220V / 240 / 380V / 420V, 50/60Hz
输出电压 Output Voltage	DC, 8V
插头类型 Plug Type	Type H,Type B,Type G,Type E
最大输出功率 Max Output Power	1000W
手持连接线长度 Portable Contacting Cable Length	500CM（5M）
认证 Certificate	CE(EMC, LVD) ,CCC, ROHS
电源效率 Power Efficiency	85%
外形尺寸 Over Dimension	L:295MM*W:180MM*H:86.9MM
设备净重 Net Weight	1.85KG
