Поставка от производителя, USB, широкий диапазон напряжения, инфракрасный датчик движения, интеллектуальная светодиодная лента
Offer ID: 738845305629
Оформить заказ
| Изображение | Характеристики | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|

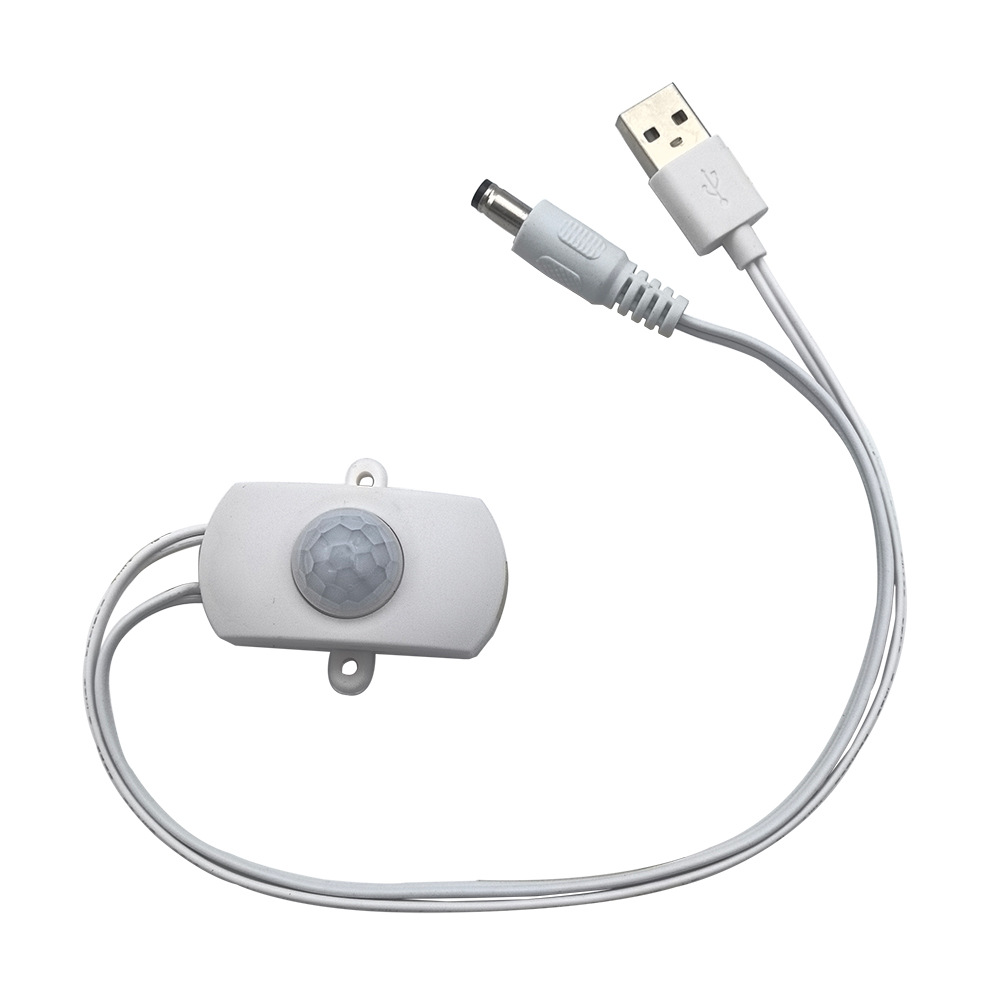

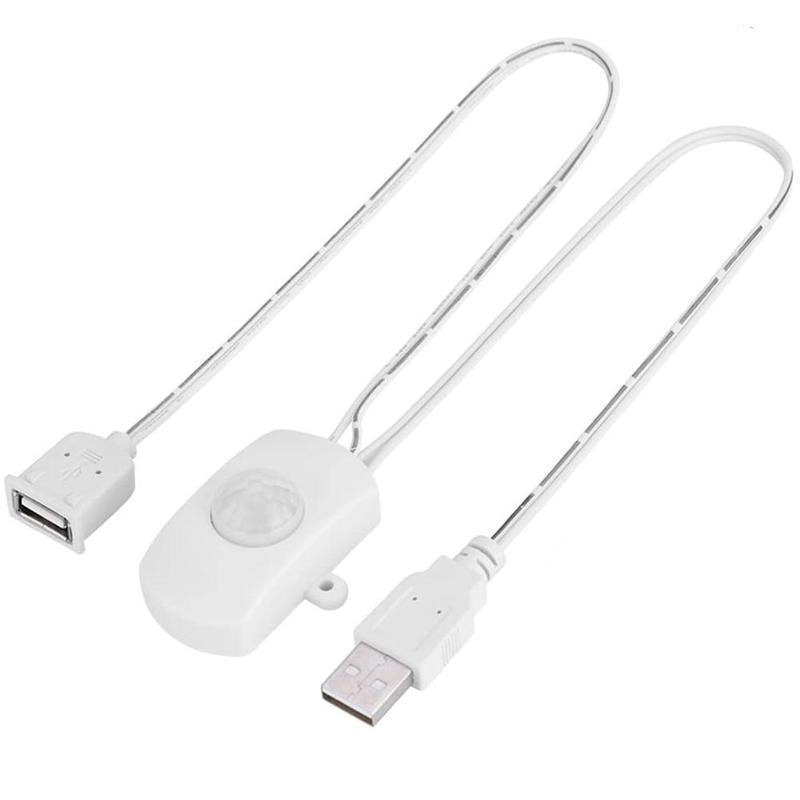

 | USB White | ¥12.3 / ≈ 146 ₽ | 2771 | 5096481484771 | |

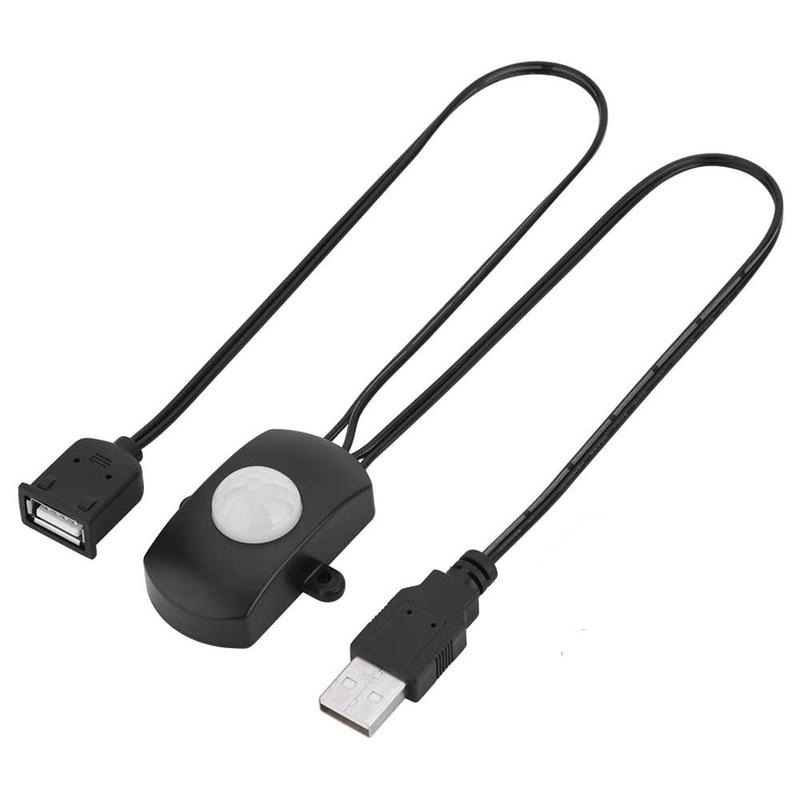

 | USB Black | ¥12.3 / ≈ 146 ₽ | 2691 | 5096481484772 | |

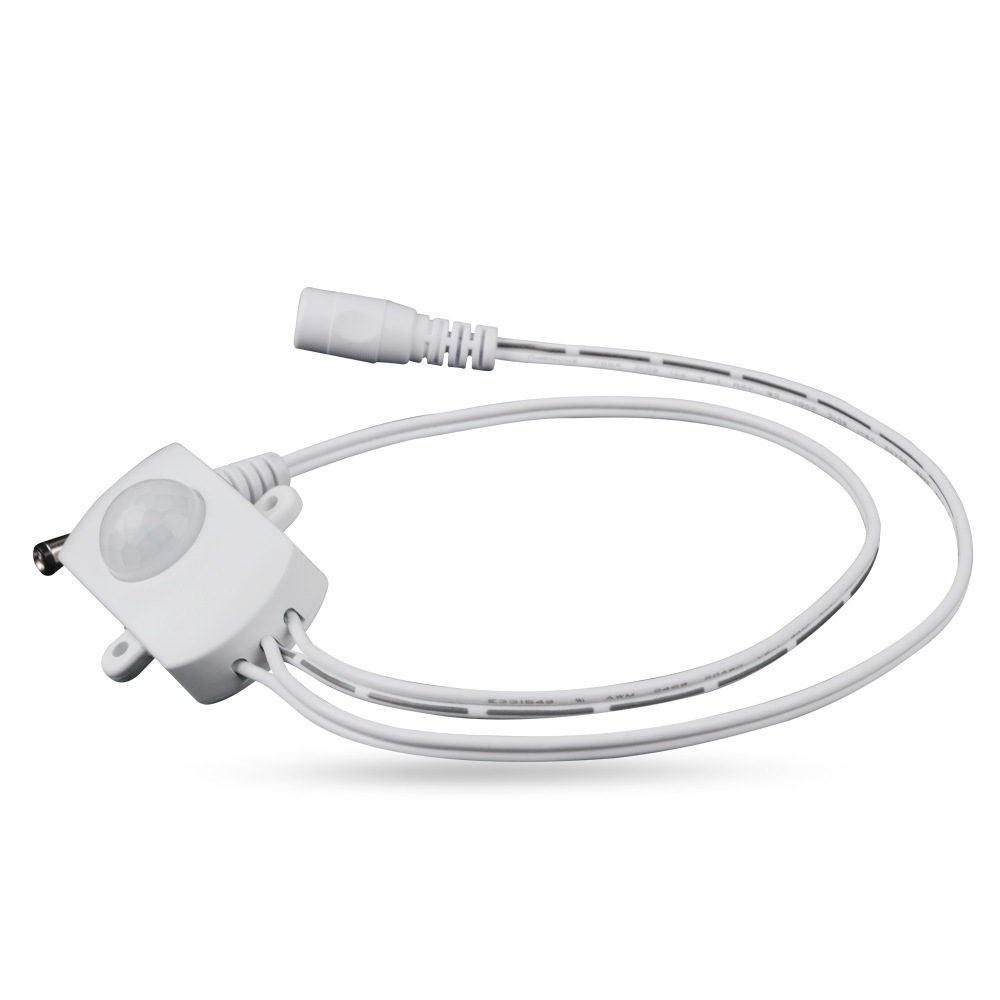

 | DC White | ¥12.2 / ≈ 144 ₽ | 3784 | 5096481484773 | |

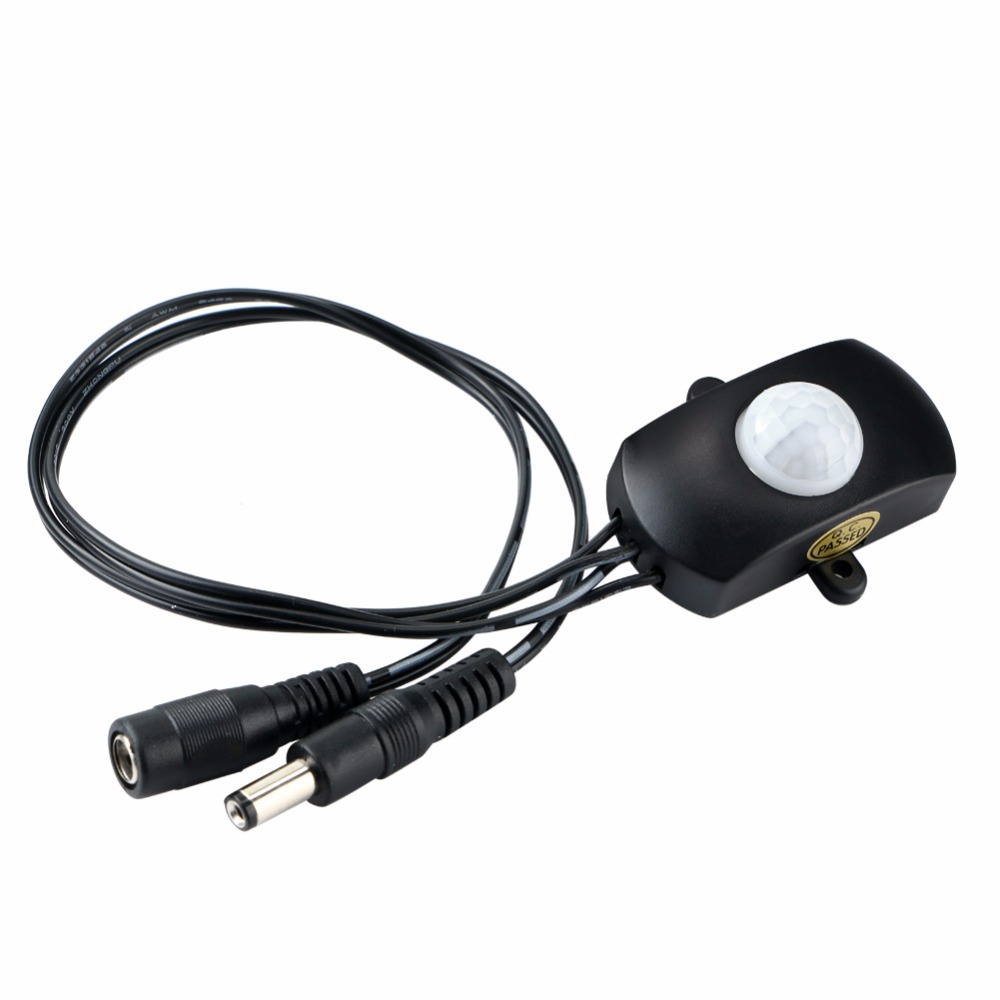

 | DC Black | ¥12.2 / ≈ 144 ₽ | 3781 | 5096481484774 | |
 | 2023-usb to dc-white | ¥12.0 / ≈ 142 ₽ | 10 | 5897065512373 |
Статистика продавца
Свойства товара
Описание товара
Description:
This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve automatic control functions. High and stable sensitivity, effectively save energy and money for you.
Features:
-
With PIR motion sensor, it can detect human movement by detecting infrared ray emitted by human body.
-

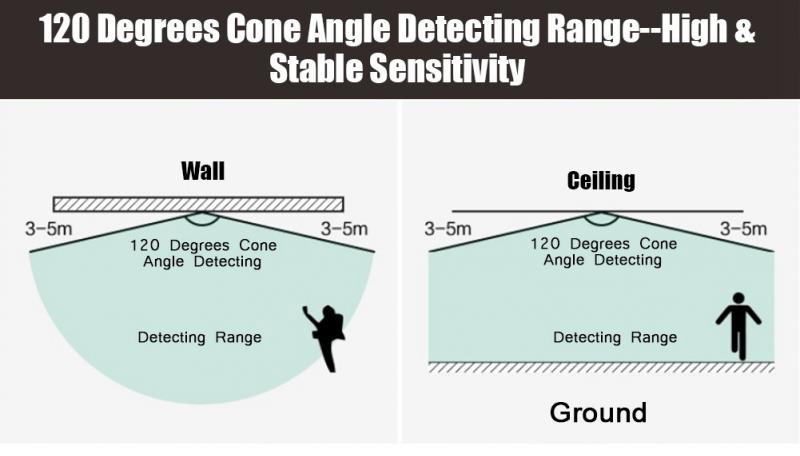

120 degrees cone angle detecting range. High and stable sensitivity, effectively save energy and improve efficiency.
-
Intelligent sensing, it will automatically delay to shut down after the person leaves.
-
Widely used on the motion-activated lighting, for automatic lighting corridors, bathrooms, basements, warehouses,garages and other places.
-
USB port make it convenient and simple to standby. Power supply via mobile phone, charging bank or other devices with USB port, Output voltage is equal to input voltage, low power consumption.
-
Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
Operating voltage: 5V-24 DC
Output current: 5A
Working temperature: -15°C~38°C
Function: Infrared human body sensor switch
Quiescent current: <50uA
Trigger mode: Continuous trigger
Output Mode: Inductive Output
Sensing distance: 5-7m
Sensing angle: 120 degrees
Induction mode: Passive
Time Range: Default setting 15s, Adjustable
Product size: 5*2.6*2.2cm/1.97*1.02*0.87inch
Power supply: by mobile phone charging, by charging bank, by computer, by notebook
Color: Black, White (Optional)
Package List:
1 * PIR Motion Sensor Switch
1 * Screws
led灯条红外感应器人体红外感应开关 可调时间 5V电压

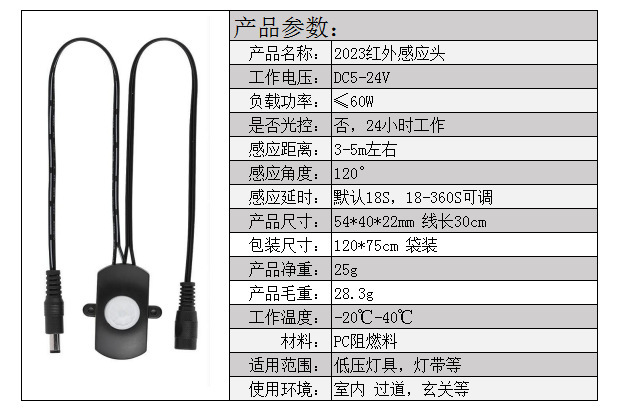

产品名称：人体感应模块
产品型号：2023
功能描述：人体红外感应模块，宽电压，输入多少伏输出就是多少伏，
工作电压：5V
工作温度：-20 °C ～ +50 °C
静态电流： < 50uA
输出电流： 5A
触发模式： 连续触发
输出模式： 感应输出
延时范围： 出厂设置15S（2-360秒可调）
感应方式： 被动式
感应角度： 120度圆锥角
感应距离： 5-7米
线长度 ： 30cm
应用范围：
1.人来输出,人离开后延时自动关闭,
2.可调延时时间（2-360秒）。
3. 适用于走廊、楼道、卫生间、地下室、仓库、车库等场所的自动照明、排气扇的自动抽风以及其它电器的自动控制等功能.
