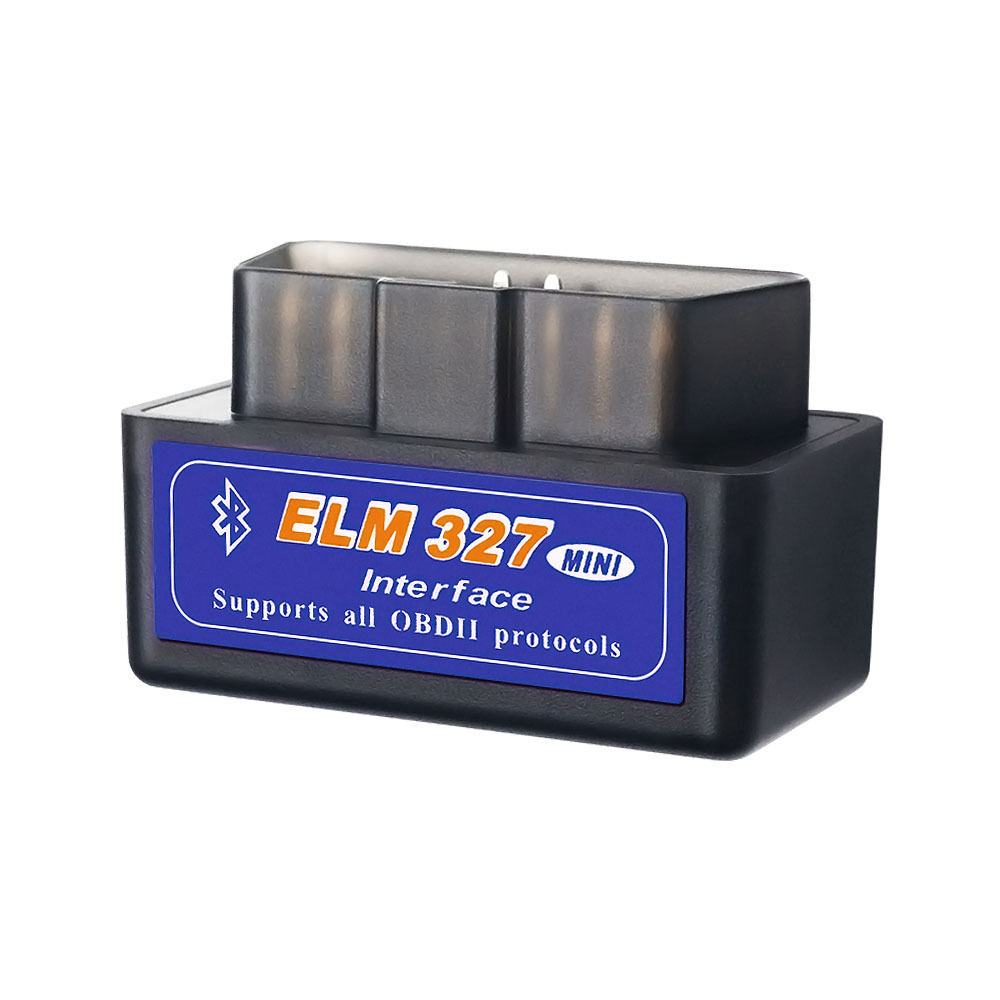

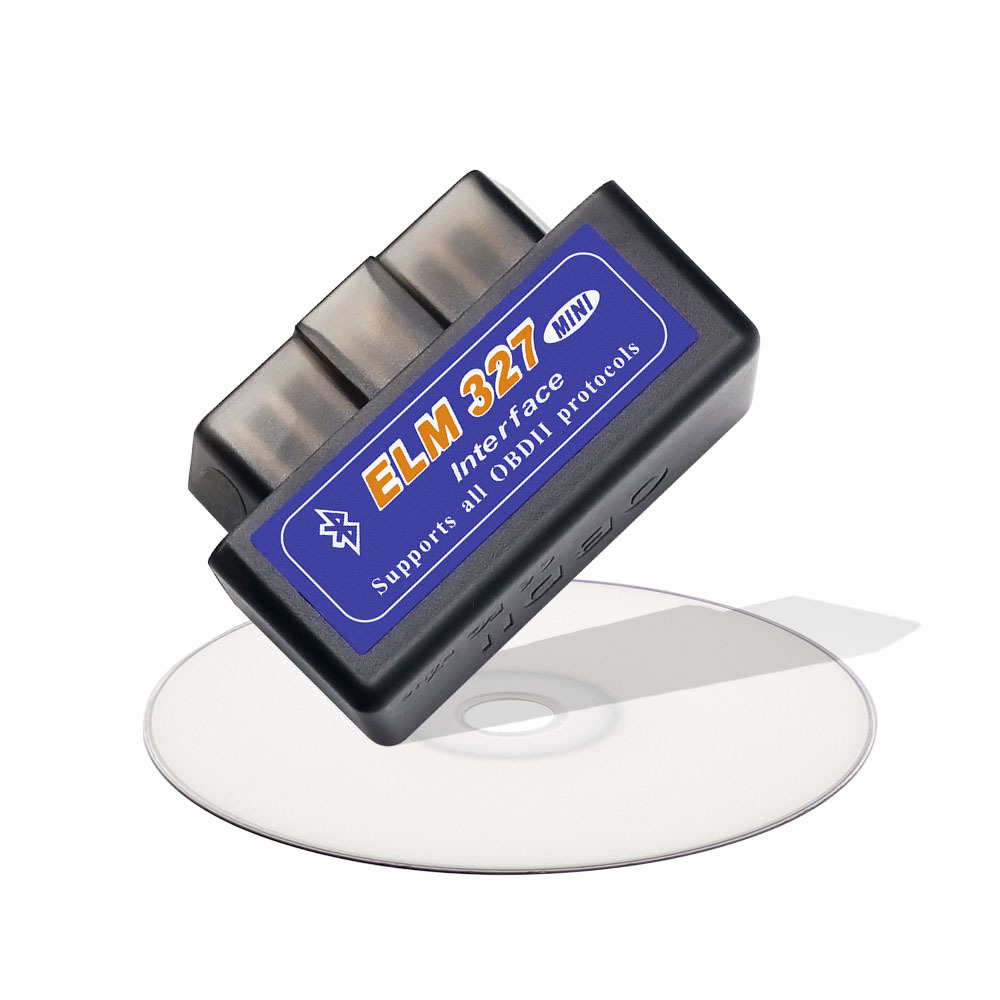

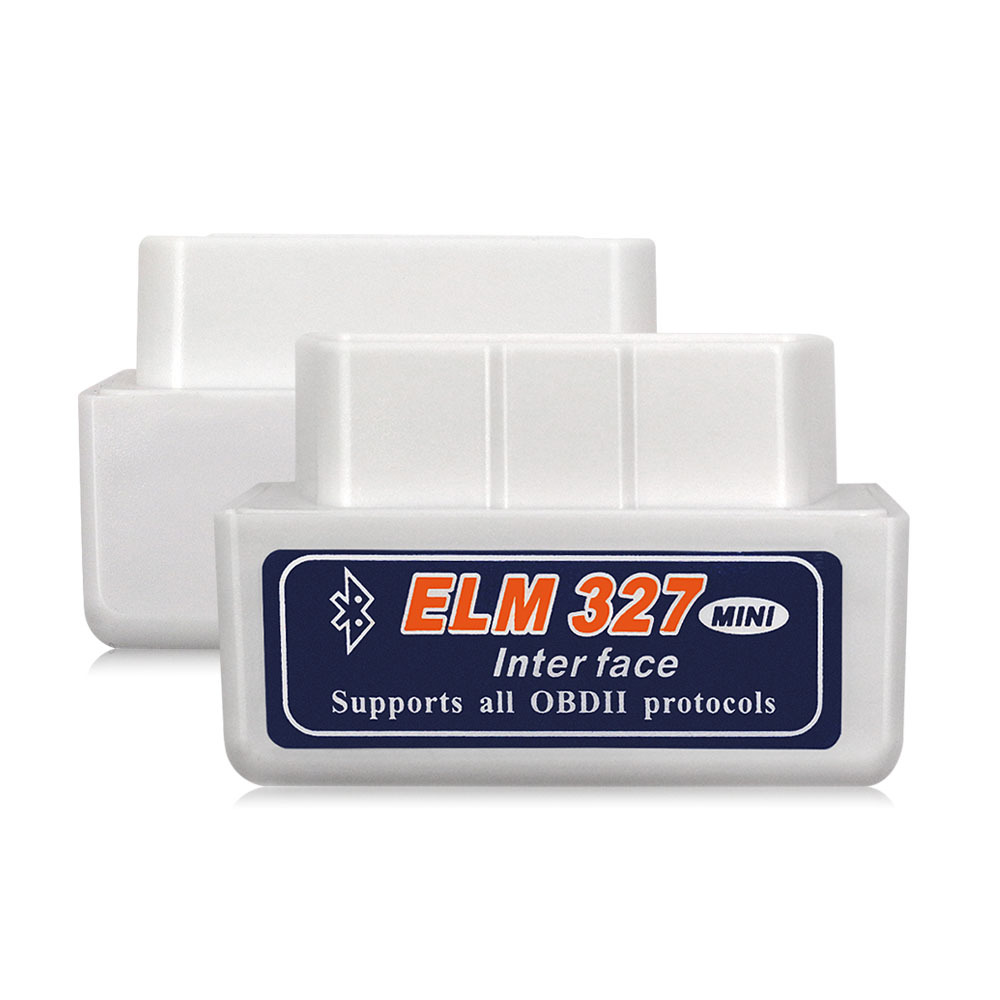

ELM327 mini v2.1 Bluetooth OBD двухрежимный 5.1 Bluetooth детектор неисправностей автомобиля
Offer ID: 735150505534
Оформить заказ
| Изображение | Характеристики | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
 | Xiaolan (version 2.1) bagged | ¥4.5 / ≈ 55 ₽ | 88872823 | 5774858308784 | |
 | Xiaohei (version 2.1) bagged | ¥4.5 / ≈ 55 ₽ | 88886673 | 5774858308785 | |
 | Xiaobai (version 2.1) bagged | ¥4.5 / ≈ 55 ₽ | 88888281 | 5774858308786 | |
 | Xiaolan (version 1.5) bagged | ¥5.5 / ≈ 67 ₽ | 88877999 | 5774858308787 | |
 | Xiaohei (version 1.5) bagged | ¥5.5 / ≈ 67 ₽ | 88888740 | 5774858308788 | |
 | Xiaobai (version 1.5) bagged | ¥5.5 / ≈ 67 ₽ | 88888779 | 5774858308789 | |
📦 | Xiaolan (version 2.1) boxed | ¥4.5 / ≈ 55 ₽ | 4813 | 5774858308779 | |
📦 | Xiaohei (version 2.1) boxed | ¥4.5 / ≈ 55 ₽ | 7268 | 5774858308780 | |
📦 | Xiaobai (version 2.1) boxed | ¥4.5 / ≈ 55 ₽ | 8862 | 5774858308790 | |
📦 | Xiaolan (version 1.5) boxed | ¥5.5 / ≈ 67 ₽ | 8837 | 5774858308782 | |
📦 | Xiaohei (version 1.5) boxed | ¥5.5 / ≈ 67 ₽ | 8888 | 5774858308783 | |
📦 | Xiaobai (version 1.5 boxed | ¥5.5 / ≈ 67 ₽ | 8887 | 5774858308781 |
Статистика продавца
Свойства товара
Описание товара
Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth.
Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:
1.Version: V2.1
2 Works with all OBD-II compliant vehicles
3. Wireless (Bluetooth)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)(no)
2.SAE J1850 VPW (10.4Kbaud)(no)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 Bluetooth Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ - 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 65mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian .
Compatible software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope
Package List:
1pc x Mini OBD2 Bluetooth5.0Scanner
1pc x CD
支持的协议：
1.SAE J1850 PWM（41.6K波特）(不支持）
2.SAE J1850 VPW（10.4Kbaud）（不支持）
3.ISO9141-2（5波特初始化，10.4千波特）
4.ISO14230-4 KWP（5波特初始化，10.4千波特）
5.ISO14230-4 KWP（快速启动，10.4 Kbaud）
6.ISO15765-4 CAN（11位ID，500 Kbaud）
7.ISO15765-4 CAN（29bit ID，500 Kbaud）
8.ISO15765-4 CAN（11位ID，250 Kbaud）
9.ISO15765-4 CAN（29bit ID，250 Kbaud）
迷你OBD2蓝牙扫描仪功能：
1：读取通用和制造商特定的诊断故障代码，并显示它们的含义（在数据库中超过3000个通用代码定义）。
2：清除故障码并关闭MIL（“检查发动机”指示灯）
3：显示当前传感器数据，包括：
4：发动机转速
5：计算的负载值
6：冷却液温度
7：燃油系统状态
8：车速
9：短期燃油修剪
10：长期燃油修剪
11：进气歧管压力
12：时间提前
13：进气温度
14：空气流量
15：绝对节气门位置
16：氧传感器电压/相关的短期燃料修剪
17：燃油系统状态
18：燃油压力
19：其它功能等。。。。
迷你OBD2蓝牙扫描仪规格：
支持系统：Android和Windows
工作电压：9v-16v
工作电流：35mA
待机电流：25mA
工作温度：-40℃-85℃
工作湿度：小于60％
尺寸：45mm * 25mm * 65mm
兼容的系统：
软件支持平台：IOS,Windows XP，Windows 7/8，Android，Symbian。
兼容软件：
Window：ScanMaster-ELM，ScanTool.net，PCMSCAN ELM等
Android：Torque，DashCommand，OBD汽车医生，Auto Doctor，迷你OBD，EOBD等
Symbian：OBDScope
