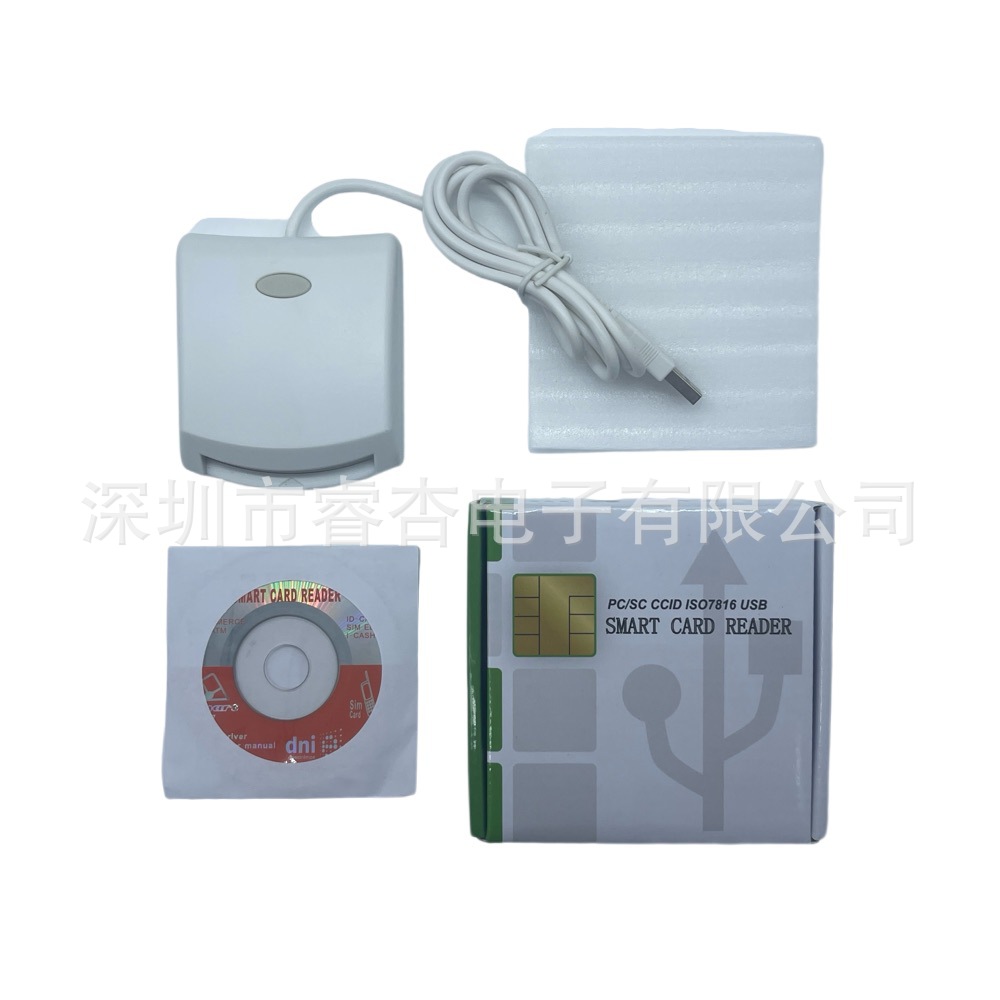

ISO7816 USB CCID PC/SC смарт-картридер/запись N99(EZ100PU)

最新款USB2.0 SMART CARD READER,支持多种语言和系统，身份证凭证读卡机，WEB-ATM，网络银行，智能身份证读卡机，SIM编辑器，SIM读卡机，电子钱包读卡机读卡器等多种应用，欢迎直接咨询

N99智能卡读写器,是台湾高科技公司顶力研发产品,高速的读卡能力,深受各大智能卡行业的青睐.两个卡槽，支持大SIM卡和标准小SIM卡



特色:

•采用单一解决方案的EMV 2000L1和PC/SC标准，通过EMVCO认证和WHQL认证，支持windows的98/2000/xp/vista32/vista64/win7/win10(很多品牌是不支持VISTA64的）

•高速通信性能

•支持所有ISO  7816 A (5V)、B (3V)、C（1.8V）类智能卡

•经过充分测试，兼容市场中所有ISO 7816智能卡

•经过充分测试，兼容市场中所有主流存储智能卡



典型用途：

该读卡器适合多种用途，如家庭银行、网络安全、安全登录、电子邮件加密、会员卡、电子礼券和游戏等那些需要高性价比的应用；

技术数据：

主机接口	•全速USB2.0(12 Mbps) •USB总线供电设备 •符合CCID要求
智能卡接口	•支持T=0，T=1协议 •通过SCM MCARD API支持存储卡 •通信速度高达420 kbps（PPS、FI参数） •高达8 MHz的频率（PPS、DI参数） •支持ISO 7816 A、B和C类智能卡
智能卡连接器	•8触点-ISO位置 •100,000次插拔 •接触触点 •短路保护
人机界面	•一个双色LED，黄绿色显示电源，红色显示工作

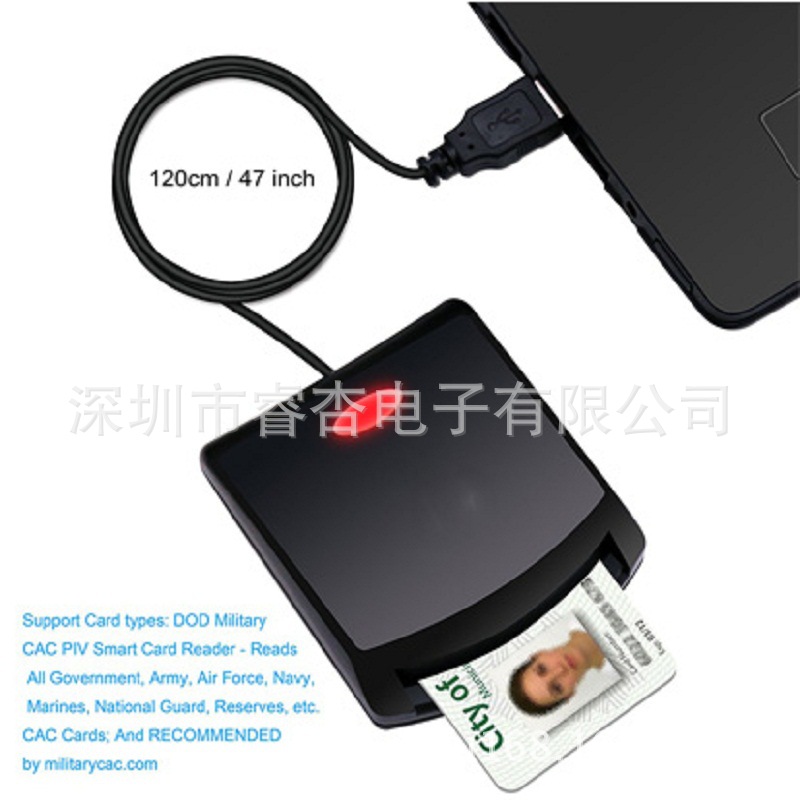

线缆/电源	•线缆：1.2m长，带USB A型连接器 •通过USB总线供电
尺寸	•长*宽*高85x72x17mm，重110克
工作温度	• 0°C至50°C
湿度	•90%（无凝露）
操作系统	•Windows®98SE、ME、2000、Server2003、XP32/64、 Vista32/64/Win7/Win10 •Windows® CE 3.0、4.1、4.2、5.0 •MacOS 10.x、Linux 2.4.x、2.6.x、Solaris •Android4.0 or above
API	•PC/SC •CT-API（通过PC/SC顶层的包装器）
支持标准	•FCC B类15部分、cULus、CE、VCCI •USB-IF •ICES-003第4版,B级 •Microsoft® WHQL 2000、XP、Server2003、VISTA 32、VISTA64 •EMV 2000L1
可支持环境	• RoHS •WEEE •符合REACH



 N99 Contact Smart Card Reader

Features

• Ergonomic and cost efficient design

• Software and functionality compatible with RUIXING´s SCR-N9x readers family

• In field firmware upgrades (N99)

• EMV Level 1 certified

• Compliant with major smart cards and relevant industry standards

• Customization options: Casing color and company logo Typical Applications The SCR-N99 are suitable for a wide range of applications for government as well as for enterprise and home useage. Due to its design, the readers are also ideally suited to be bundeled with smart cards and software to support large scale projects roll outs. Typical applications areas of the SCR-N99 are electronic ID, social security and loyalty programs, e-Couponing, secure network log on, e-Banking as well as online shopping and gaming activities.

N99 Technical Data

Interfaces

Host USB • Full speed USB 2.0 (12 Mbps)

• USB Bus powered device

• CCID compliant

• ICC ≤45 mA Smart Card contact 1.Spport EMV Level

1 specification

2.Support USB 2.0 full speed

3. Based on ISO7816 implementation

4. Support PC Smart Card industry standard – PC/SC 2.0

5. Support Microsoft Smart Card for Windows

6. Meet Microsoft WHQL USB Smart Card Reader requirements

7. Meet US Federal Information Processing Standards (FIPS) Publication 201 requirements on smart card reader interoperability 8. Support T0, T1 protocol

9. Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM

10. Support ISO7816 Class A, B and C (5V/3V/1.8V) card

11. Support short APDU and extended APDU

12. Compatible with Microsoft USB-CCID driver

13. Support remote wake up through inserting card/removing card

14. Support USB selective suspend

15. Support Power Saving Mode

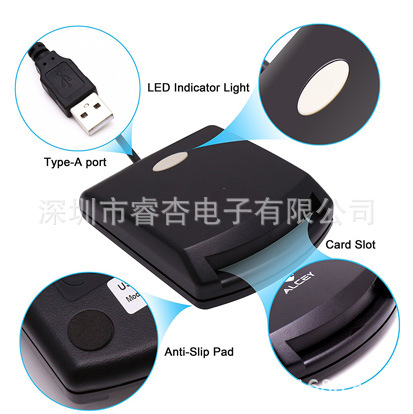

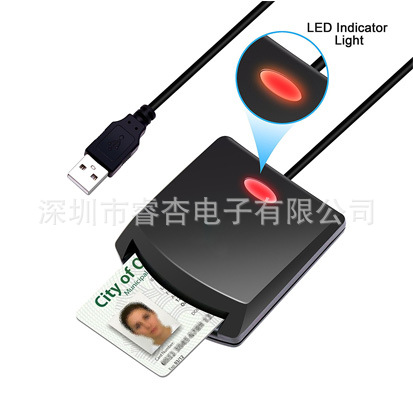

Human optical • yellow / red LED,

Software API • PC/SC • CT-API (thru wrapper on top of PC/SC)

Operating Systems • Windows® 7, Windows® 8, Windows® 10(32bit / 64bit) • Windows® Vista(32bit / 64bit), XP, Server 2003, 2000, ME, 98 • Windows® CE 3.0, 4.1, 4.2, 5.0, 6.0 • Mac OS 9.X , Mac OS X or above • Solaris, • Deblan GNU/Linux, RedHat Linux, • Novell SuSe Linux 32-bit (2.4.x, 2.6.x)/64-bit • Andriod 3.0 or Above

Cable • Cable: 1.2m long with USB type A connector

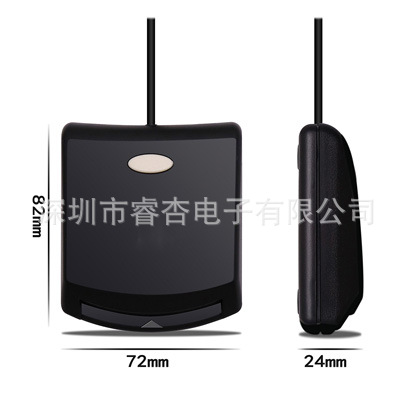

Dimensions L x W x H [mm] • 85 x 72 x 24

Weight [g] • 86 Operating Conditions

Temperature [°C]

Humidity [ % ] • -20°C ------60 °C • 90 (non-condensing)

Functional • USB-IF • Microsoft® WHQL 2000, XP, Server2003,Vista,Windows7，Windows 8,Windows 10• EMV 2000 Level 1 Approvals Environmental • RoHS, WEEE,CE, FCC • REACH compliance (N99)

Technical data are subject to change without notice. Trusted Products • Broadest portfolio of security technology products - for governments, corporations, financial institutions, small and medium-sized enterprises and individuals around the globe • Secure smart chip reader design - certified and compliant to EMV, Common Criteria, PC/SC, USB • High-quality products designed to meet the various requirements in the data security area • Flexible and future proof solutions – RUIXING ’s SmartOS™ firmware and its own ASIC technology allow in Field upgrades and secure your investmen
