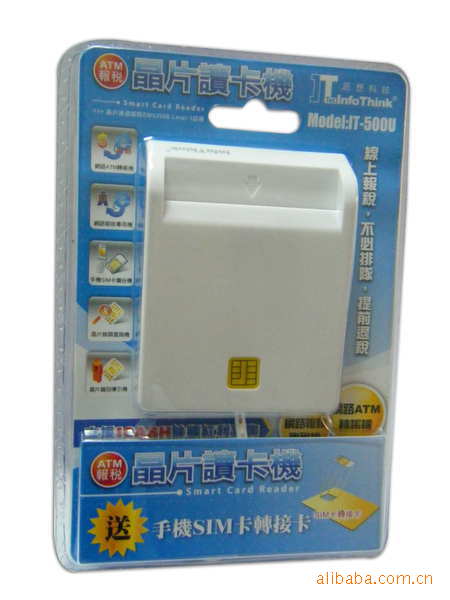

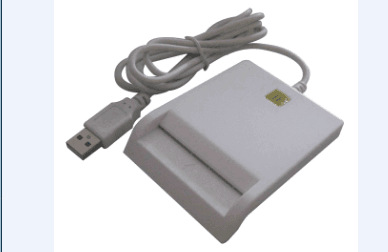

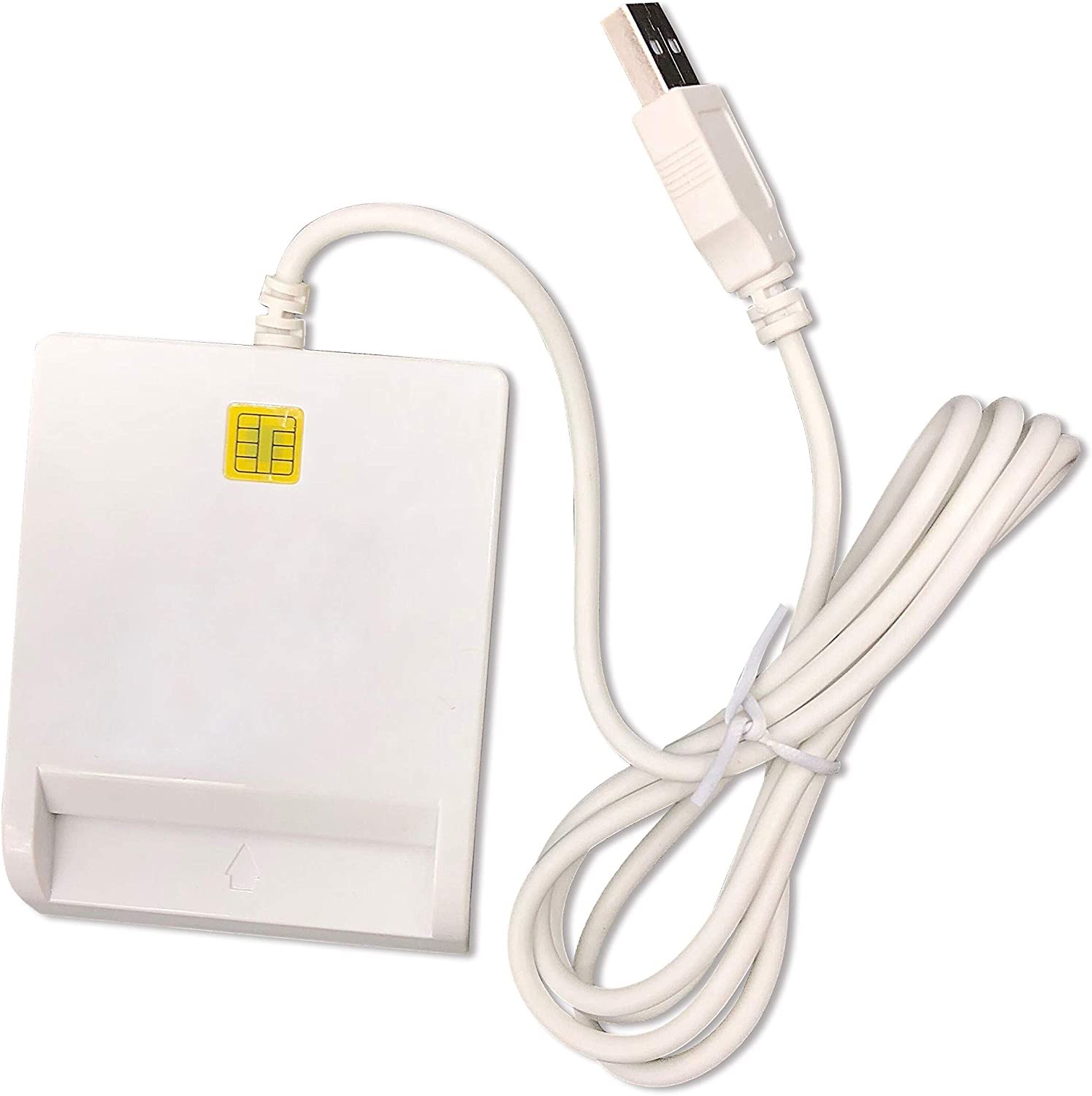

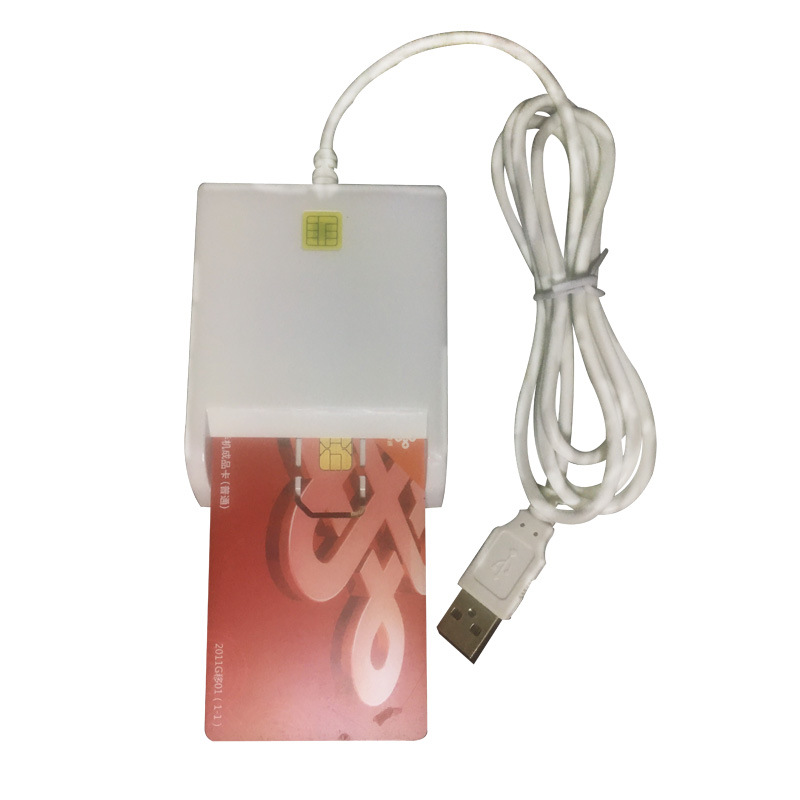

СМАРТ КАРТРИДЕР N58

Цена

¥23.50 - ¥49.00 / ≈ 284 ₽ – 592 ₽

MOQ: 10 pcs

10шт - ¥49.00 |100шт - ¥25.00 |1000шт - ¥23.50

Продавец

深圳市睿杏电子有限公司

Рейтинг

0

Продано

0

Всего

В наличии

9000

SKU суммарно

Offer ID: 606352874

Открыть на 1688 →

Статистика продавца

4.0

Сервис

Источник: API 1688

3.0

Логистика

Источник: API 1688

4.0

Споры

Источник: API 1688

3.0

Оформление

Источник: API 1688

5.0

Консультация

Источник: API 1688

25%

Повторные покупки

Источник: API 1688

3.3

Постпродажное

Источник: API 1688

Свойства товара

Бренд Ruixing

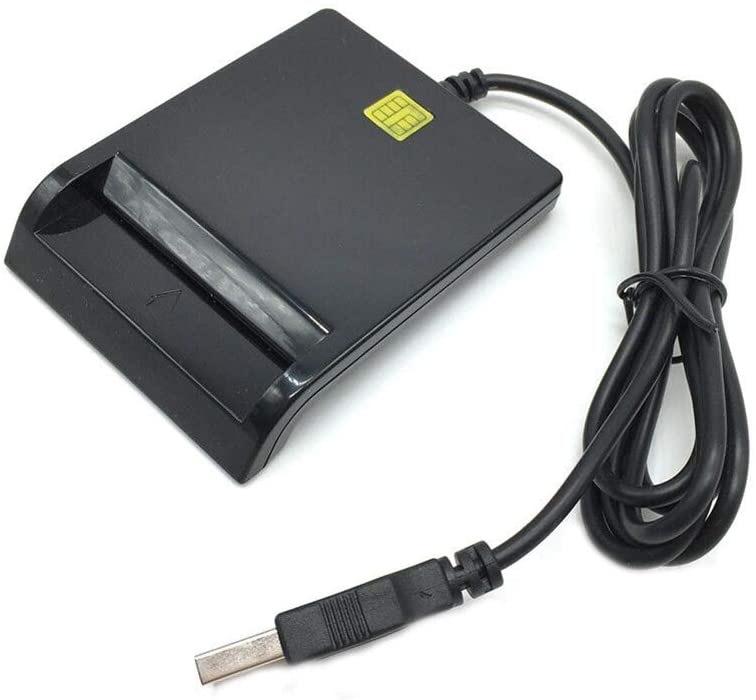

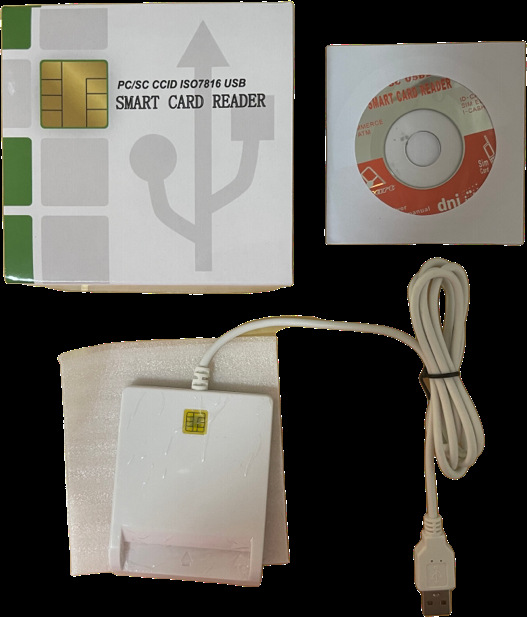

Номер товара N58B/W

Модель SCR-N58

Вместимость 1024

Количество кодов хранения 2000

Поддержка компьютера Requires Computer support

Функция ЖК-дисплея No LCD display function

Функция хранения при отключении питания Power-down storage

Поддерживаемые типы SIM card, Uimcard, Other

Основные downstream платформы ebay, Amazon, wish, AliExpress, Independent station, LAZADA

Основные торговые зоны Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East

Имеют авторизованные частные бренды Yes

Доступен ли исключительно трансграничный экспорт Yes

Размер 65 x 84 x 18mm

Описание товара

支持台湾银行卡，网络ATM,手机卡，SIM卡，香港欧洲智能身份证，社保卡，驾驶证，加油卡等等

符合PC/SC标准

符合EMV2000 LEVEL1.0

支持USB 2.0 支持高速传输

支持WHQL

支持USB-CCID

支持最新WIN7和MAC10.0,linux

Features
• Ergonomic and cost efficient design
• Software and functionality compatible with RUIXING´s SCR-N58 readers family
• In field firmware upgrades
• EMV Level 1 certified
• Compliant with major smart cards and relevant industry standards
• Customization options: Casing color and company logo
Typical Applications
The SCR-N58 are suitable for a wide range of applications for government as well as for enterprise and home
useage.
Due to its design, the readers are also ideally suited to be bundeled with smart cards and software to support large
scale projects roll outs.
Typical applications areas of the SCR-N58 are electronic ID, social security and loyalty programs, e-Couponing,
secure network log on, e-Banking as well as online shopping and gaming activities.
Technical Data

Interfaces	N58
Host	USB	• Full speed USB 2.0 (12 Mbps) • USB Bus powered device • CCID compliant	√

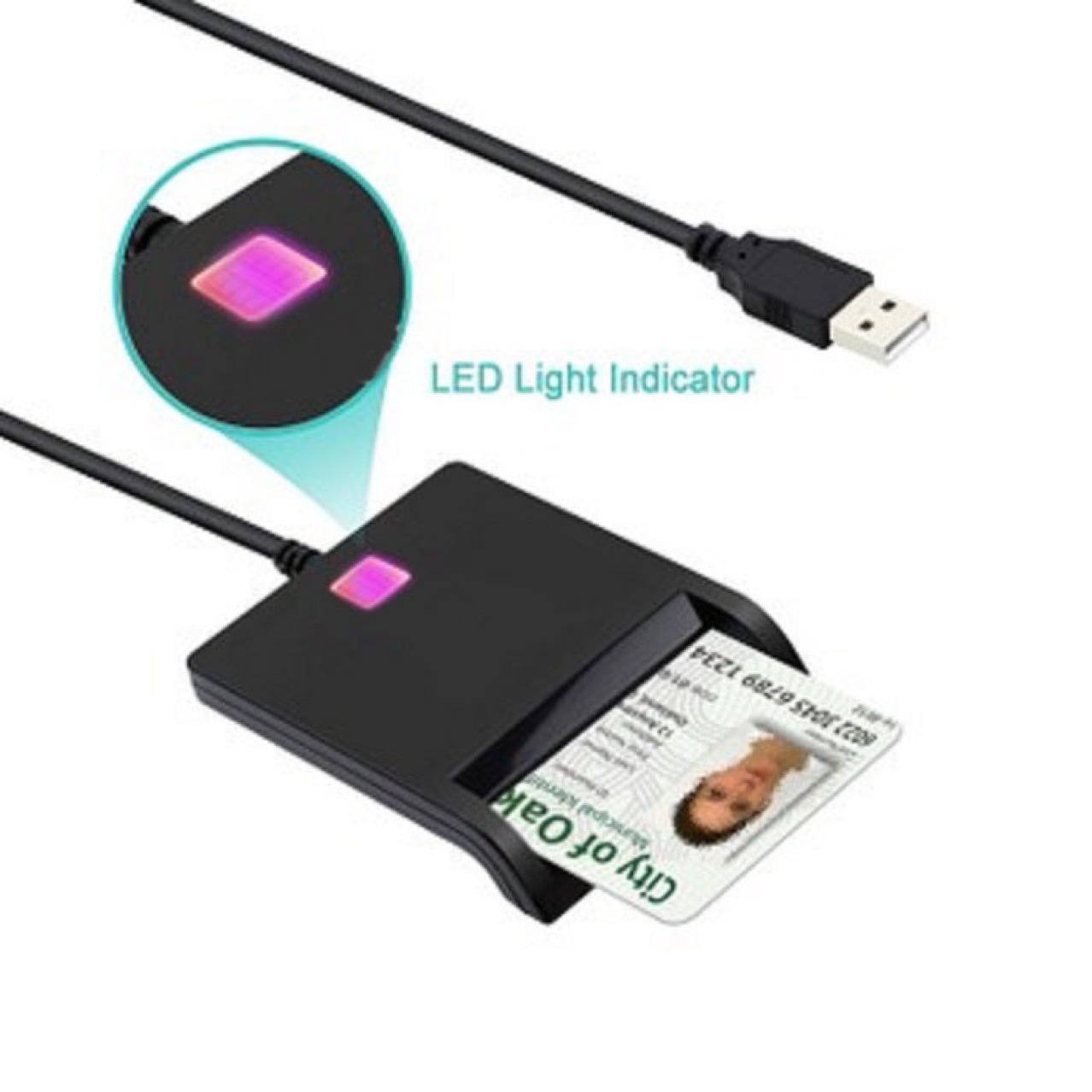

Human	optical	• yellow (blue) / red LED,	√
Software	API	• PC/SC • CT-API (thru wrapper on top of PC/SC)	√
Operating Systems	• Windows®7, Windows®8, Windows®8.1(32bit / 64bit) • Windows®Vista(32bit / 64bit), XP, Server 2003, 2000, ME, 98 • Windows®CE 3.0, 4.1, 4.2, 5.0, 6.0 • Mac OS 9.X , Mac OS X or above • Solaris, • Deblan GNU/Linux, RedHat Linux, • Novell SuSe Linux 32-bit (2.4.x, 2.6.x)/64-bit • Andriod 3.0 or Above	√

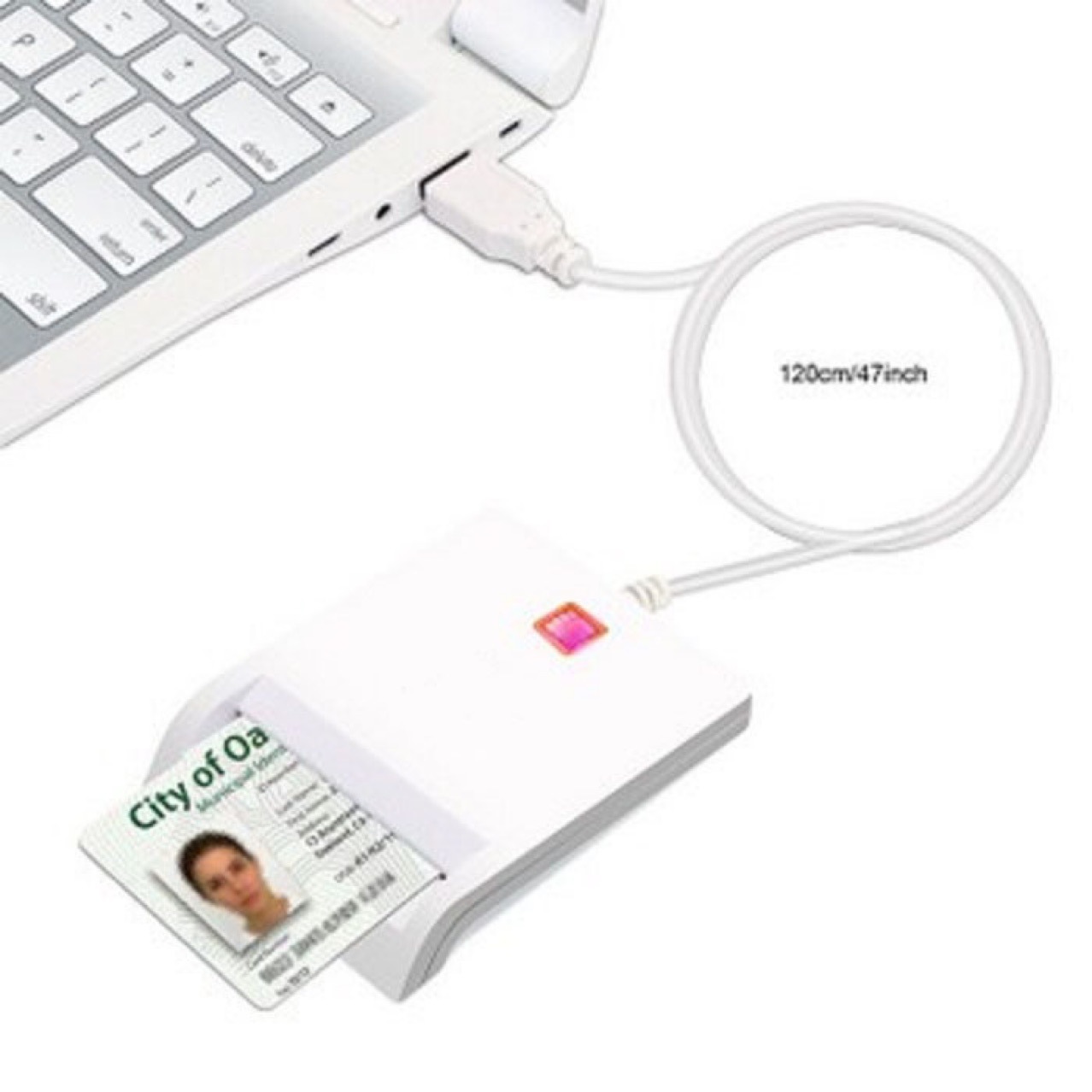

Cable	• Cable: 120cm long with USB type A connector	√
Solt	ISO7816	1	√
material	ABS	√

Smart card reader / write

Smart Card	contact	1. Support EMV Level 1 specification 2. Support USB 2.0 full speed 3. Based on ISO7816 implementation 4. Support PC Smart Card industry standard – PC/SC 1.0/2.0 5. Support Microsoft Smart Card for Windows 6. Support Power Saving Mode 7. Support single slot 8. Support T0, T1 protocol 9. Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via 10. Support ISO7816 Class A, B and C (5V/3V/1.8V) card 11. Support T0, T1 protocol, I2C memory card, 12. Based on USB-CCID class, short APDU level 13. Compatible with Microsoft USB-CCID driver 14. Support 1.8V/3V/5V card 15. Support Windows 98/me/2000/xp/vista/7, Mac OS10.4, Linux or above System. 16. Friction contact, 200,000 insertions	√
Dimensions	L x W x H [mm]	• 65 x 84 x 18	√
Weight	[g]	• 72	√
√
Operating Conditions	Temperature [°C] Humidity [ % ]	• -20°C ------60 °C • 90 (non-condensing)	√
Approvals	Functional	• USB-IF • Microsoft® WHQL 2000, XP, Server2003,Vista,7 • EMV 2000 Level 1 • Application Programs • Corporate Network • Access • Internet / Intranet Access • Electronic Cash • Credit and Debit • Loyalty • GSM	√
Environmental	• RoHS, WEEE,CE,FCC,WHQL • REACH compliance	√

Technical data are subject to change without notice.
