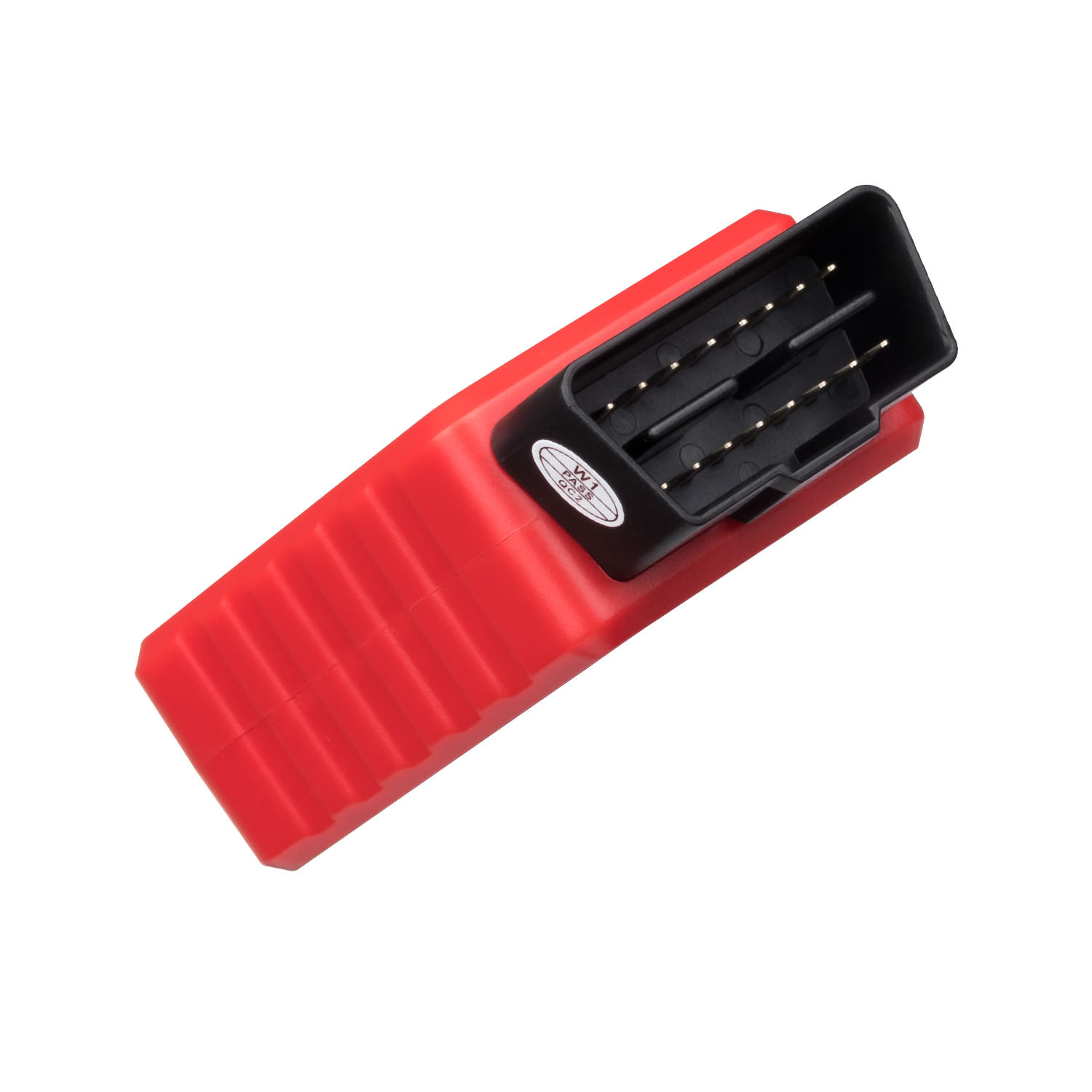

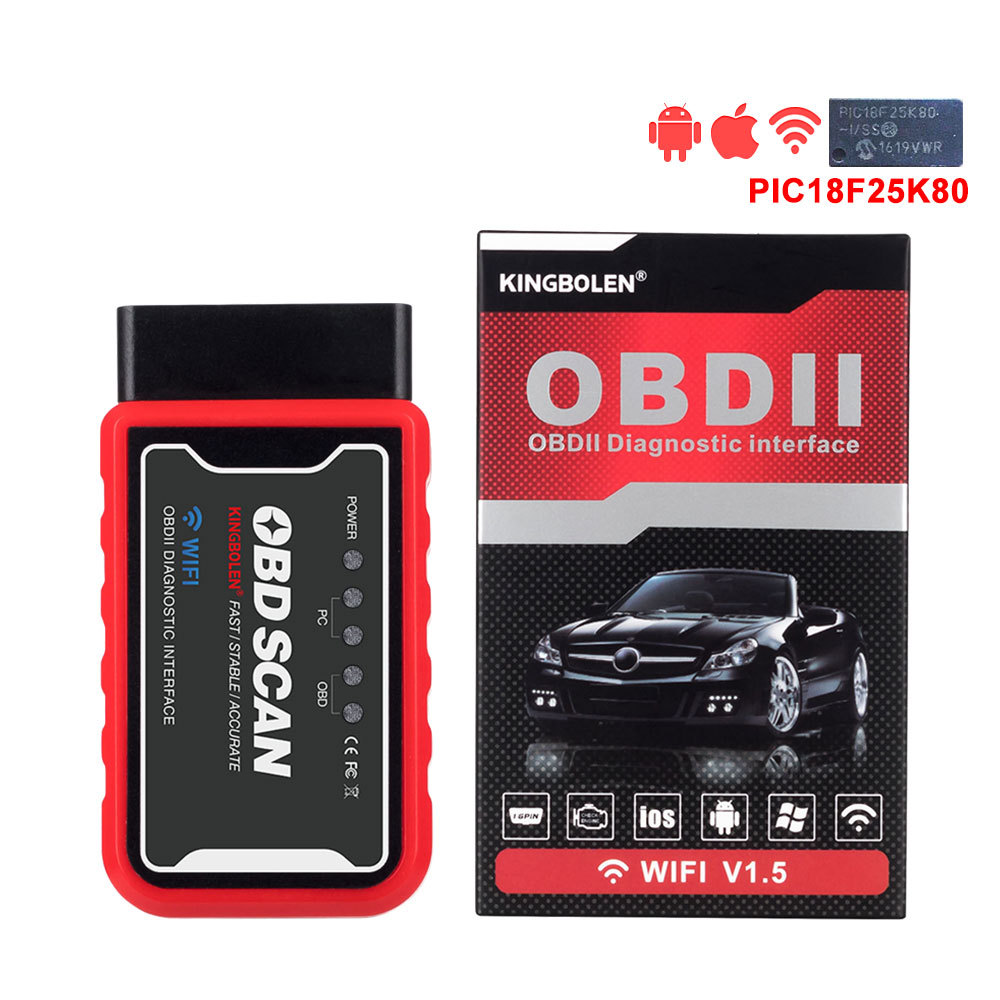

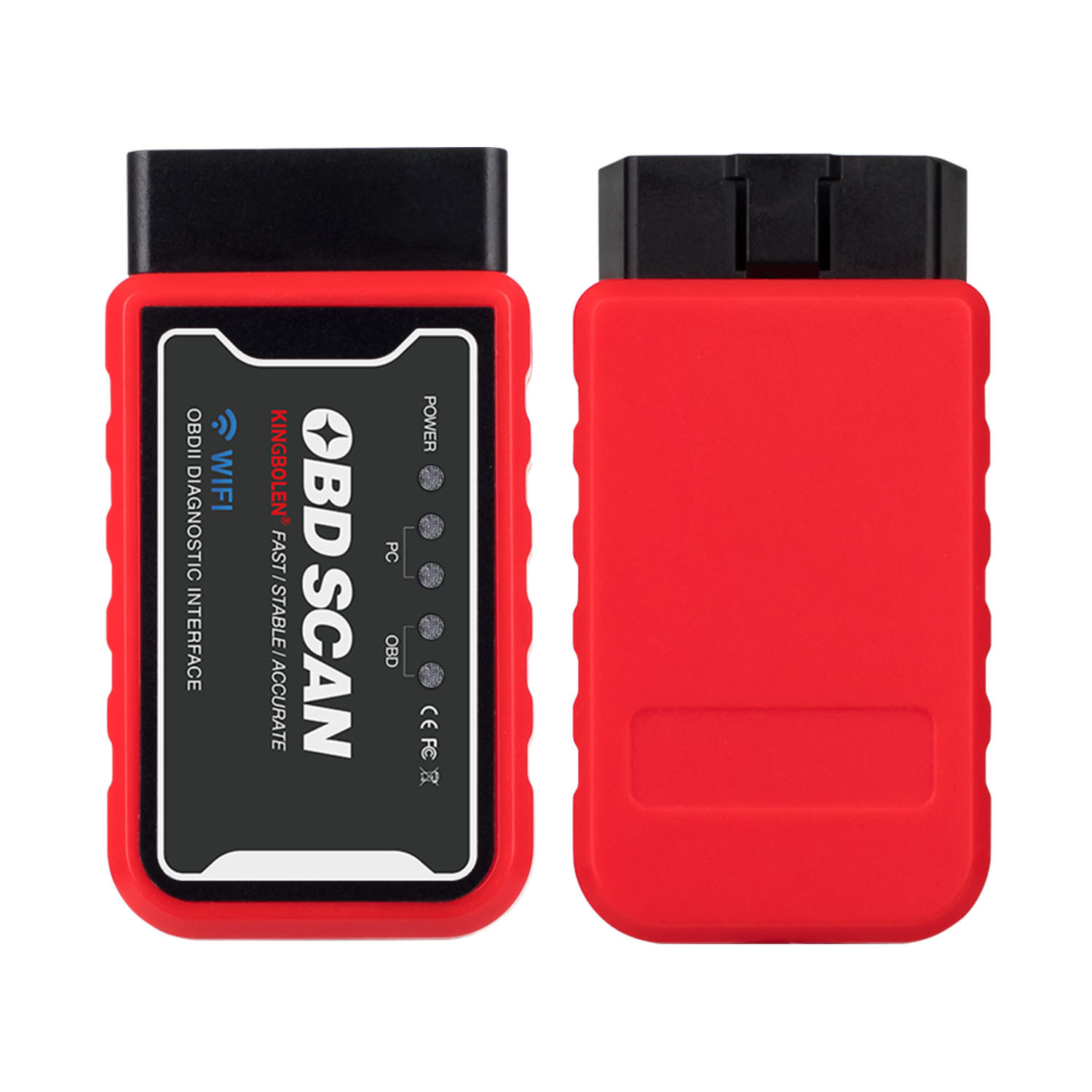

OBD II ELM327 SCAN car fault diagnosis instrument Android Apple system PIC25K80 chip

OBD II ELM327 сканер для диагностики неисправностей автомобиля для Android и Apple, чип PIC25K80

Цена

¥31.00 - ¥33.00 / ≈ 375 ₽ – 399 ₽

MOQ: 1 pcs

1шт - ¥33.00 |100шт - ¥32.00 |1000шт - ¥31.00

Продавец

深圳市金博伦电子科技有限公司

Рейтинг

Продано

Всего

В наличии

93524920

SKU суммарно

Offer ID: 603329083404

Открыть на 1688 →

Статистика продавца

4.5

Сервис

Источник: API 1688

4.0

Логистика

Источник: API 1688

4.0

Споры

Источник: API 1688

5.0

Оформление

Источник: API 1688

3.5

Консультация

Источник: API 1688

52%

Повторные покупки

Источник: API 1688

3.7

Постпродажное

Источник: API 1688

95%

Ответ ≤48ч (30д)

Источник: API 1688

Возврат по качеству (30д)

Источник: API 1688

Свойства товара

Происхождение China

Импорт или нет No

Номер заказа SC03-L06

Индивидуальная обработка No

Номер товара ELM327

Тип Automobile fault diagnosis instrument

Напряжение 12

Рабочая температура -20-60

Модель ELM327

Основные downstream платформы ebay, Amazon, wish, AliExpress, Independent station, LAZADA

Основные торговые зоны Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East

Доступен ли исключительно трансграничный экспорт Yes

Описание товара

1_0000_组 1 拷贝.jpg

1_0001_图层 1.jpg

1_0002_图层 3.jpg

1_0003_组 1 拷贝 2.jpg

1_0005_组 1 拷贝 4.jpg

1_0007_图层 2.jpg

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi.

Top 5 Reasons To Get Mini OBD2 Wifi Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Wifi)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

Mini OBD2 Wifi Scanner Specifications:

SSID: WiFi_OBDII

IP: 192.168.0.10

Port: 35000

Communication: WIFI

Master Chip: ST

Support System: IOS, Android, Symbian, Windows

Working Voltage: 9v ~ 16v

Working Current: 65mA

Standby Current: 45mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS: Auto Doctor, Mini OBDII

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope

Package List:

1pc x Mini OBD2 Wifi Scanner

1pc x Box
