Двухпроводной мотор с высокой нагрузкой, центральный замок, аксессуары для автомобилей 12V

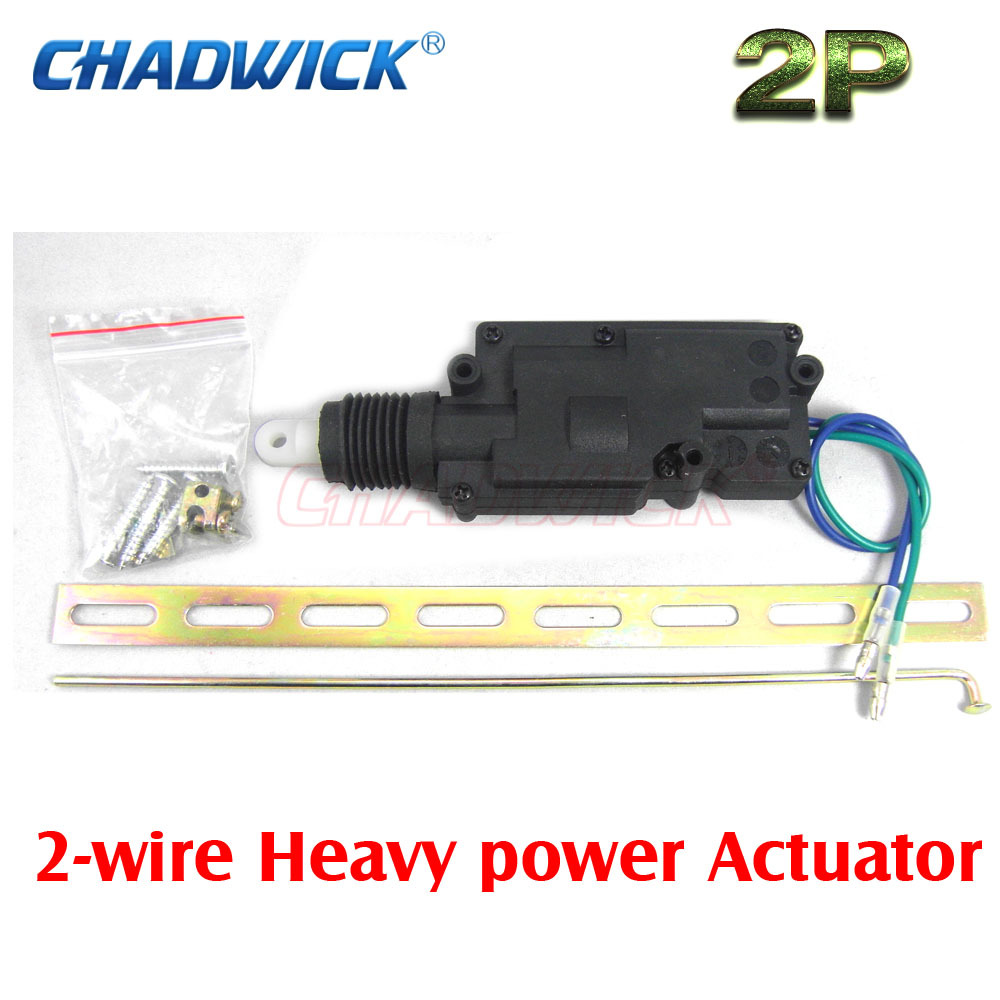

Heavy central locking door actuator 12V Single gun with nails 2 wire actuator

2线中控锁马达线枪-日式重型

SPECIFICATIONS OF 12V NEW HEAVY DUTY ACTUATOR :

1. Operating voltage: DC 12V ±10%

2. Empty-load current: 1.5A ±5%

3. Stall current:＜5A

4. Load current: 3A + 10%

5. Pull force: 5.5 KGS + 5%

6. Push force: 5.0 KGS + 5%

7. Mechanical life:≥100,000 working cycles (one up and down operation as a working cycle)

8. Electrical life:≥80,000 working cycles±10%

9. Travel distance: 22mm ± 0.5mm

10. Travel time: 0.3~0.4 second

11. Material of actuator case: PA66+GF30

12. Operating temperature: -30℃~ +80℃

13. Spec. of motor wire: ?2.3 26*0.14 copper (AVS 0.41)

12V新重型执行器的规格：

1。工作电压：DC12V±10％

2。空负载电流：1.5A±5％

3。堵转电流：<5A

4。负载电流：3A+10％

5。拉力：5.5公斤+5％

6。按力：5.0公斤+5％

7。机械寿命：≥100,000个周期（上下操作作为一个工作周期）

8。电气寿命：≥80,000个周期±10％

9。旅行距离：22毫米±0.5毫米

10。旅行时间：0.3??0.4秒

11。器壳体材料：PA66 +GF30

12。工作温度：-30℃??+80℃

13。规格。电机电线：2.326 *0.14铜（AVS0.41）
