Многофункциональное оборудование из нержавеющей стали (тип Tq-M, грибовидный) для эффективного фармацевтического оборудования
Offer ID: 348024527
Статистика продавца
Свойства товара
Описание товара

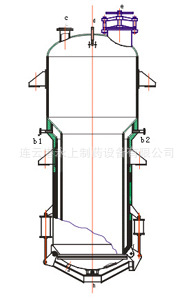

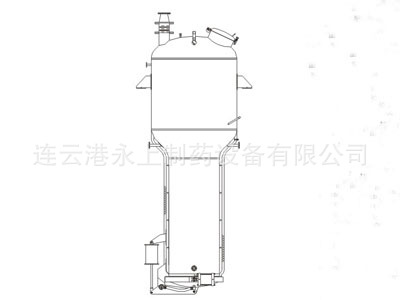

TQ series multi-fumctional exacting tanks
本设备适用于中药、食品、化工行业的常压、微压、水煎、温浸、热回流、强制循环渗漏作用，芳香油提取及有机溶煤回收等多种工艺操作，具有效率高、操作方便等优点，罐内配备CIP清洗系统，符合GMP医药标准。

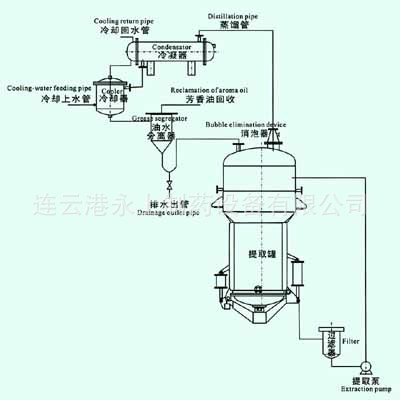

The device is to service at such industries as China traditional drug,food stuff and chemistry for the technologies such as normal pressure、mini pressure,water decocting,warm immersion,thermal circumfluence,compelled recycle and leakage,extraction of aroma oil and reclamation of organic solvent with the features of high efficiency and convenient operation,The CIPcleaning system inside the tank meets with the GMP standard.
TQM、E系列提取罐工艺参数
TQM、E seriexs extraction tank technical parameter
TQM-1
| TQM-2
| TQM-3
| TQM-6
| TQM-8
| TQM-10
| 备注
| |
容积L
| 1200
| 2300
| 3200
| 6300
| 8500
| 11000
|
|
罐内设计压力
| 0.09Mpa
| ||||||
夹层设计压力
| 0.3Mpa
| ||||||
加料口直径m/m
| 400
| 400
| 400
| 500
| 500
| 500
|
|
加热面积m2
| 3
| 4.7
| 6
| 7.5
| 9.5
| 12
|
|
冷凝面积m2
| 4.5
| 6
| 6
| 8
| 8
| 13
|
|
冷却面积m2
| 1
| 1
| 1
| 2
| 2
| 3
|
|
过滤面积m2
| 3
| 3
| 3
| 5
| 5
| 6
|
|
耗汽kg/h
| 285
| 346
| 570
| 718
| 903
| 1140
|
|
耗水kg/h
| 21
| 25
| 42
| 54
| 67
| 83
|
|
蒸汽口m/m
| 40
| 40
| 40
| 50
| 60
| 60
|
|
二次汽口m/m
| 80
| 80
| 80
| 100
| 100
| 100
|
|
进出水口m/m
| 40
| 50
| 60
| 60
| 70
| 70
|
|
排渣门直径
| 800
| 1000
| 1000
| 1000
| 1000
| 1200
|
|
