Свойства товара

Бренд Baokang
Модель Syh-200
Область применения Mix, stir, blend
Вес 1000

Описание товара

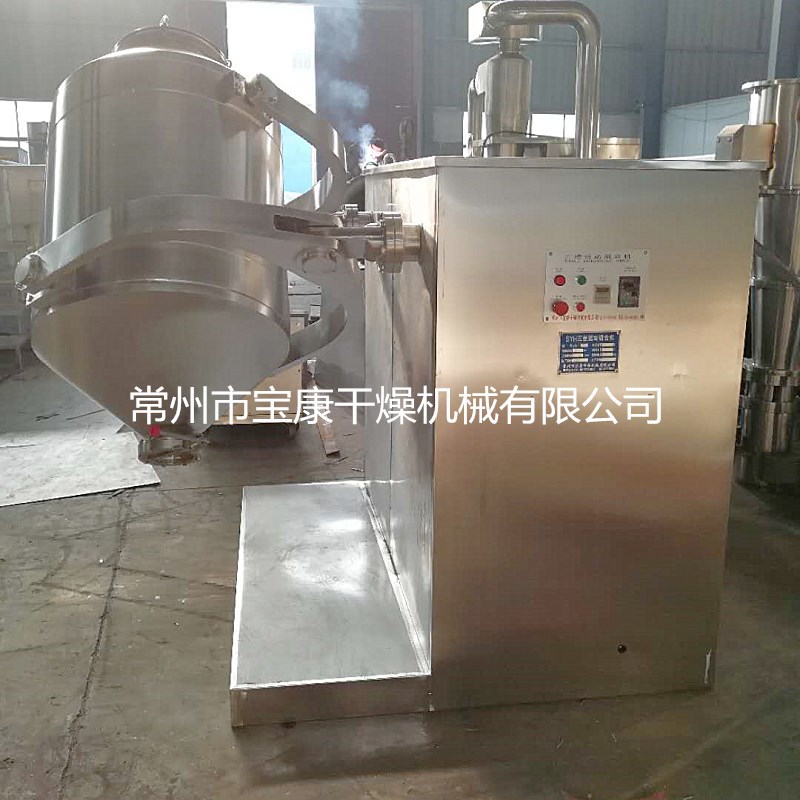

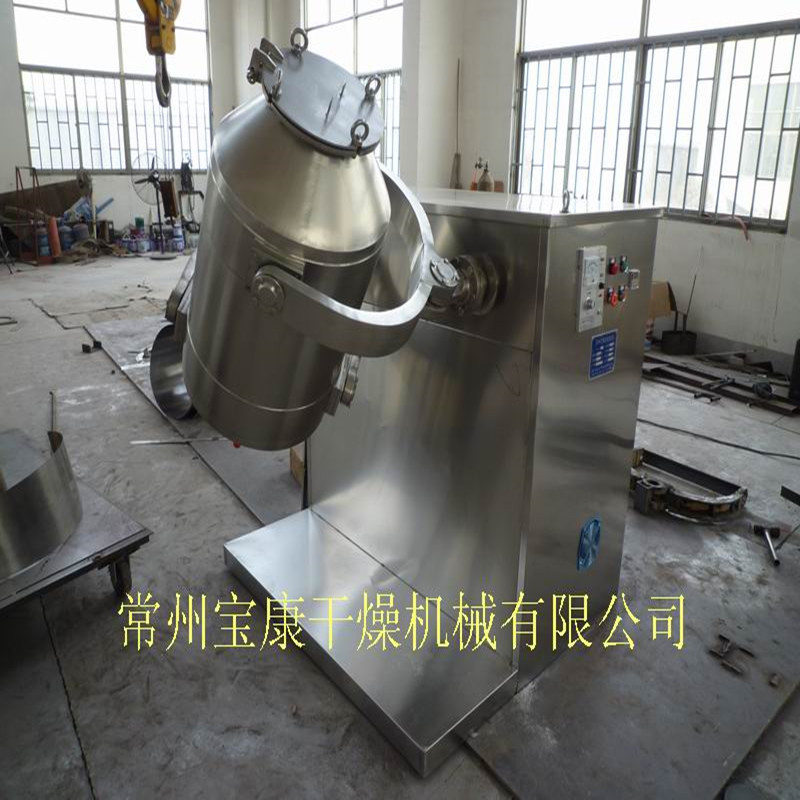

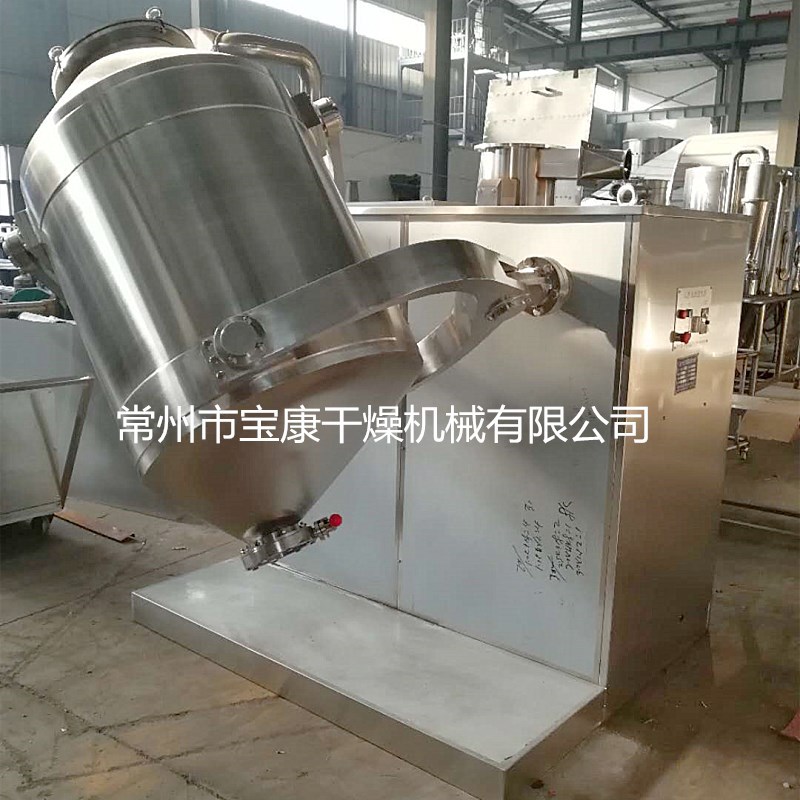

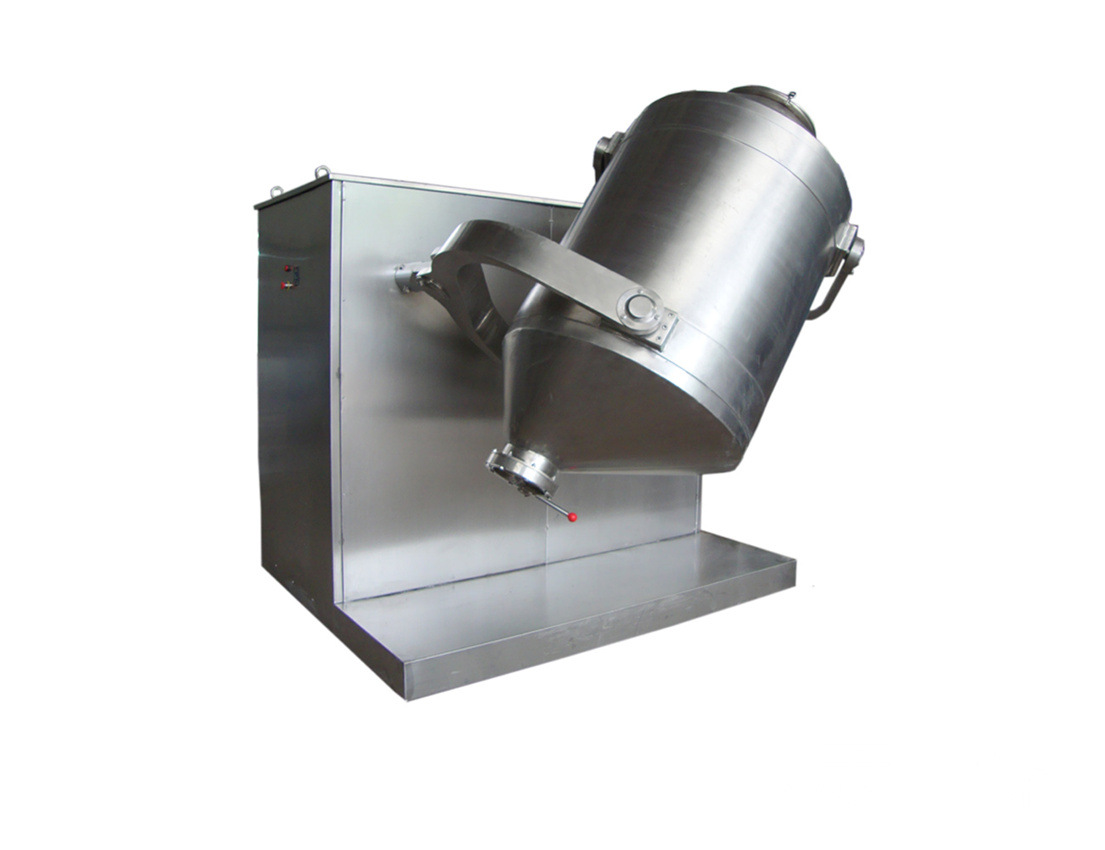

SYH Series Three Dimensional Mixer
Applications:
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 99.9%. The machine is the desired product in various mixers at present. The barrel material charge rate is big. Maximum rate can be up to 90%(the common mixer has only 40% charge rate). It is high in efficiency and short in the mixing time. The barrel uses the curve connection. The barrel has passed the fine polish treatment. The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science of technology institutes.
Features:
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensional and complex movements along the barrel body so as to fulfil the various movements of the materials. Through the dissemination, gathering, adding other matter, the aim for the uniform mixing can be gained.
Technical Parameters:
typeSYH-5SYH-15SYH-50SYH-100SYH-200SYH-400SYH-600SYH-800SYH-1000SYH-1200SYH-1500SYH-2000
material barrel volume(L)515501002004006008001000120015002000
Max. Material charge volume(L)4.513.54590180360540720900108013501800
Max. Material charge weight (kg)2.4-4.57.5-13.525-4550-90100-180200-360300-540400-750550-900600-1000800-13501100-1800
spindle rotation speed (r/min)0-200-200-200-200-150-150-130-100-100-90-90-8
Motor power(kW)0.250.371.11.52.245.57.511111518.5
size (mm) (LxWxH)600x
1000
x1000
800x
1200
x1000
1150x
1400
x1300
1250x
1800
x1550
1450x
2000
x1550
1650x
2200
x1550
1850x
2500
x1750
2100x
2650
x2000
2150x
2800
x2100
2000x
3000
x2260
2300x
3200
x2500
2500x
3600
x2800
weight (kg)10020030080012001200150017001800200024003000
